Stirring Dry Bath
Individualized versions and non-standard device sizes available on request
Replacement controller for STIRRING HOTPLATE and STIRRING DRYBATH (included in delivery)
High-performance magnetic stir bar
Sample probe for heatMIXcontrol controller
Aluminum inserts for STIRRING DRYBATH 15-100 and 15-250 to reduce bore diameter
PTFE-coated flexible stirring bar remover
Vertical mounting support for heatMIXcontrol
manual operator

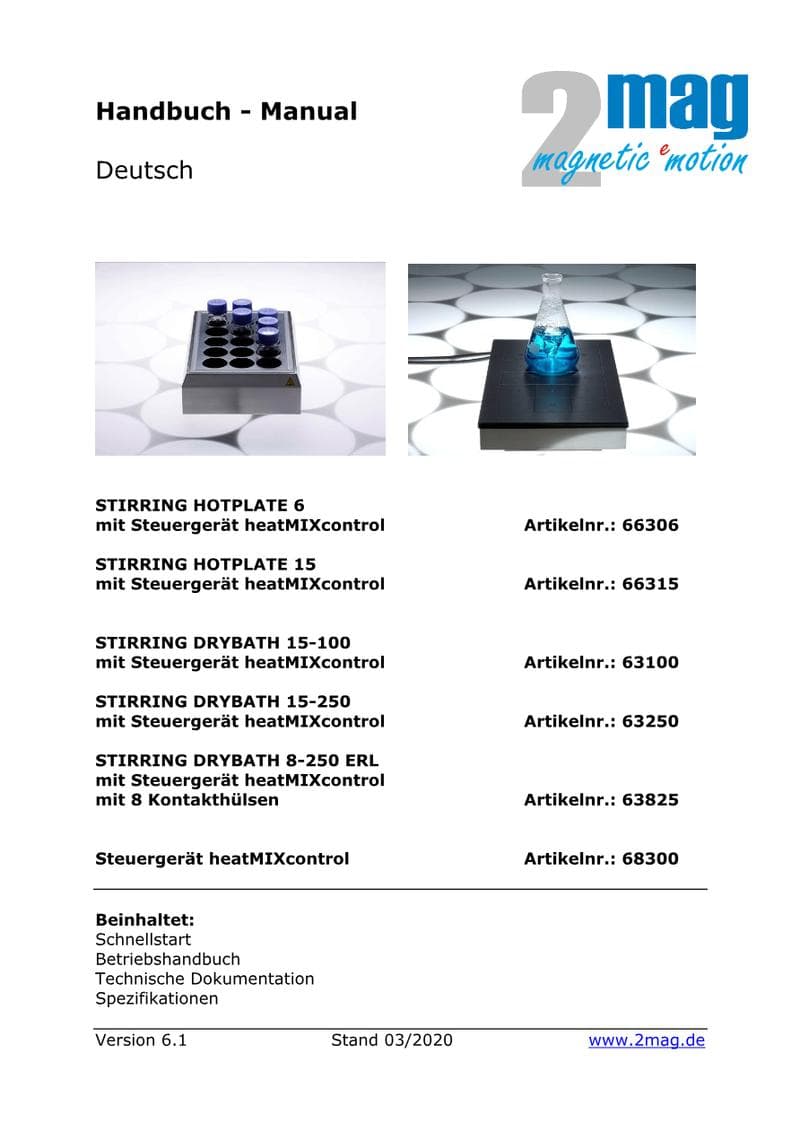

German operator manual for the 2mag STIRRING DRYBATH 15-100/15-250/8-250 ERL and STIRRING HOTPLATE 6/15 with heatMIXcontrol heating and stirring systems, version 6.1.
manual operator
English operator manual for the 2mag STIRRING DRYBATH 15-100/15-250/8-250 ERL and STIRRING HOTPLATE 6/15 with heatMIXcontrol heating and stirring systems, version 6.1.
2mag AG
Connect directly with 2mag AG to request pricing, samples and lead times for STIRRING DRYBATH 15-250.

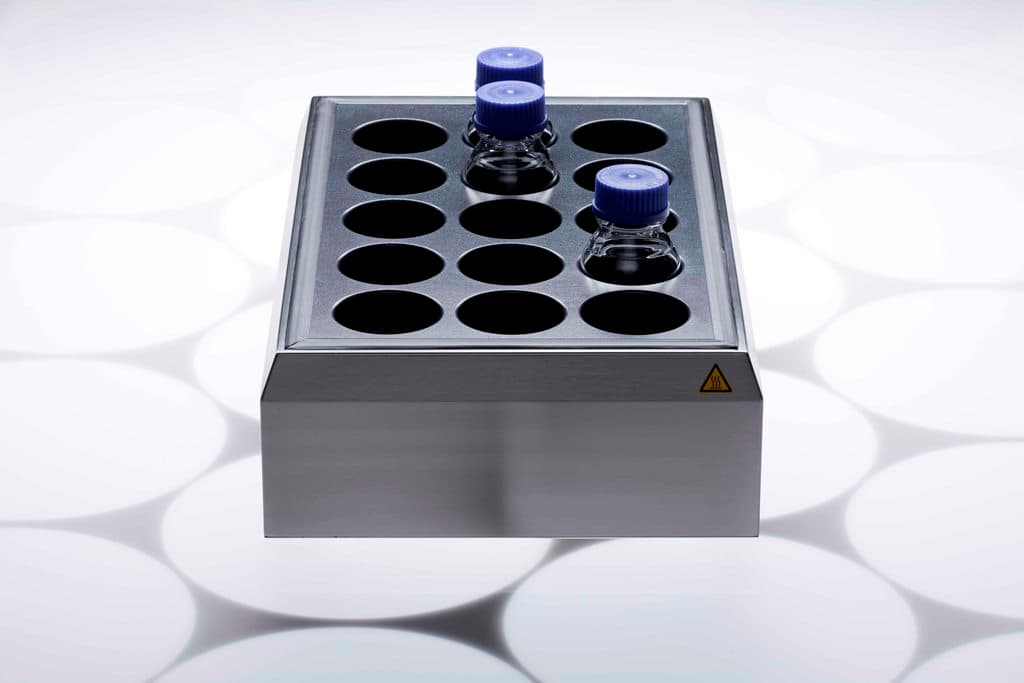

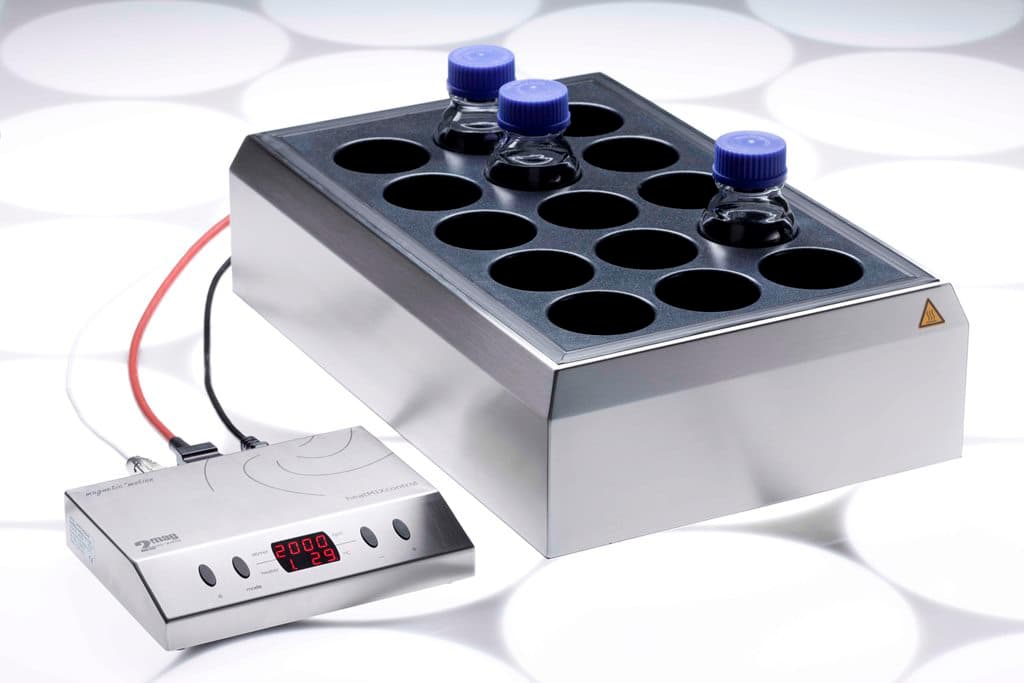

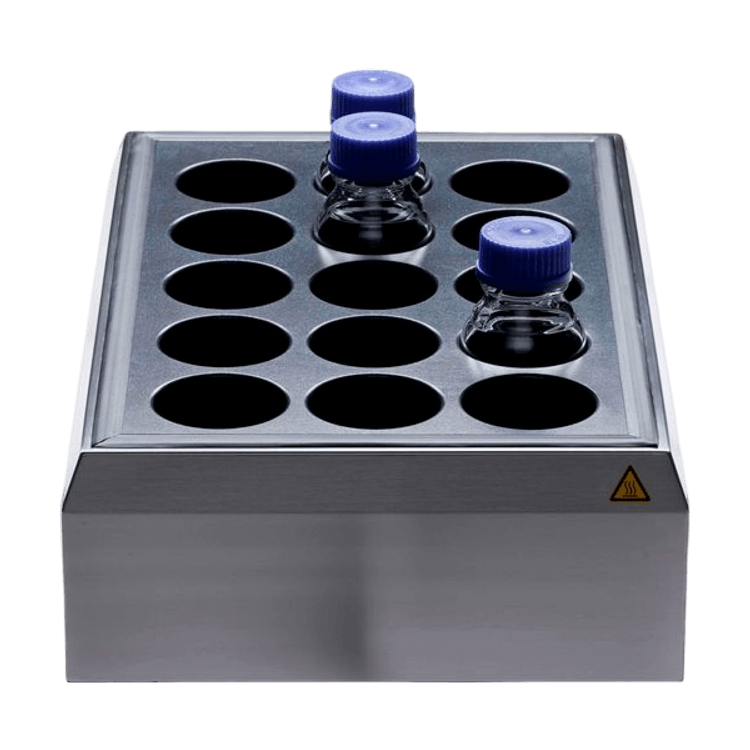

The 2mag STIRRING DRYBATH 15-250 is a 15-position stirring heated dry bath with 71.5 mm bore diameter and 78 mm depth, optimized for 250 ml lab bottles and 400 ml tall-form beakers. The solid one-piece PTFE-coated aluminum alloy heating block with specially insulated stainless steel frame provides energy-efficient, uniform heating to +200°C. The inductive 2mag magnetic drive delivers wear-free, synchronous stirring at 100-2,000 rpm. Includes heatMIXcontrol controller.
| Stirring positions | 15 |
|---|---|
| Position spacing | 84 mm |
| Block bore diameter / depth | Ø 71.5 / 78 mm |
| Stirring volume per position | 1-400 ml |
| Max stirring power | 40 W |
| Power adjustment | 10-100% (10 levels) |
| Temperature range | +40°C to +200°C |
| Speed range | 100-2,000 rpm |
| Operating voltage | 230 V |
| Max heating power at 230 V | 1,150 W |
| Dimensions (W×D×H) | 335 × 515 × 150 mm |
|---|
| Protection class | IP20 |
|---|
| Shipping weight (gross) | approx. 35 kg |
|---|
| Part number | 63250 |
|---|
