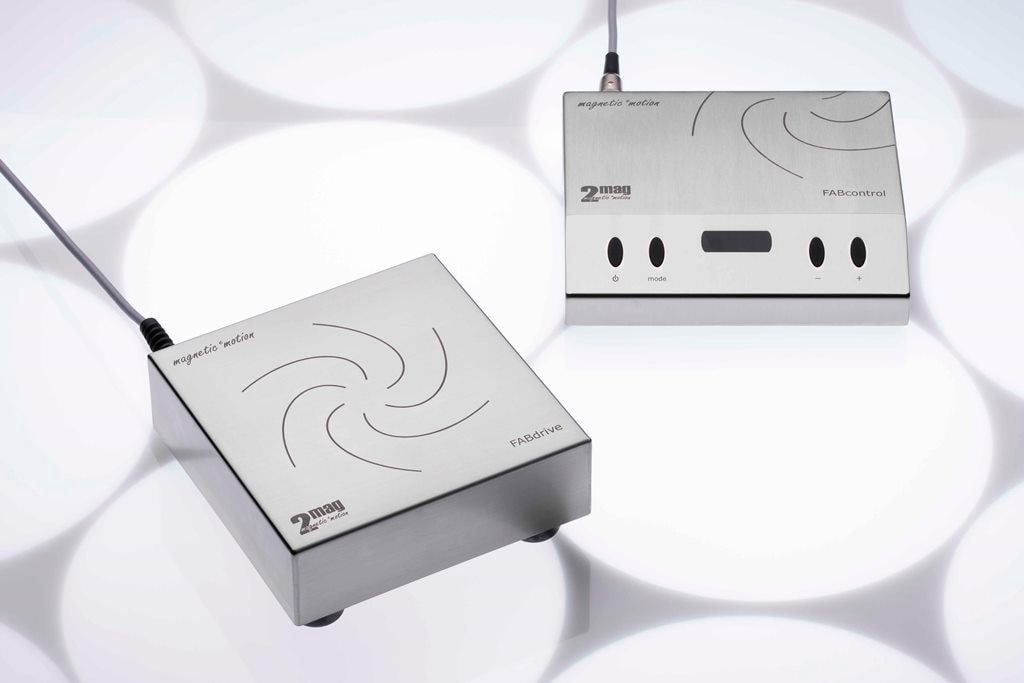

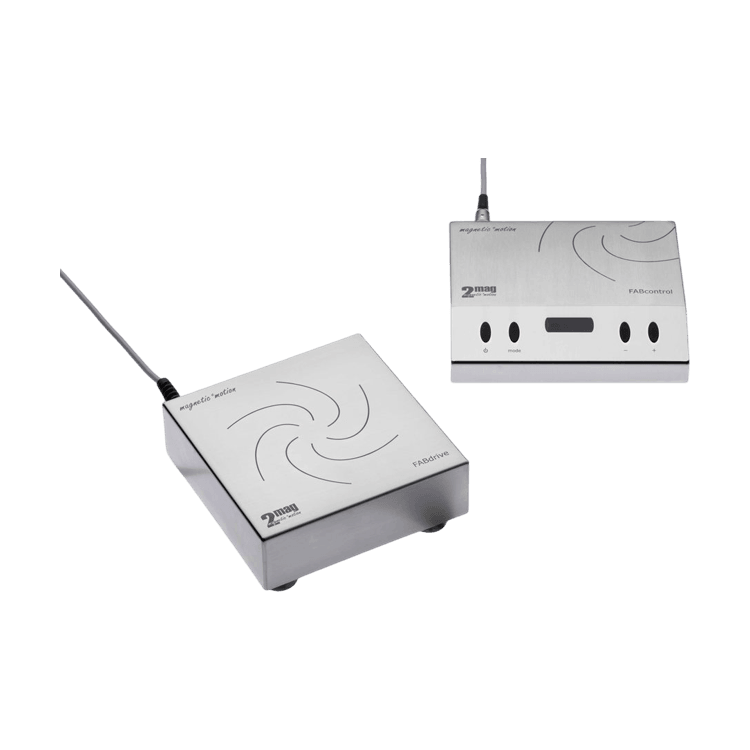

Name: FABdrive
Brand: 2mag AG

FABdrive | 2mag AG | mytradeloop

Overview

The FABdrive is an unbeatable powerful 2mag magnetic stirrer drive unit with very compact housing dimensions, capable of stirring up to 1,000 liters per position including highest-viscosity media. Its unbeatable powerful magnetic coupling enables force transmission over larger distances (up to 150 mm), through thick container bottoms, or double-walled vessels, making it ideal for integration into process engineering systems and industrial processes. The fully encapsulated sealed stainless steel housing (IP64) is maintenance-free and highly resistant. Requires FABcontrol controller (ordered separately). Custom versions and non-standard sizes available on request. Developed and Made in Germany with a 3-year warranty.

Up to 1.000 l stirring volume
Compact housing 18 x 18 cm
Highest viscosity media
Industrial process integration

Contact manufacturer View catalog

Product highlights

Stirring volume up to 1,000 liters per station; suitable for highest-viscosity media
Unbeatable powerful magnetic coupling for force transmission over larger distances (<150 mm), thick container bottoms, or double-walled vessels
Maintenance-free 2mag motor drive with speed range 80-990 rpm
100 W maximum stirring power
Fully encapsulated sealed stainless steel housing, IP64
Very compact housing: 18 x 18 cm footprint
Ideal for integration into process engineering systems and industrial processes
Requires FABcontrol controller (ordered separately)
Custom versions and non-standard sizes available on request
3-year warranty; Developed and Made in Germany

Product details

Type	FABdrive
Stirring positions	1
Stirring volume per position	1-1,000 L
Stirring power (max.)	100 W
Speed range	80-990 rpm
Housing material	Stainless steel
Operating temperature	-10 to +50 °C (at 95% relative humidity)
Operating voltage (max.)	24 VDC
Dimensions (W x D x H)	180 x 180 x 75 mm
Protection class	IP64

Classification

Material
Applications
Display
Type
Portability
Power Source

Competitive advantages

Competitive Advantage

Handles stirring volumes up to 1,000 liters: the highest capacity in the 2mag industrial stirrer range
Very compact footprint (18 x 18 cm) despite 100 W power output, enabling installation in space-constrained industrial setups
Capable of force transmission over distances up to 150 mm, suitable for very thick container bottoms or double-walled vessels
Designed specifically for integration into process engineering systems and industrial processes
Individualized versions and non-standard sizes available on request

FABdrive

Accessories

FABcontrol

ASTEROID 70

Stirring bar remover XL

Extension cord for MAXdrive/FABdrive

SATELLITE 140

fabFRAME

Documents

Bedienungsanleitung 2mag MAXdrive / FABdrive mit MAXcontrol / FABcontrol V6.1 (DE)

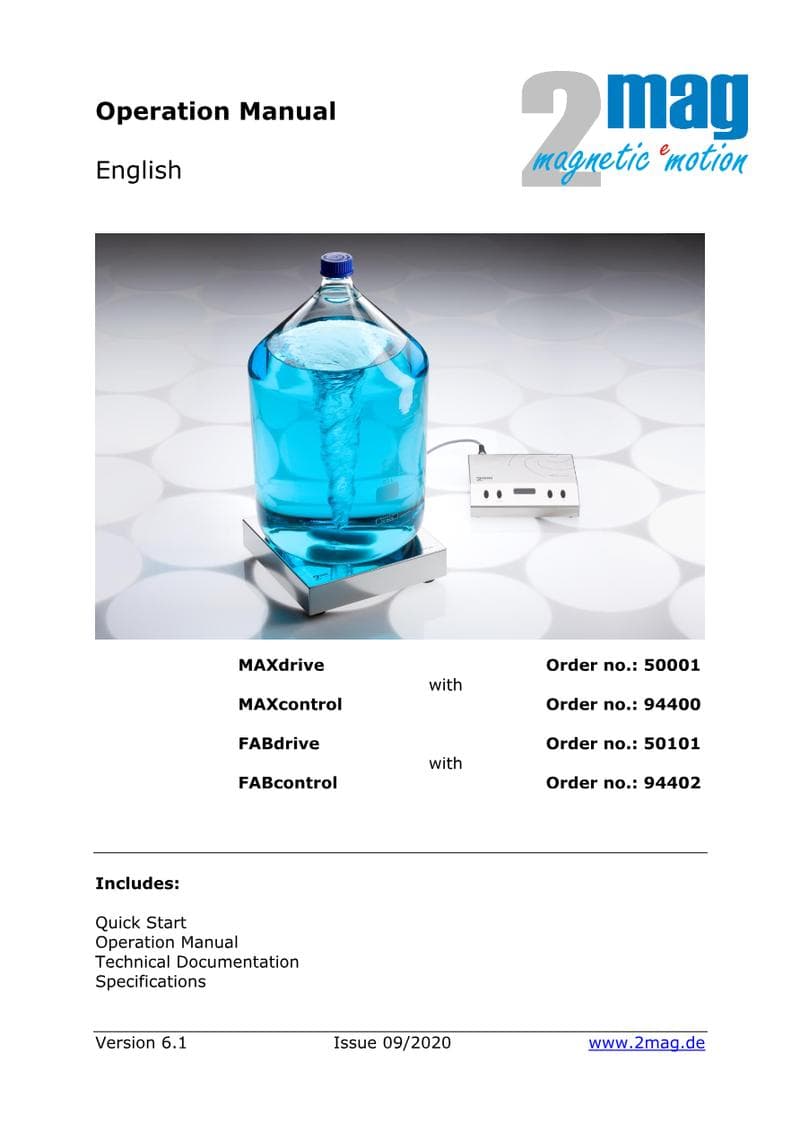

2mag MAXdrive / FABdrive with MAXcontrol / FABcontrol Operator Manual V6.1 (EN)
