Stirring Hotplate
STIRRING HOTPLATE 15
- Wear free
- Maintenance free
2mag MIXcontrol Control Units
Magnetic Stirrer Control Units
Variants
Options
Interface options
RS232 · 0-10 V analog · 4-20 mA analog · LADS interface
Magnetic Stirrer Control Units
RS232 · 0-10 V analog · 4-20 mA analog · LADS interface

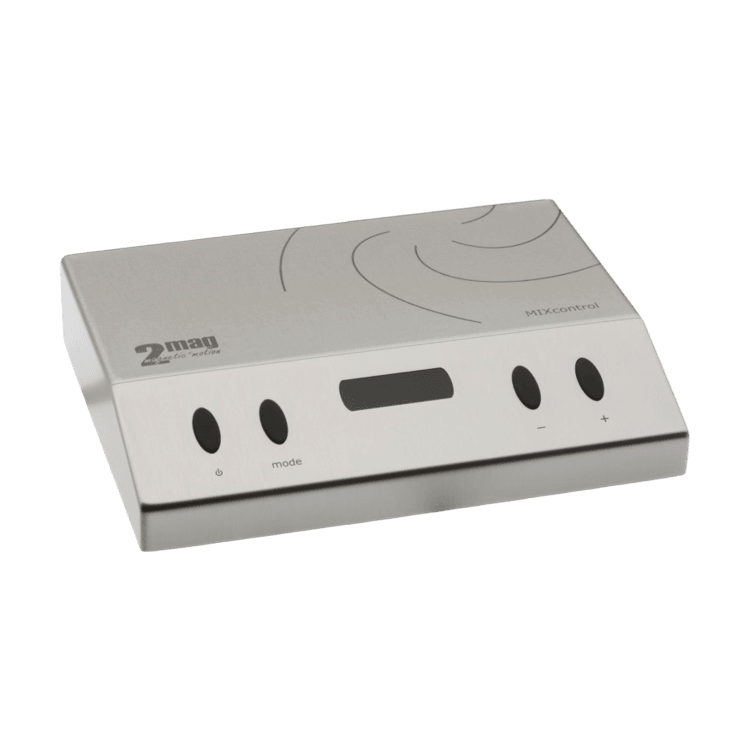

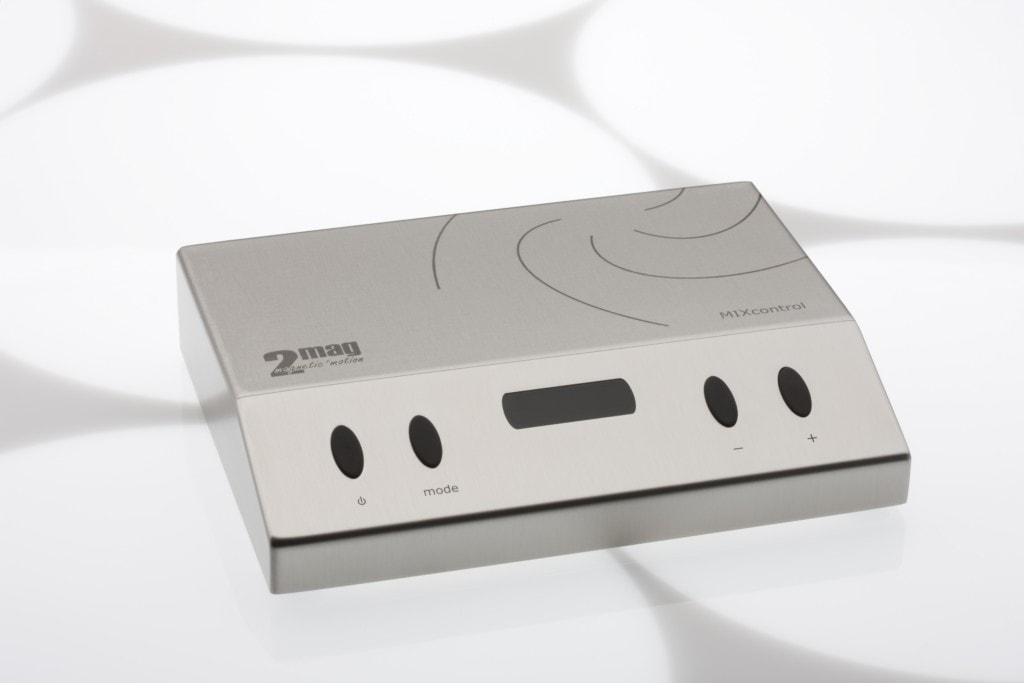

2mag MIXcontrol control units are purpose-built controllers for 2mag magnetic stirring drives, engineered for powerful and reliable continuous operation. The family spans compact bench-top units, DIN rail-mountable versions, stackable multi-channel models, industrial-grade XL/MAX/FAB controllers, ATEX-rated explosion-protected units, sterile models, and a combined heat-and-stir controller, covering a broad range of laboratory and process stirring applications. Optional interfaces including RS232, 0-10 V, 4-20 mA, and LADS are available across the range.
| Compatible drive families | MIXdrive, bioMIXdrive, MIXdrive MTP, MIXdrive 1 XL, MAXdrive, FABdrive, atexMIXdrive, steriMIXdrive, heat stirring drives |
|---|---|
| Optional interfaces | RS232, 0-10 V, 4-20 mA, LADS |
| Variant | Max speed | Connections | Power output | Compatible drive | Mounting | Stackable | Speed control | Operation mode | Alarm function | Ex protection | Function | Max temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIXcontrol ecoCompact control unit for MIXdrive with 1 connection, 10 W output and up to 1,200 rpm. | 1,200 rpm | 1 | 10 W | MIXdrive | — | — | — | — | — | — | — | — |
| MIXcontrol eco DINrailDIN rail-mountable control unit for MIXdrive with 1 connection, designed for control cabinet installation. | — | 1 | — | MIXdrive | DIN rail / control cabinet | — | — | — | — | — | — | — |
| MIXcontrol 20Control unit for MIXdrive with 1 connection, 20 W output and up to 1,600 rpm. | 1,600 rpm | 1 | 20 W | MIXdrive | — | — | — | — | — | — | — | — |
| MIXcontrol 40Dual-connection control unit for MIXdrive with 40 W output and up to 2,000 rpm. | 2,000 rpm | 2 | 40 W | MIXdrive | — | — | — | — | — | — | — | — |
| bioMIXcontrolControl unit for bioMIXdrive with 40 W output and up to 250 rpm. | 250 rpm | — | 40 W | bioMIXdrive | — | — | — | — | — | — | — | — |
| bioMIXcontrol SStackable control unit for bioMIXdrive with 40 W output and up to 250 rpm. | 250 rpm | — | 40 W | bioMIXdrive | — | Yes | — | — | — | — | — | — |
| bioMIXcontrol 4MSMulti-station controller for up to 4 bioMIXdrive 1 units with individual speed control up to 250 rpm. | 250 rpm | — | — | 4x bioMIXdrive 1 | — | — | Individual per channel | — | — | — | — | — |
| MIXcontrol MTPControl unit for MIXdrive MTP with 10 W output and up to 2,000 rpm. | 2,000 rpm | — | 10 W | MIXdrive MTP | — | — | — | — | — | — | — | — |
| MIXcontrol XLIndustrial control unit for MIXdrive 1 XL with 40 W output, interval operation and up to 2,000 rpm. | 2,000 rpm | — | 40 W | MIXdrive 1 XL | — | — | — | Interval | — | — | — | — |
| MAXcontrolIndustrial control unit for MAXdrive with 60 W output and up to 1,200 rpm. | 1,200 rpm | — | 60 W | MAXdrive | — | — | — | — | — | — | — | — |
| FABcontrolIndustrial control unit for FABdrive with 100 W output, alarm function and up to 990 rpm. | 990 rpm | — | 100 W | FABdrive | — | — | — | — | Yes | — | — | — |
| atexMIXcontrolATEX explosion-protected control unit for atexMIXdrive, Zone 1 rated, up to 2,000 rpm. | 2,000 rpm | — | — | atexMIXdrive | — | — | — | — | — | Zone 1 | — | — |
| atexMIXcontrol cleanroomATEX explosion-protected cleanroom control unit for atexMIXdrive, Zone 2 rated, up to 2,000 rpm. | 2,000 rpm | — | — | atexMIXdrive | — | — | — | — | — | Zone 2 | — | — |
| steriMIXcontrolControl unit for steriMIXdrive with interval operation and up to 1,200 rpm. | 1,200 rpm | — | — | steriMIXdrive | — | — | — | Interval | — | — | — | — |
| heatMIXcontrolCombined heating and stirring control unit; heats up to 200 °C and stirs up to 2,000 rpm. | 2,000 rpm | — | — | — | — | — | — | — | — | — | Heating + Stirring | 200 °C |
2mag AG
Connect directly with 2mag AG to request pricing, samples and lead times for 2mag MIXcontrol Control Units.
