2mag AG
Connect directly with 2mag AG to request pricing, samples and lead times for cuvetteMIXdrive 1.

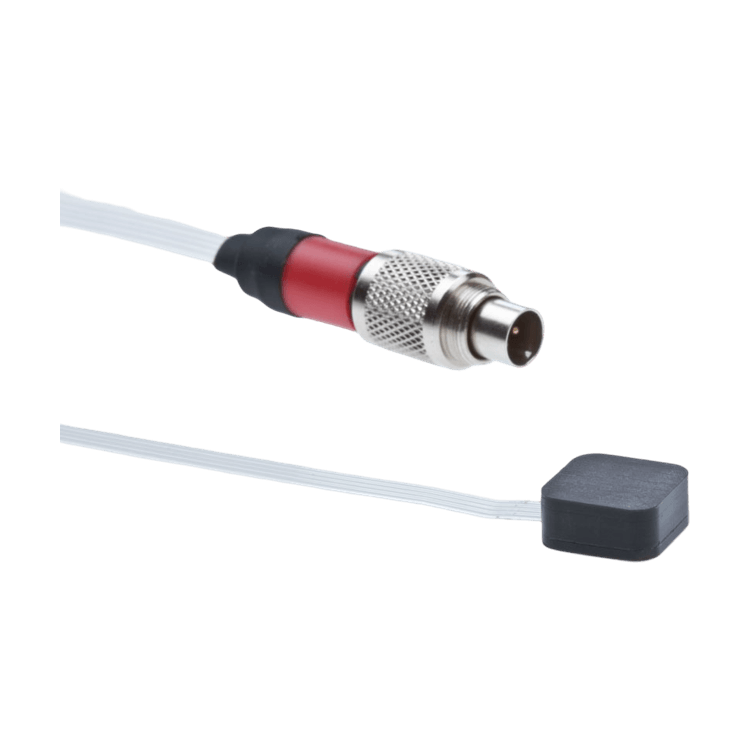

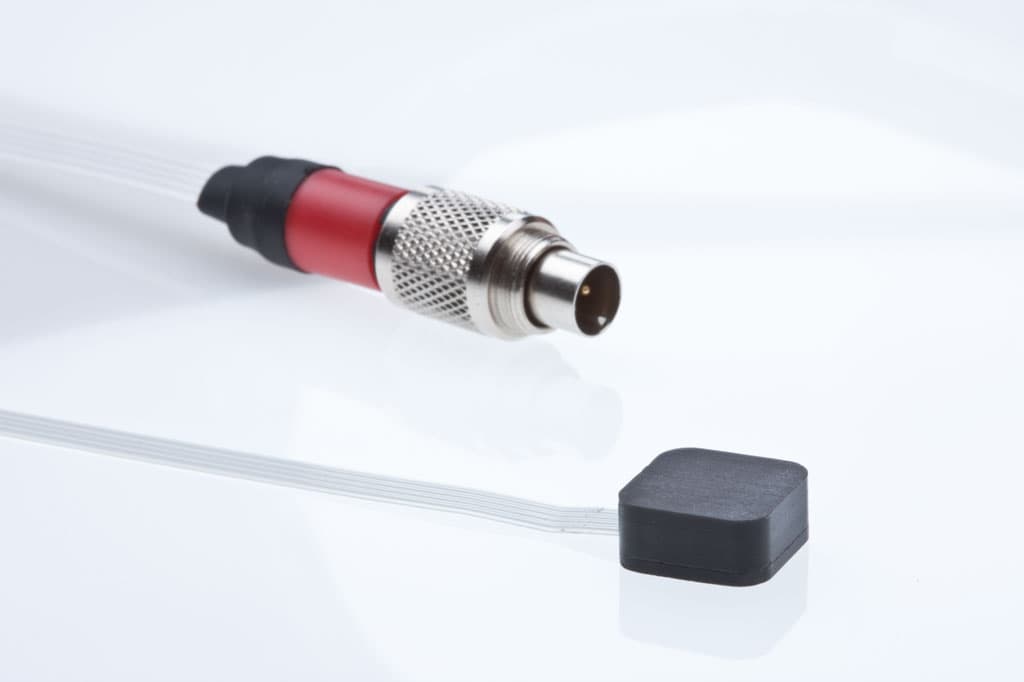

The cuvetteMIXdrive 1 is a miniaturised, wear-free 2mag single-position magnetic stirrer drive optimised for stirring volumes up to 25 ml, ideal for integration into photometers and similar analytical instruments. The fully potted, hermetically sealed IP68 PUR housing is water-, dust-, and germ-proof and submersible up to +50 °C. Only a Basic version is available; HT version is not available. Controller must be ordered separately.
| Stirring positions | 1 |
|---|---|
| Stirring volume per position | 1-25 ml |
| Max. stirring power | 10 W |
| Housing material | PUR |
| Operating temperature: in air | -10 °C to +50 °C |
| Operating temperature: in water | up to +50 °C |
| Operating voltage (max.) | 48 VDC |

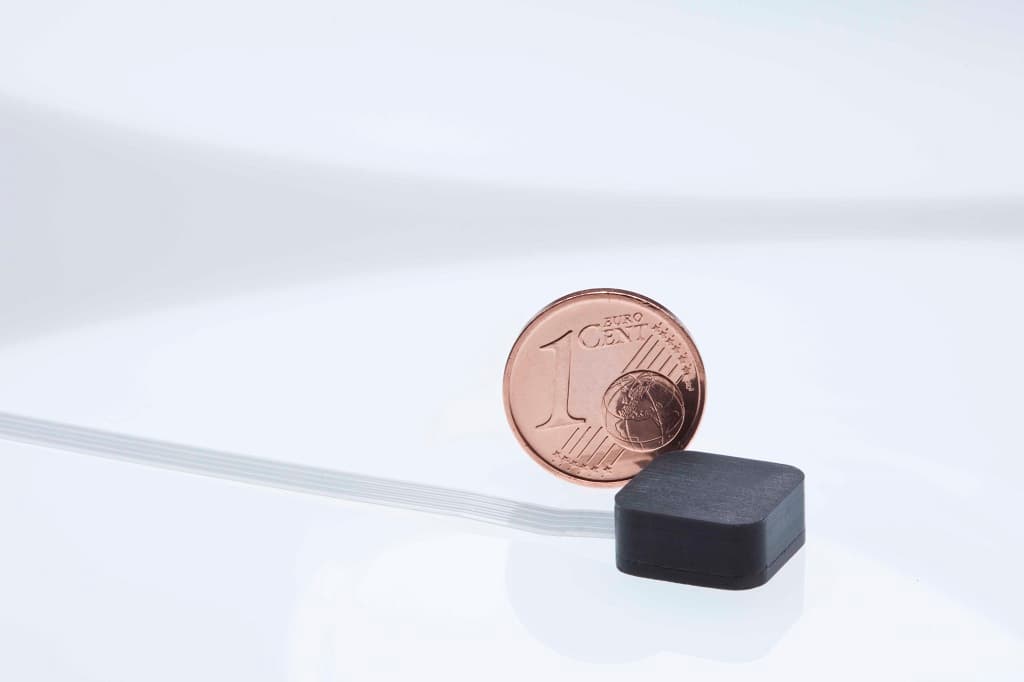

| Dimensions (W x D x H) | 12.5 x 12.5 x 6 mm |
| Protection rating | IP68 |
| Shipping weight (gross) | approx. 0.14 kg |
| Part number | 40400 |
|---|
