What is the difference between the standard and rec-series vacuum splints?

Standard splints (Bein, Ellenbogen, Unterarm) are made entirely from soft PAX-Flex Tec MP material and can be 3D pre-formed by connecting the lower clip buckles. Rec-series splints have a robust PAX-Tec Plus MP underside for durability and a soft PAX-Flex Tec MP patient side; they use click-buckle (Steckschnallen) fixation straps for faster patient securing.

Can fixation straps be replaced?

Yes. All PAX vacuum splints feature replaceable fixation straps. A dedicated replacement strap set for the rec-series (Art. 165121110) is available.

Which pump should be used with the vacuum splints?

Both the PAX Hand Pump (Art. 270890003) and the PAX Foot Pump (Art. 273130003) are compatible with the vacuum splints.

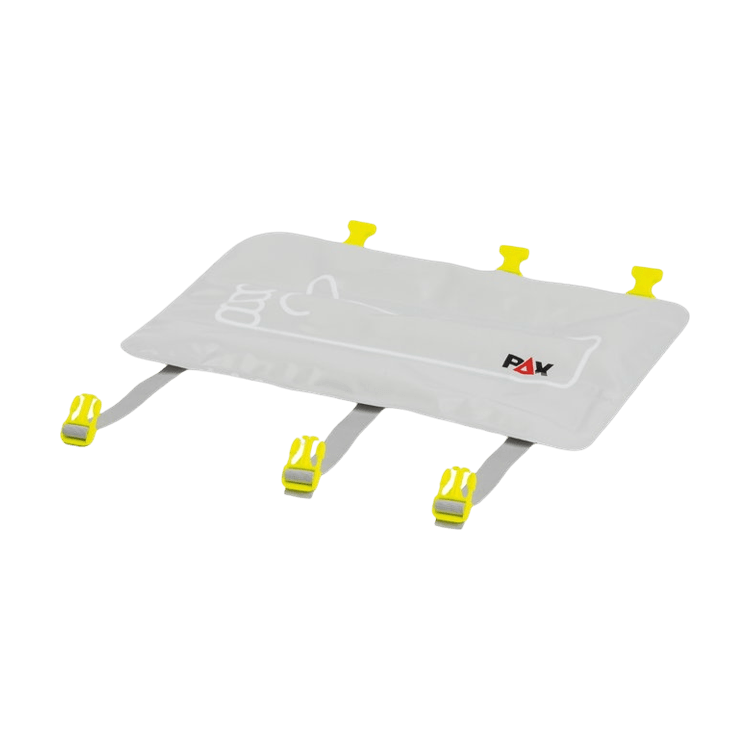

Vacuum Splint

Name: Vacuum Splint
Brand: PAX-Bags (X-CEN-TEK GmbH & Co. KG)

Vacuum Splint | PAX-Bags (X-CEN-TEK GmbH & Co. KG) | mytradeloop

Resumen

The PAX Vacuum Splint range provides pre-hospital limb immobilization for arm, forearm, elbow, and leg. Two series are available: the standard series (Ellenbogen/Bein/Unterarm) made entirely from soft PAX-Flex Tec MP material, and the reinforced rec-series (rec-Arm/rec-Bein/rec-Gelenk) with a robust PAX-Tec Plus MP underside and soft PAX-Flex Tec MP patient side for faster anatomical contouring. Standard splints can be 3D pre-formed by connecting lower buckles before application. Replaceable fixation straps with click buckles secure the splint to the patient. All individual splints and sets are medical devices compliant with EU MDR 2017/745. Both a standard set and a rec-series set (each including a transport bag) are available for space-efficient storage in the ambulance.

Mdr 2017.745 certified
Pax flex tec mp patient side material
3d pre formable before application
Replaceable fixation straps
Color coded sets available
Rec series pax tec plus mp underside for durability
Individual labeling option
Set variants with transport bag

Aspectos destacados del producto

PAX-Flex Tec MP material on patient-facing side for comfort and easy contouring
Standard series: 3D pre-forming via closure of lower clip buckles before application
Replaceable fixation straps with click buckles
Rec-series underside: PAX-Tec Plus MP for durability and shape stability
Rec-series: fixation straps with click buckles (Steckschnallen) for faster securing
Set variants (standard set and rec-set) include transport bag
EU Declaration of Conformity and instructions for use available as PDF
Optional individual labeling (text, logo, layout) on applicable models

Detalles del producto

Denominación del fabricante	PAX Vacuum Splint
Uso	Medical device: EU MDR 2017/745, Class I; limb immobilization

Ventajas competitivas

Competitive Advantage

Rec-series dual-material construction: robust PAX-Tec Plus MP underside + soft PAX-Flex Tec MP patient side for rapid anatomical adaptation
3D pre-forming by connecting lower buckles prior to application: no separate forming tools required
Replaceable fixation straps allow cost-effective maintenance
Set variants include a compact transport bag for space-saving ambulance storage
Individual custom labeling available on rec-series and standard elbow/forearm splints
Both series certified under EU MDR 2017/745

Regulatory Certification

1 de 4

Variante	Color	Model	Weight	Material	Dimensions	Body region	Configuration	Catalogue number	Dimensions (transport bag)	Weight (transport bag only)
PAX Vacuum Splint LegStandard leg vacuum splint; 3D pre-formable via lower buckles; replaceable fixation straps; PAX-Flex Tec MP; 1.05 kg.	Grey	Standard	1.05 kg	PAX-Flex Tec MP	97 cm x 66 cm x 5 cm	Leg	3D pre-forming via lower clip buckles; replaceable fixation straps	155545210	—	—
PAX Vacuum Splint ElbowStandard elbow vacuum splint; 3D pre-formable; replaceable fixation straps; PAX-Flex Tec MP; 0.50 kg.	Grey	Standard	0.50 kg	PAX-Flex Tec MP	69 cm x 52 cm x 3 cm	Elbow	3D pre-forming via lower click buckles; replaceable fixation straps	155555210	—	—
PAX Vacuum Splint ForearmStandard forearm vacuum splint; replaceable fixation straps; PAX-Flex Tec MP; 0.35 kg.	Grey	Standard	0.35 kg	PAX-Flex Tec MP	50 cm x 32 cm x 3 cm	Forearm	Replaceable fixation straps	155535210	—	—
PAX Vacuum Splint rec ArmReinforced rec-series arm splint; PAX-Tec Plus MP underside + PAX-Flex Tec MP patient side; click-buckle fixation straps; 0.60 kg.	Grey	rec	0.60 kg	—	57 cm x 47 cm	Arm	Simple form for fast arm application; PAX-Tec Plus MP underside; PAX-Flex Tec MP patient side; fixation straps with click buckles	162025210	—	—
PAX Vacuum Splint rec LegReinforced rec-series leg splint; PAX-Tec Plus MP underside + PAX-Flex Tec MP patient side; click-buckle fixation straps; 1.25 kg.	Grey	rec	1.25 kg	—	108 cm x 45.5 cm	Leg	PAX-Tec Plus MP underside; PAX-Flex Tec MP patient side; rapid anatomical adaptation; fixation straps with click buckles	162265210	—	—
PAX Vacuum Splint rec JointReinforced rec-series joint splint; PAX-Tec Plus MP underside + PAX-Flex Tec MP patient side; click-buckle fixation straps; 0.60 kg.	Grey	rec	0.60 kg	—	65 cm x 29/46 cm	Joint	Simple form for fast application; PAX-Tec Plus MP underside; PAX-Flex Tec MP patient side; fixation straps with click buckles	162035210	—	—
PAX Vacuum Splints rec-SetSet of rec-series splints (rec-Joint, rec-Leg, rec-Arm) with PAX transport bag; total set weight 2.90 kg.	Grey	rec	—	PAX-Flex Tec MP	—	Arm + Leg + Joint	Set including: rec-Gelenk (162035210), rec-Arm (162025210), rec-Bein (162265210), PAX transport bag for vacuum splints (157490410); set weight 2.90 kg	162400000S	50 cm x 35 cm x 14 cm	1.83 kg
PAX Vacuum Splints SetStandard set of Elbow, Leg, and Forearm vacuum splints with transport bag; total set weight 2.30 kg.	Grey	Standard	—	PAX-Flex Tec MP	—	Elbow + Leg + Forearm	Set including: Ellenbogen (155555210), Bein (155545210), Unterarm (155535210), PAX transport bag for vacuum splints; total set weight 2.30 kg	157500000S	—	—

Variantes

Opciones y accesorios

Individual labeling

PAX Vacuum Pump Hand (270890003)

PAX Vacuum Pump Foot (273130003)

PAX Fixation Strap Set for rec-series Vacuum Splint (165121110)

PAX Transport Bag for Vacuum Splints (257490401)

PAX Vacuum Repair Sticker (157510000)

PAX Replacement Screw Valve (26868)

Documentos

Instructions for Use: PAX Vacuum Splints

CE Declaration of Conformity: PAX Vacuum Splint (Leg)

CE Declaration of Conformity: PAX Vacuum Splint (Elbow)

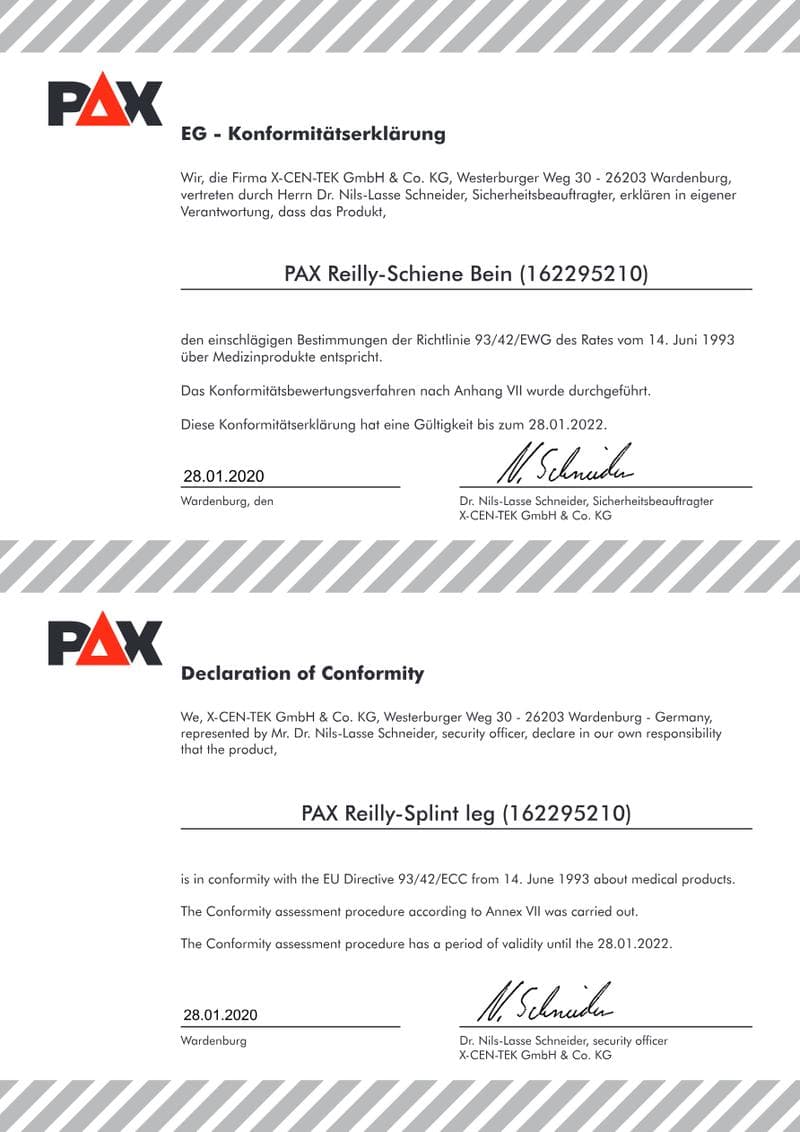

CE Declaration of Conformity: PAX Reilly Vacuum Splint (Leg)

PAX Vacuum Products Catalogue
