Stirring Dry Bath
Individualized versions and non-standard device sizes available on request
Replacement controller for STIRRING HOTPLATE and STIRRING DRYBATH (included in delivery)
High-performance magnetic stir bar
Sample probe for heatMIXcontrol controller
PTFE-coated flexible stirring bar remover
Vertical mounting support for heatMIXcontrol
manual operator
German operator manual for the 2mag STIRRING DRYBATH 15-100/15-250/8-250 ERL and STIRRING HOTPLATE 6/15 with heatMIXcontrol heating and stirring systems, version 6.1.
manual operator
English operator manual for the 2mag STIRRING DRYBATH 15-100/15-250/8-250 ERL and STIRRING HOTPLATE 6/15 with heatMIXcontrol heating and stirring systems, version 6.1.
2mag AG
Conecte directamente con 2mag AG para solicitar precios, muestras y plazos de entrega de STIRRING DRYBATH 8-250 ERL.

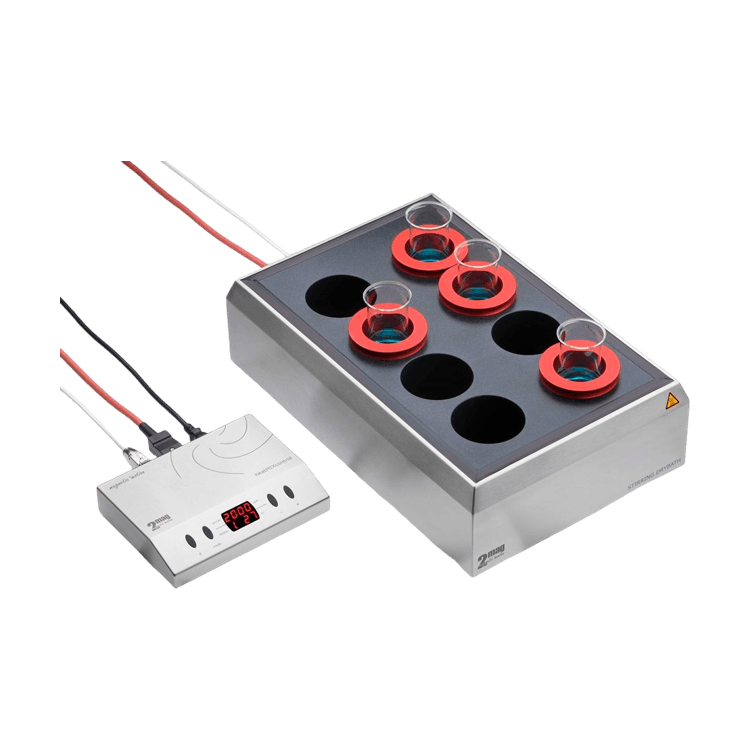

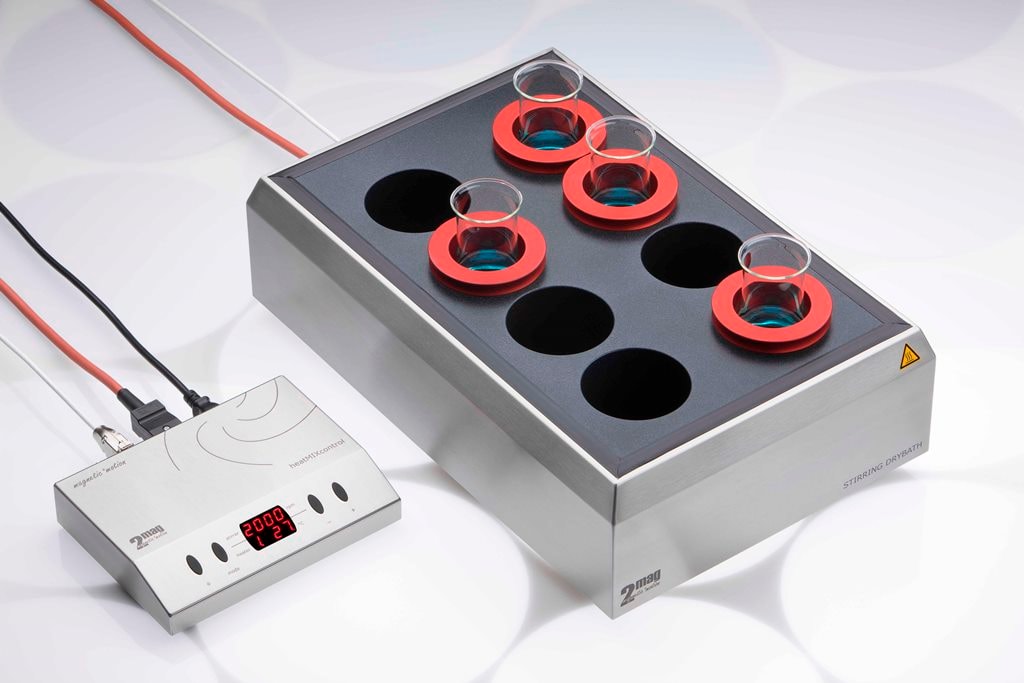

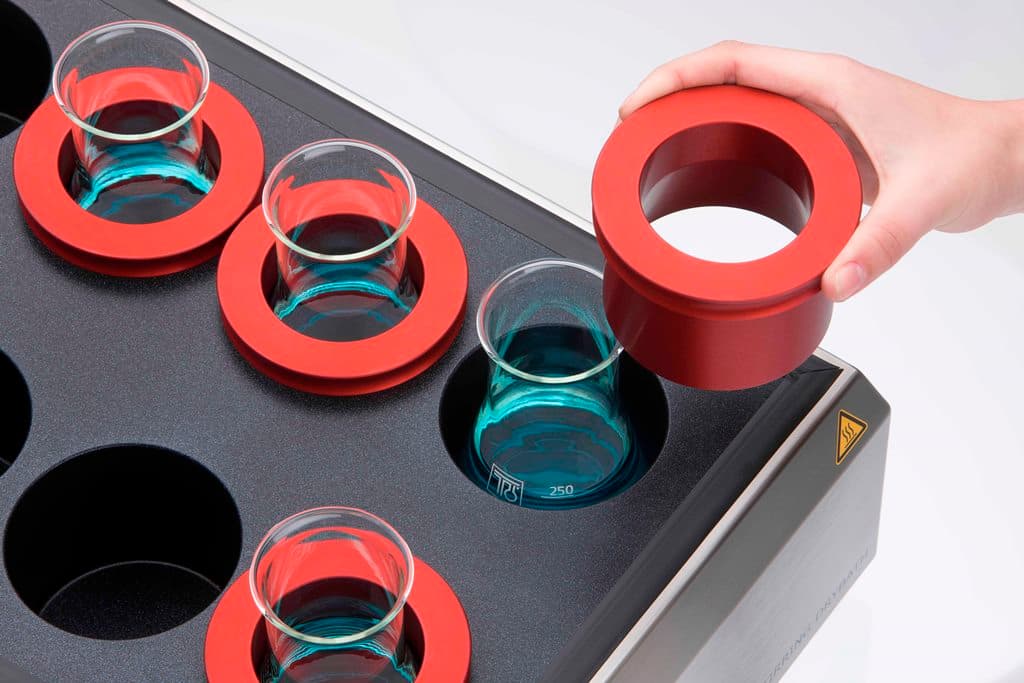

The 2mag STIRRING DRYBATH 8-250 ERL is an 8-position stirring heated dry bath with 87.2 mm bore diameter and 78 mm depth, specifically optimized for 250 ml Erlenmeyer flasks. Contact sleeves ensure optimal heat transfer. The solid one-piece PTFE-coated aluminum alloy heating block with insulated stainless steel frame provides uniform heating to +200°C. Includes heatMIXcontrol controller and 8 reducing sleeves for Erlenmeyer flasks.
| Stirring positions | 8 |
|---|---|
| Position spacing | 100 / 140 mm |
| Block bore diameter / depth | Ø 87.2 / 78 mm |
| Stirring volume per position | 1-250 ml |
| Max stirring power | 40 W |
| Power adjustment | 10-100% (10 levels) |
| Temperature range | +40°C to +200°C |
| Speed range | 100-2,000 rpm |
| Operating voltage | 230 V |
| Max heating power at 230 V | 1,150 W |
| Dimensions (W×D×H) | 335 × 515 × 150 mm |
| Protection class | IP20 |
| Shipping weight (gross) | approx. 40 kg |
| Part number | 63825 |
