Cost-optimized controller for medium and small volumes (sold separately)
Universal controller for MIXdrive MTP stirring drives (sold separately)
Extension cord for remote-controlled MIXdrive stirring drives
manual operator

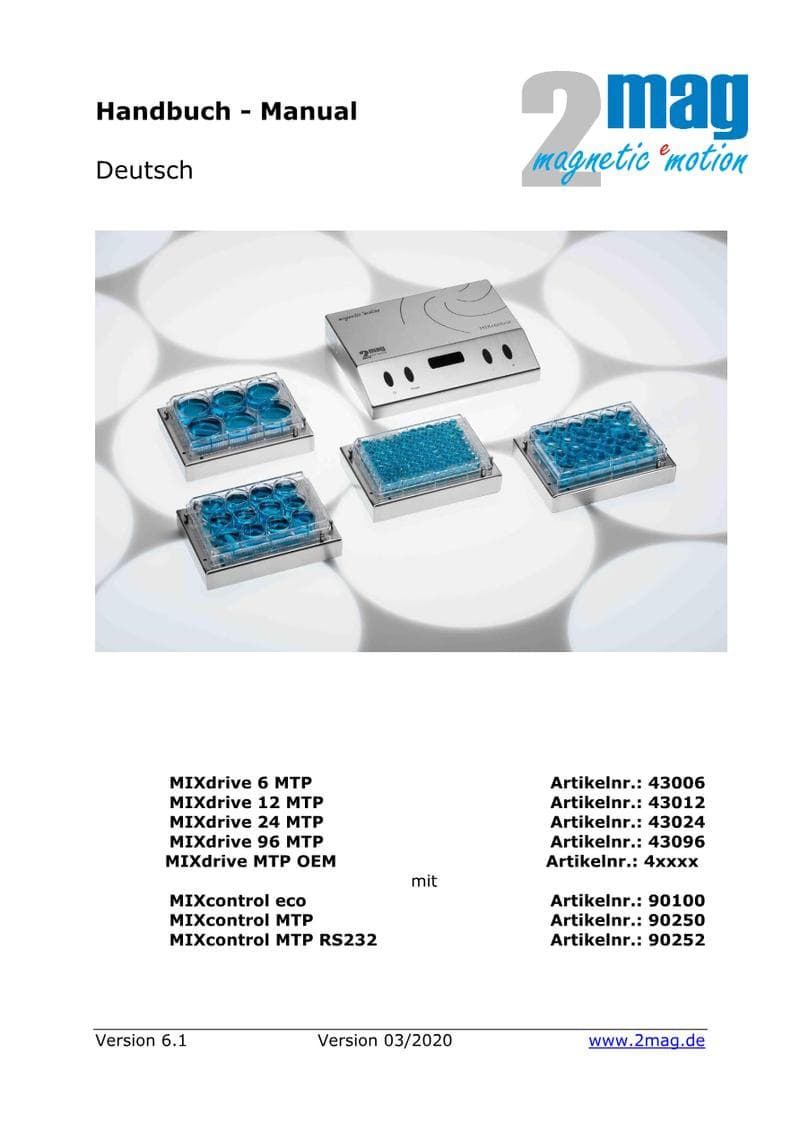

German operator manual for the 2mag MIXdrive 6/12/24/96 MTP microtiter plate stirrer series with MIXcontrol MTP, version 6.1.
manual operator

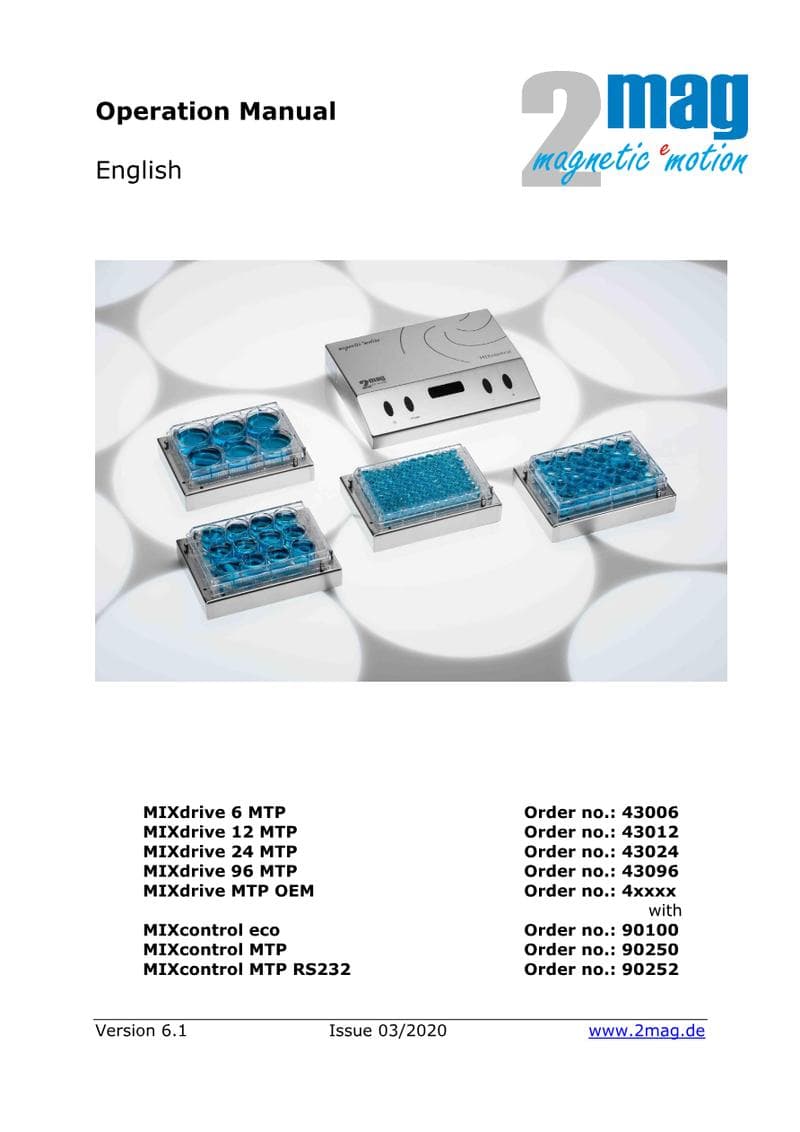

English operator manual for the 2mag MIXdrive 6/12/24/96 MTP microtiter plate stirrer series with MIXcontrol MTP, version 6.1.
2mag AG
Conecte directamente con 2mag AG para solicitar precios, muestras y plazos de entrega de MIXdrive 96 MTP.

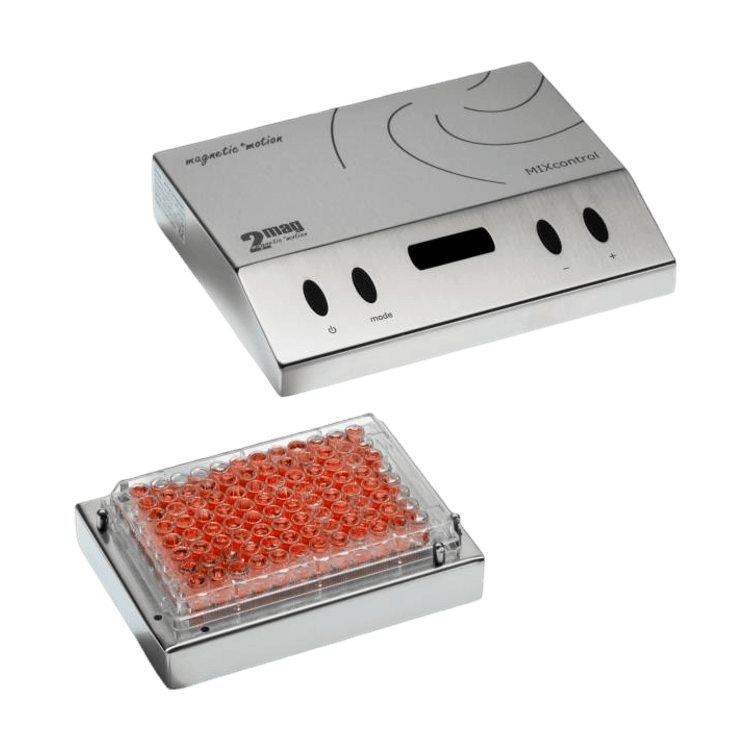

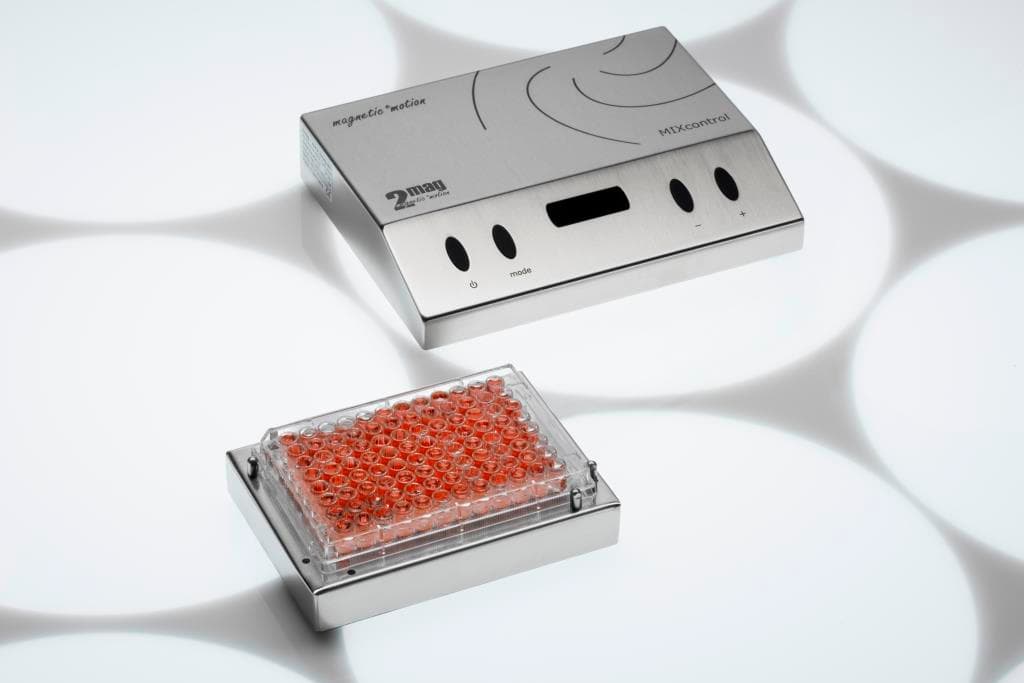

The MIXdrive 96 MTP is an ultra-flat, wear-free 2mag magnetic stirrer with 96 stirring positions optimized for use with 96-well microtiter plates. Featuring a 100% induction-driven, synchronously rotating mechanism, it provides powerful and jerk-free mixing even at low speeds. The fully potted, hermetically sealed stainless steel housing achieves IP68 protection, making it waterproof, dustproof, and germ-proof. Submersible in water or oil baths up to +50°C and suitable for use in CO2 incubators and ovens. Controller must be ordered separately.
| Number of stirring positions | 96 (8×12) |
|---|---|
| Stirring position spacing | 9 mm |
| Max. stirring volume per position | 0.5 ml |
| Max. stirring power | 10 W |
| Housing material | Stainless steel |
| Operating temperature (air) | -10 to +50 °C |
| Operating temperature (water) | up to +50 °C |
| Max. operating voltage | 48 VDC |
| Dimensions (W×D×H) | 140 x 102 x 26 mm |
| Protection class |
| IP68 |
| Shipping weight (gross) | approx. 1.3 kg |
|---|
| Part number | 43096 |
|---|
