Standard low-turbulence displacement flow · Differential flow (higher core velocity, lower peripheral velocity)
Single-layer laminar fabric · Mini-perforated plates
Standard sizes · Customized / project-specific sizes
spec sheet
Technical datasheet for the ADMECO double sealing system used in the recirculation/supply-air LTF ceilings: two sealing levels providing continuously verifiable, leak-free HEPA/H13 filter seals across the filter frame and entire frame structure.
ADMECO AG
Conecte directamente con ADMECO AG para solicitar precios, muestras y plazos de entrega de FFD Supply Air Ceiling.
Surface Filter Supply Air Ceiling (FFD/Flächenfilterdecke)

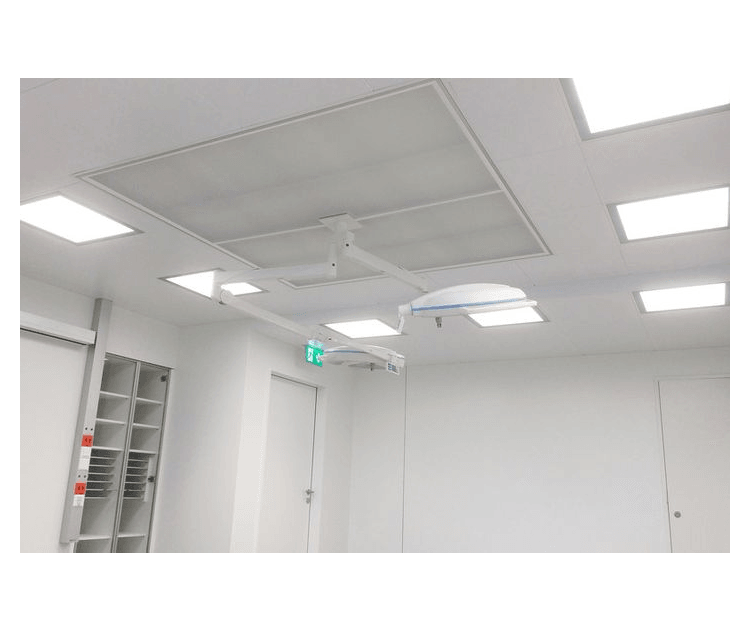

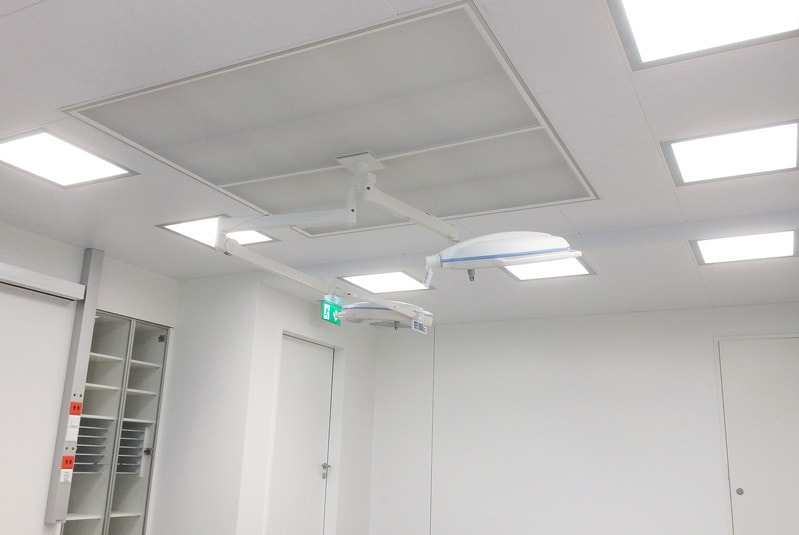

The ADMECO FFD Supply Air Ceiling (surface filter ceiling) is used where the centralized air conditioning plant generates sufficient airflow to supply a large outlet area without recirculation. Sterile air is blown uniformly at low turbulence across the entire HEPA filter surface into the operating theatre protection zone, covering the operating field, sterile team, patient drapes, and instrument tables. The standard installation height is 400 mm, with project-specific minimum heights down to 220 mm possible, giving maximum design freedom for duct connections. ADMECO offers a range of standard sizes as well as fully customized solutions.
| Uso | Operating theatre supply air ceiling |
|---|---|
| Standard installation height | 400 mm |
| Minimum installation height (project-specific) | 220 mm |
| Filter type | HEPA (surface filter / Flächenfilter) |
| Airflow type | Low-turbulence displacement flow (LTF/TAV) |
| Minimum LTF ceiling size for DIN 1946-4 compliance (example) | 3.20 x 3.20 m |
