Resumen

PAX carry sheets (Tragetücher) are multi-use patient transport sheets for confined-space rescue, staircase evacuation, and emergency patient transport. The range spans from a compact 270 g lightweight version to a bariatric XXL model rated to 400 kg, plus tactical variants and the advanced WOW RTS model with an integrated foldable aluminium support frame. All applicable variants are EU MDR 2017/745-certified medical devices complying with DIN EN 1865-1.

400 kg rated
Mdr certified
Tactical black
10 handles
Lightweight 270 g
Din en 1865.1

Contactar al fabricante Ver catálogo

Aspectos destacados del producto

Multiple carry handle loops for multi-rescuer handling
Reusable, cleanable, and disinfectable materials
DIN EN 1865-1 compliant across the range
MOLLE-compatible carry pouches on tactical/light variants
Anti-slip (Durchrutschsicherung) version prevents patient sliding
WOW RTS: adjustable foot pocket, internal patient handles, 10 outer handles, adjustable shoulder straps, max load 250 kg
XXL 400 kg: extra-wide handle loops for two-handed grip, Y-strap patient restraint
10H light tactical: 10 handle loops (4 each on long sides, 1 head, 1 foot), Rip-Stop 70 MP material

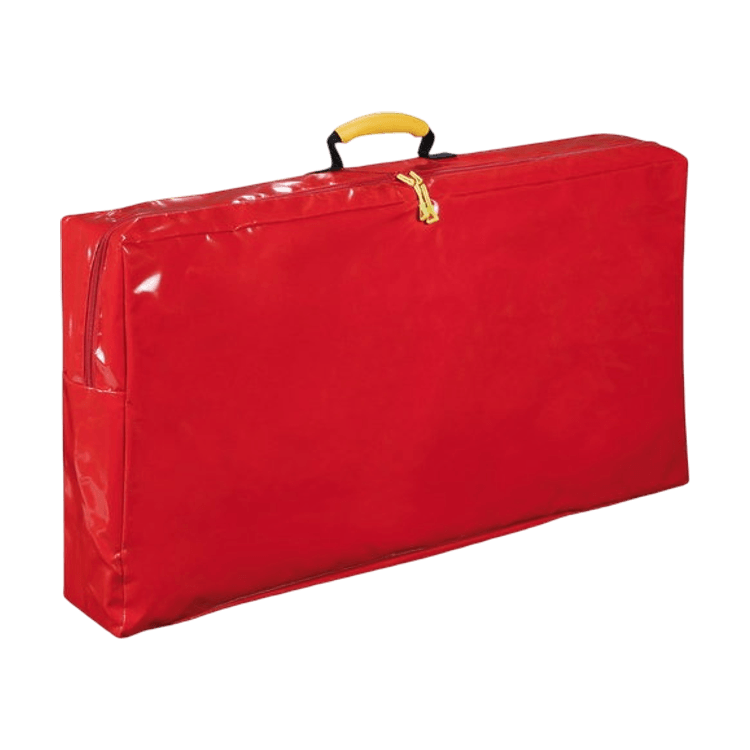

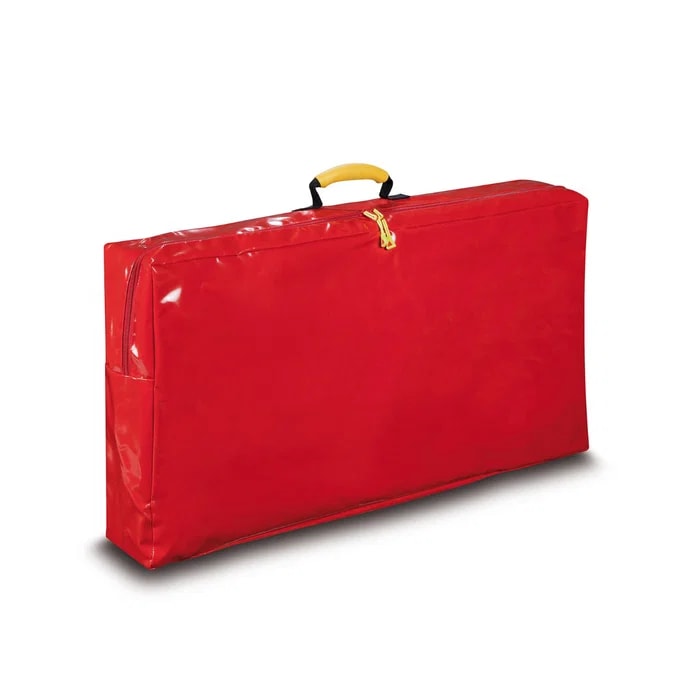

Carry bags/pouches included with delivery

Detalles del producto

Denominación del fabricante	PAX Carry Sheet (Tragetuch)
Uso	Medical Device (EU MDR 2017/745)

Clasificación

Especialidades
Aplicaciones
Tamaño

Ventajas competitivas

Competitive Advantage

Full MDR 2017/745 certification across the range
Bariatric XXL variant supports patients up to 400 kg
WOW RTS model includes integrated foldable aluminium support frame that prevents patient sag and allows both supine and seated transport
Lightweight version weighs only 270 g with MOLLE-compatible carry pouch
Tactical 10H light variant features 10 handle loops for multi-rescuer use
RFID passive transponder included on select models for asset tracking

Regulatory Certification

1 de 4

Variante	Width	Colour	Length	Weight	Configuration	Catalogue number	Handles	Max load	Material
PAX Carry Sheet Standard (Tragetuch Einfach)Simple multi-use carry sheet per EN 1865, red, 85 × 198 cm, 0.95 kg.	85 cm	Red	198 cm	0.95 kg	Standard (Einfach)	104490201	—	—	—
PAX Carry Sheet Light (Tragetuch light)Ultra-light 270 g carry sheet, DIN EN 1865-1, MOLLE-compatible pouch, max 150 kg, 105 × 190 cm.	105 cm	Red (EMS) / Black (tactical)	190 cm	0.27 kg	Light	27889	6	150 kg	—
PAX Carry Sheet with Anti-Slip L (Tragetuch mit Durchrutschsicherung L)Multi-use carry sheet per EN 1865 with anti-slip safety feature, 81 × 198 cm, 1.50 kg, material PAX-Plan.	81 cm	Red	198 cm	1.50 kg	Anti-Slip L	102260201	—	—	PAX-Plan
PAX Carry Sheet XL (Tragetuch XL)XL multi-use carry and rescue sheet per EN 1865, 14 handles, no foot pocket, max 250 kg, 120 × 200 cm.	120 cm	Red	200 cm	3.90 kg	XL	102270201	14	250 kg	PAX-Plan
PAX Carry Sheet XXL 400 kg (Tragetuch XXL 400 kg)Bariatric carry sheet with extra-wide double-hand loops, Y-strap patient restraint, max 400 kg, 160 × 240 cm.	160 cm	Red	240 cm	6.60 kg	XXL 400 kg	101820201	—	400 kg	PAX-Plan
PAX Carry Sheet 10H Light Tactical (Tragetuch 10H light: tactical)Tactical carry sheet with 10 handle loops (4+4 long sides, 1 head, 1 foot), Rip-Stop 70 MP material, 80 × 195 cm, 0.48 kg.	80 cm	Black	195 cm	0.48 kg	10H Light Tactical	282846203	10	—	Rip-Stop 70 MP
PAX WOW Carry Sheet RTS (WOW Tragetuch RTS)Advanced carry sheet with integrated foldable aluminium support frame, adjustable foot pocket, 10 outer handles, adjustable shoulder straps, max 250 kg, 96 × 256 cm.	96 cm	—	256 cm	4.70 kg	WOW RTS with aluminium support frame	284970201	10	250 kg	—

Carry Sheet (Tragetuch)

Variantes

Opciones y accesorios

Colour

MOLLE-compatible carry pouch

Documentos

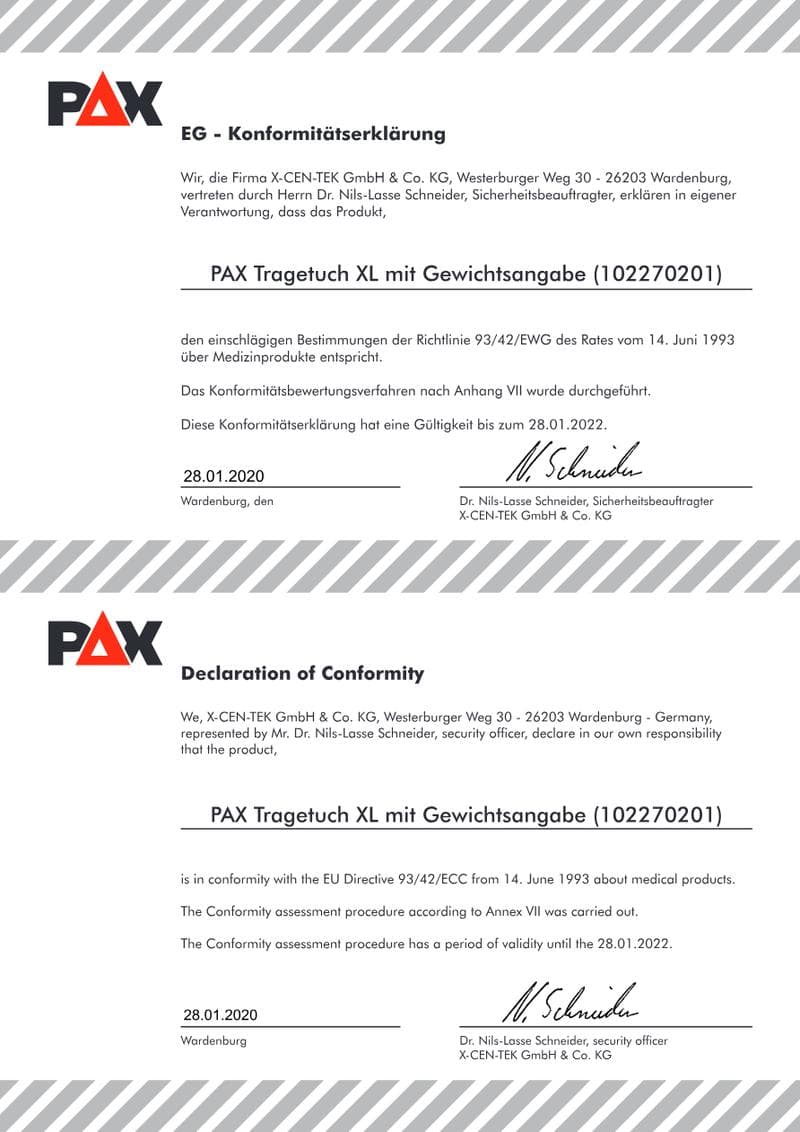

CE Declaration of Conformity: PAX Carry Sheet XL
