How is the P5/11 Ampullarium fixed in the backpack?

All P5/11 Ampullarium models are held in the backpack frame by magnets, providing secure yet tool-free removal for quick access.

What is the maximum ampoule capacity?

The L PCI 3.0 (cat. 286264510) holds between 70 and 200 ampoules depending on ampoule size and desired overview.

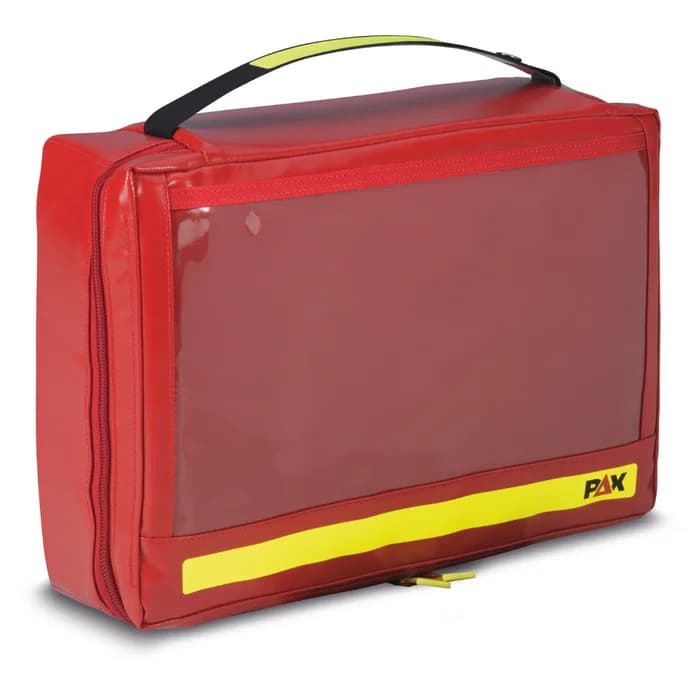

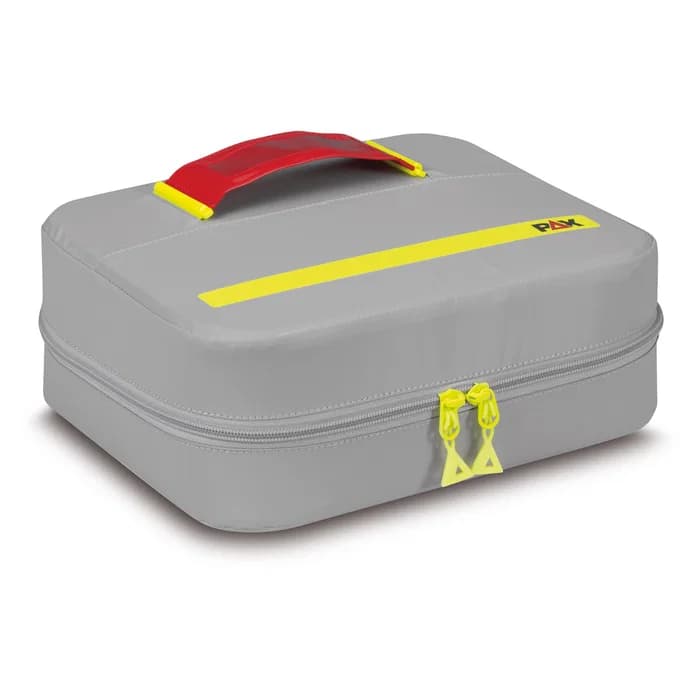

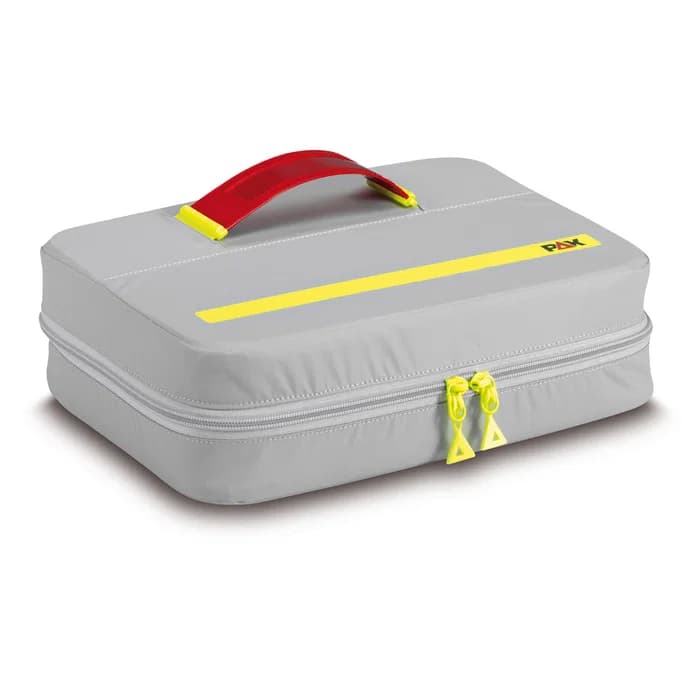

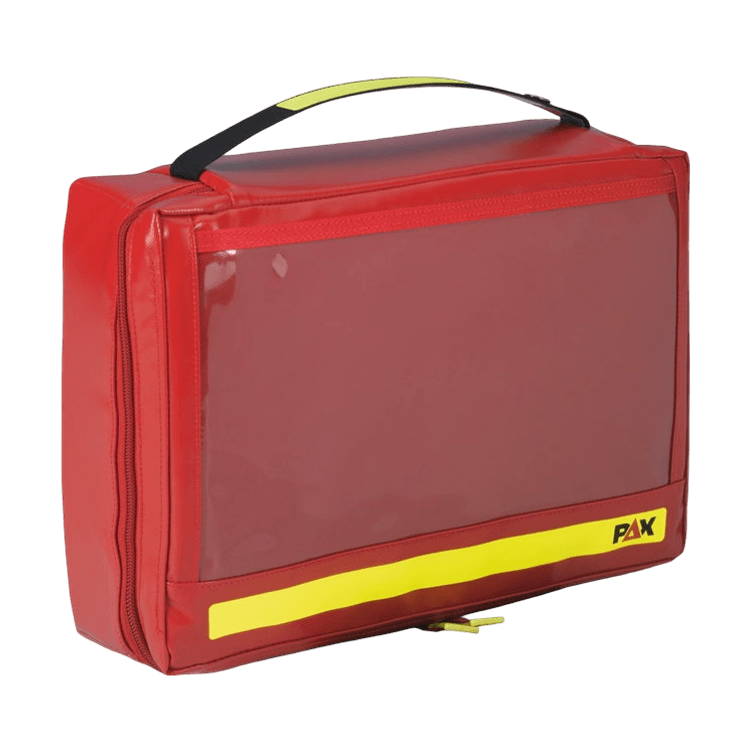

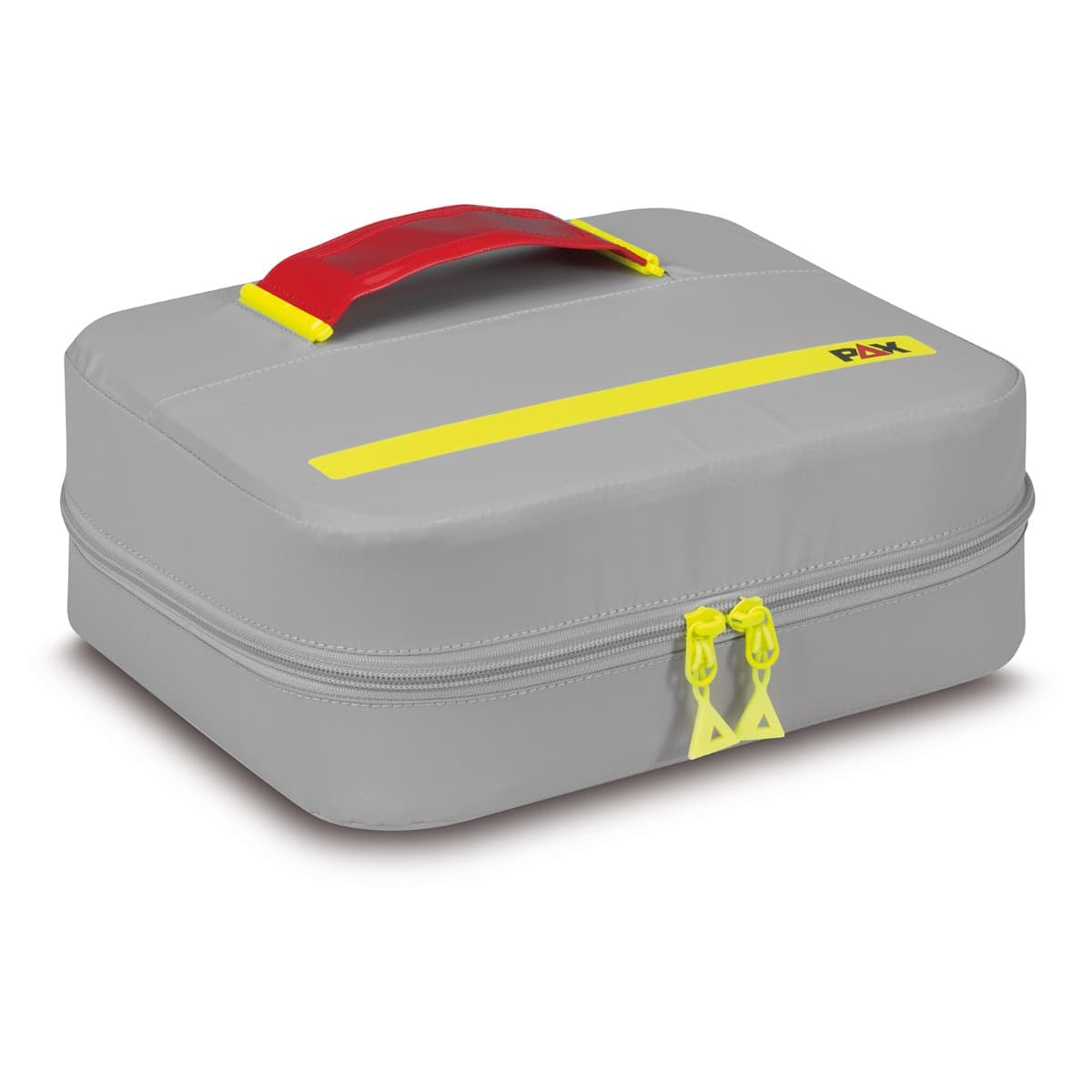

Ampoule Holder P5/11 (Clip-In / PCI)

Name: Ampoule Holder P5/11 (Clip-In / PCI)
Brand: PAX-Bags (X-CEN-TEK GmbH & Co. KG)

Ampoule Holder P5/11 (Clip-In / PCI) | PAX-Bags (X-CEN-TEK GmbH & Co. KG) | mytradeloop

Resumen

The PAX Ampullarium P5/11 series comprises reinforced ampoule holders designed specifically for the PAX P5/11 backpack system, held securely in place by magnets. Available in M and L sizes with Clip-In (2.0) or PCI 3.0 systems, plus carbon variants for weight savings. The largest model (L PCI 3.0) stores up to 200 ampoules. All models are EU MDR-certified medical devices.

Mdr certified
Magnetic fixation p5.11
Clip in pci system
Carbon version available
Up to 200 ampoules l size

Contactar al fabricante Ver catálogo

Aspectos destacados del producto

Reinforced ampoule holder for P5/11 modular backpack system
Magnetic fixation in the backpack frame (no straps or clips required)
PCI Clip-In system (2.0 or 3.0) in lid and base for flexible ampoule organisation
Folding dividers (Mittelwand) for syringes, cannulas and additional accessories
Clear-cover compartments with high-visibility yellow tabs
Removable colour-coded handle with integrated label field
Carbon versions for reduced weight without sacrificing durability
L size holds up to 140-200 ampoules; M size holds 40-90 ampoules

Detalles del producto

Denominación del fabricante	PAX Ampullarium P5/11
Uso	Medical Device (EU MDR 2017/745)

Clasificación

Reutilizabilidad
Tamaño
Material
Aplicaciones
Tipo

Ventajas competitivas

Competitive Advantage

Purpose-built for PAX P5/11 backpack system with magnetic quick-lock fixation
Carbon versions available for significant weight reduction
L PCI 3.0 model offers highest capacity in class: up to 200 ampoules
Certified medical devices under EU MDR (EU) 2017/745
Folding dividers accommodate syringes, cannulas and accessories

Regulatory Certification

EU MDR (EU) 2017/745: Medical Device

1 de 4

Variante	Size	System	Volume	Weight	Capacity	Material	Dimensions	Generation	Catalogue number	RFID transponder	P5/11 module equivalent
PAX Ampullarium P5/11 L Clip-In 2.0P5/11 L-size Clip-In 2.0 ampoule holder; occupies space of 2 'L' clear-view modules; holds up to 140 ampoules; removable red handle.	L	Clip-In	11.88 l	2.60 kg	up to 140 ampoules	PAX-Rip-Tec	11 × 36 × 30 cm	2.0	282434510	Yes	2 × clear-view 'L'
PAX Ampullarium P5/11 L Clip-In 2.0: CarbonP5/11 L-size Clip-In 2.0 ampoule holder with internal carbon plates for weight reduction; magnetic fixation; up to 140 ampoules.	L	Clip-In	11.88 l	2.24 kg	up to 140 ampoules	Carbon / PAX-Tec	11 × 36 × 30 cm	2.0	285164510	Yes	2 × clear-view 'L'
PAX Ampullarium P5/11 L PCI 3.0P5/11 L-size 3rd-generation PCI ampoule holder; highest capacity (70-200 ampoules); includes 2× PCI carrier plates L; folding dividers.	L	PCI Clip-In 3.0	—	2.60 kg	70-200 ampoules	PAX-Rip-Tec	10 × 36 × 30 cm	3.0	286264510	—	2 × clear-view 'L'
PAX Ampullarium P5/11 M Clip-In 2.0P5/11 M-size Clip-In 2.0 ampoule holder; fits vertically; occupies space of 2 'ML' modules; 40-90 ampoules.	M	Clip-In	7.92 l	1.93 kg	40-90 ampoules	PAX-Tec	11 × 30 × 24 cm	2.0	282364510	—	2 × 'ML'
PAX Ampullarium P5/11 M Clip-In: CarbonP5/11 M-size Clip-In ampoule holder in carbon version for weight savings; 40-90 ampoules; magnetic fixation.	M	Clip-In	—	1.70 kg	40-90 ampoules	Carbon / PAX-Tec	11 × 30 × 24 cm	2.0	283764510	—	2 × 'ML'
PAX Ampullarium P5/11 M PCI 3.0P5/11 M-size 3rd-generation PCI ampoule holder; 70-200 ampoules; includes 2× PCI carrier plates M; folding dividers.	M	PCI Clip-In 3.0	—	2.05 kg	70-200 ampoules	PAX-Rip-Tec	10 × 30 × 24 cm	3.0	286254510	Yes	2 × 'ML'

Variantes

Opciones y accesorios

Handle

Material

PAX-Clip-In-System Ampullenclip S/M/L/XL 3.0

PAX Module Handle P5/11 2.0 (Art. 27885)
