Does the system require manual gas calibration between patients?

No, the Ergostik features a fully automatic gas calibration process, eliminating the need for manual hose changes.

Can the system control external exercise equipment?

Yes, the system allows for the control of treadmills, ergometers, and stress echo couches directly from the measurement workstation.

Is the ECG data integrated with the ergospirometry results?

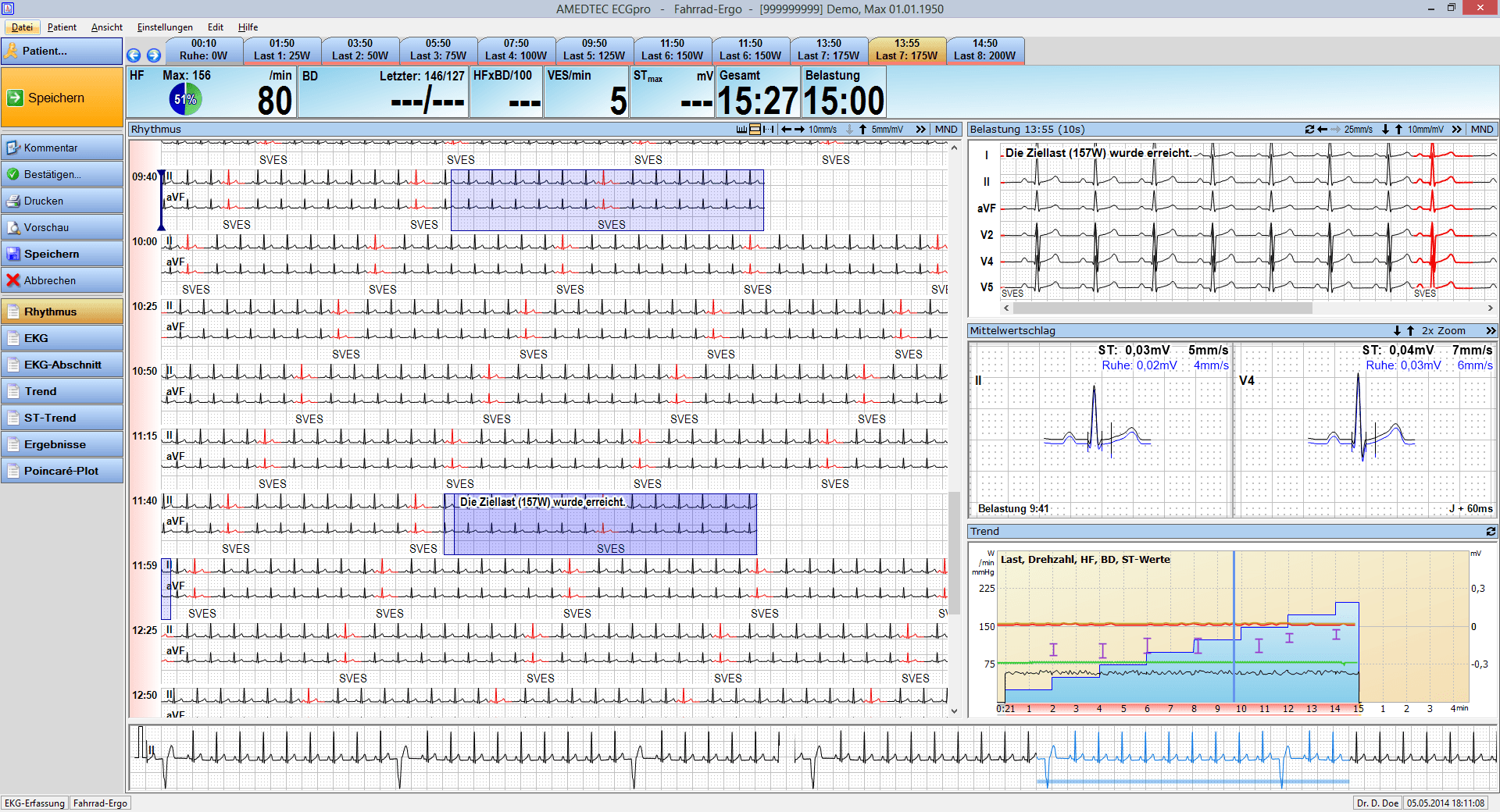

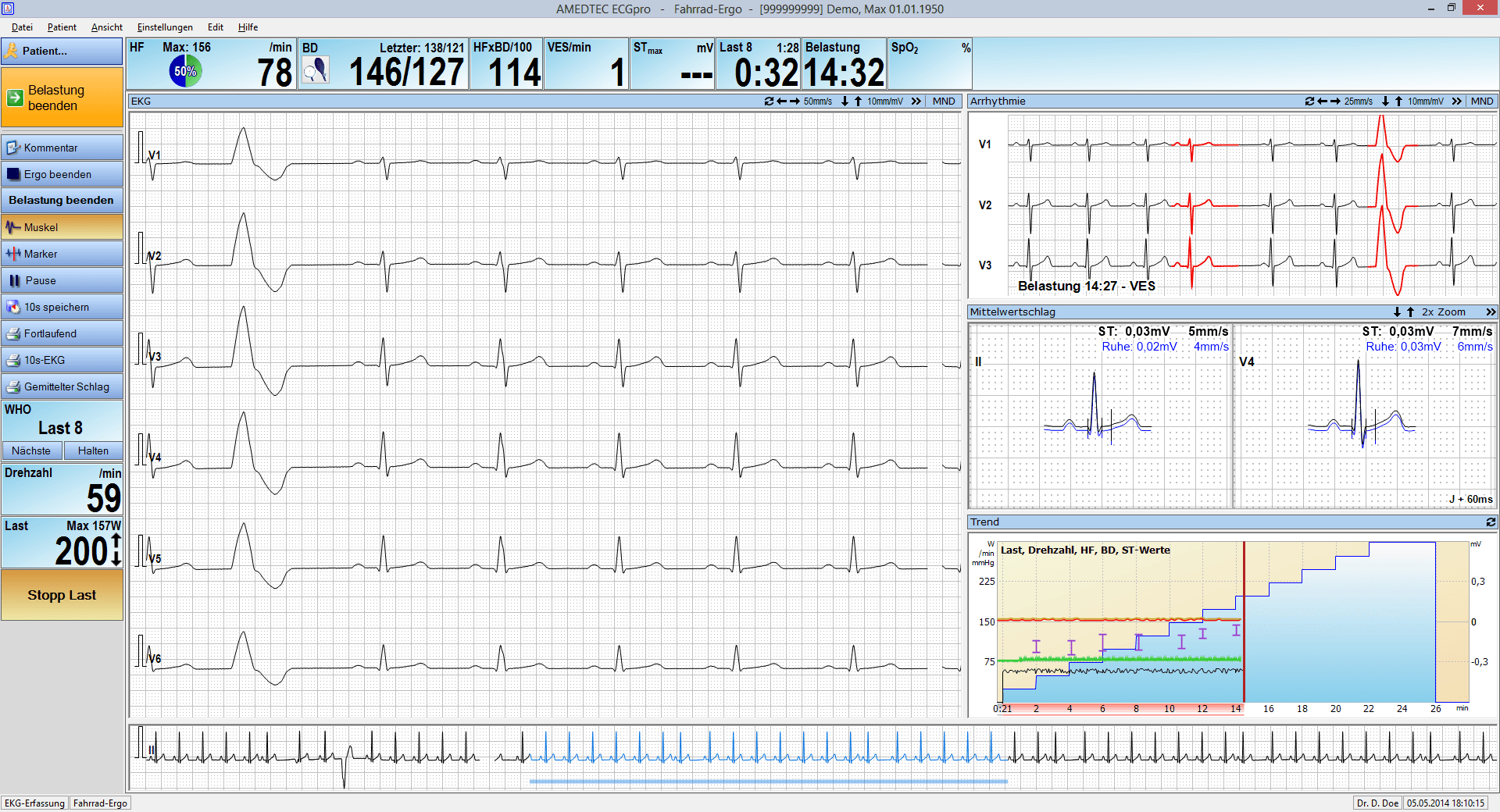

Yes, the system provides a fully integrated 12-channel stress ECG, allowing for retrospective viewing and automatic arrhythmia detection alongside metabolic data.

Ergostik

Name: Ergostik
Brand: AMEDTEC Medizintechnik Aue GmbH

Ergostik | AMEDTEC Medizintechnik Aue GmbH | mytradeloop

Overview

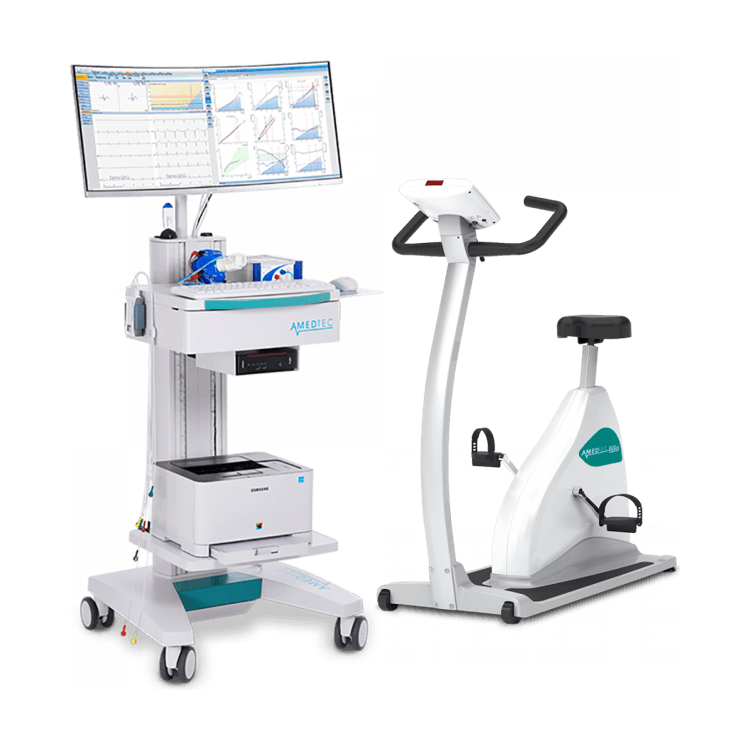

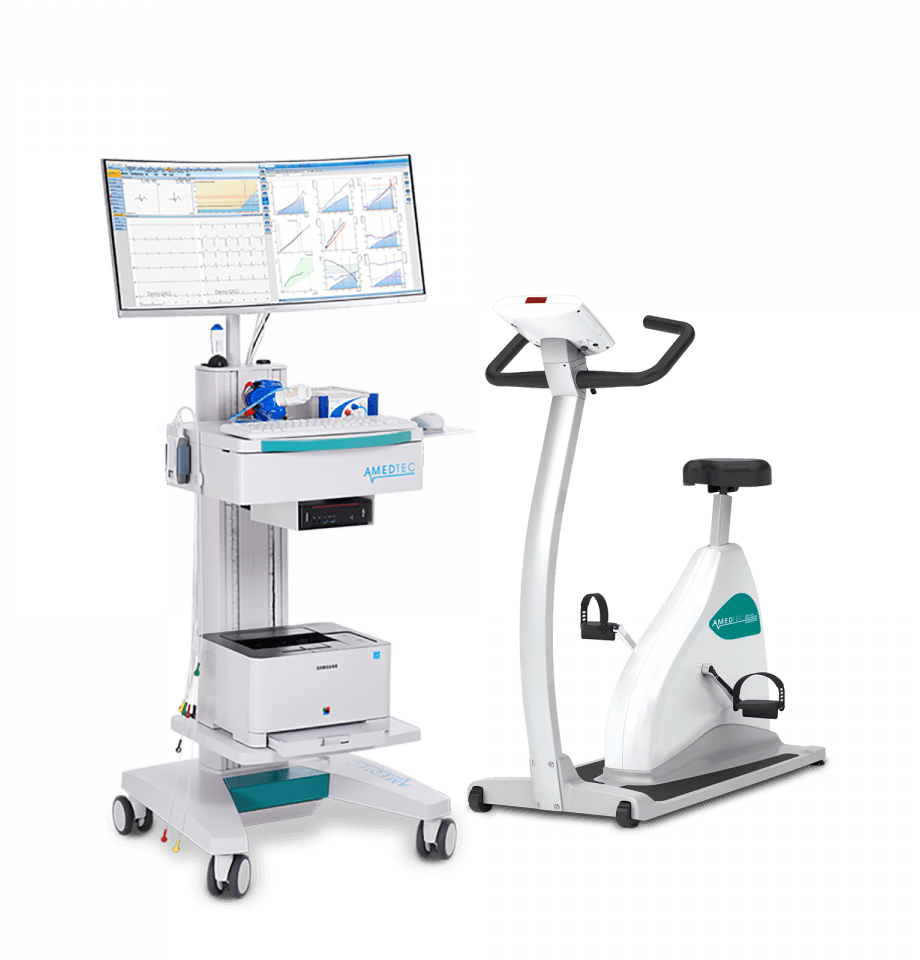

The Ergostik is a compact, portable ergospirometry system designed for precise cardiopulmonary functional diagnostics. It integrates a 12-channel stress ECG with advanced gas analysis, utilizing a lightweight flow sensor and automated calibration to streamline clinical examinations.

Breath by breath
Auto calibration
Ultralight sensor

Contact manufacturer View catalog

Product highlights

Breath-by-breath technology for real-time gas exchange analysis.
Integrated 12-channel resting and stress ECG with USB or Bluetooth connectivity.
9-field graphic analysis according to Prof. Wasserman with zoom functionality.
Automatic BTPS correction for temperature, air pressure, and humidity.
Smart-Report technology for customizable print templates and screen layouts.
Interface for treadmill, ergometer, and stress echo couch control from a single workstation.
Optional integrated oxygen saturation via Bluetooth.

Product details

Usage	Reusable
Dimensions (L x W x H)	210 x 175 x 75 mm
Weight	1120 g
Volume Measurement Range	0 - 20 l
Volume Accuracy	+/- 3 % or 50 ml
O2 Measurement Range	1 - 100 %
O2 Response Time (T90)	< 100 ms
CO2 Measurement Range	0 - 13 %
CO2 Response Time	28 ms
Ventilation Measurement Range	0 - 300 l/min

Classification

Specialties

Competitive advantages

Competitive Advantage

Fully automatic gas calibration eliminates the need for manual hose changes.
Ultralight flow sensor design improves patient comfort and ease of disinfection.
Integrated 12-channel ECG with retrospective viewing capabilities.
Simultaneous automatic detection of VT1 and VT2 thresholds during the examination.

Regulatory Certification

MDD 93/42/EEC Annex IX Class IIa
IEC 529 IPX0

1 of 3

Accessories

Medical Bike Ergometer

Decapus Suction System

Calibration Pump

CardioPart 12
