Does the system support integration with existing hospital IT infrastructure?

Yes, the system offers 100% network compatibility and supports the HL7 standard for seamless integration into existing data management environments.

How does the system ensure patient comfort during testing?

The system includes an electrically height-adjustable 3D stand and a swiveling patient chair with an 'Easy-Entry' design, specifically intended for patients with limited mobility or disabilities.

Are the measurement results automatically validated?

Yes, the software includes an automatic plausibility check for all measurement results to guarantee the quality of the findings.

Body Plethysmograph

Name: Body Plethysmograph
Brand: AMEDTEC Medizintechnik Aue GmbH

Body Plethysmograph | AMEDTEC Medizintechnik Aue GmbH | mytradeloop

Overview

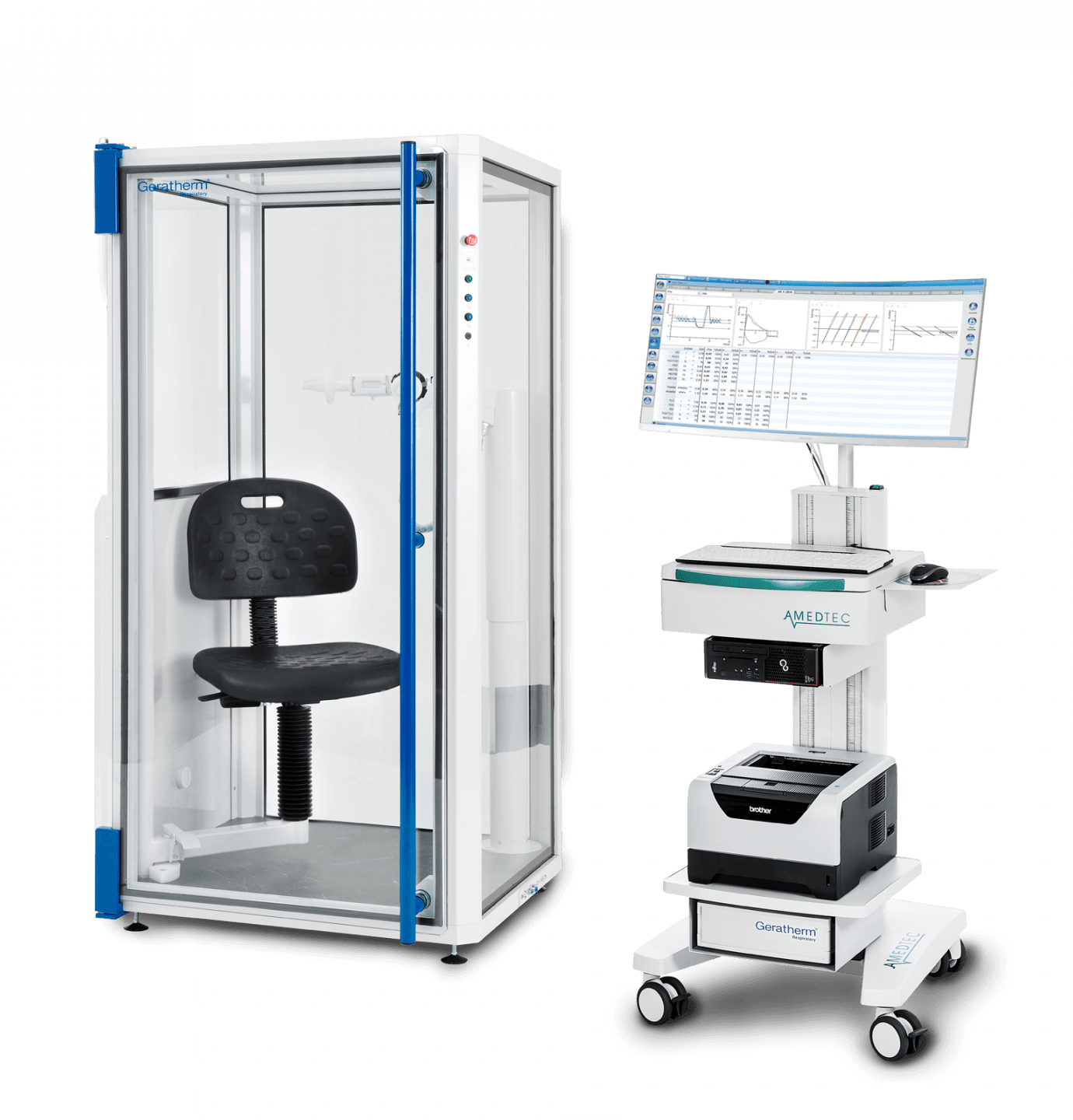

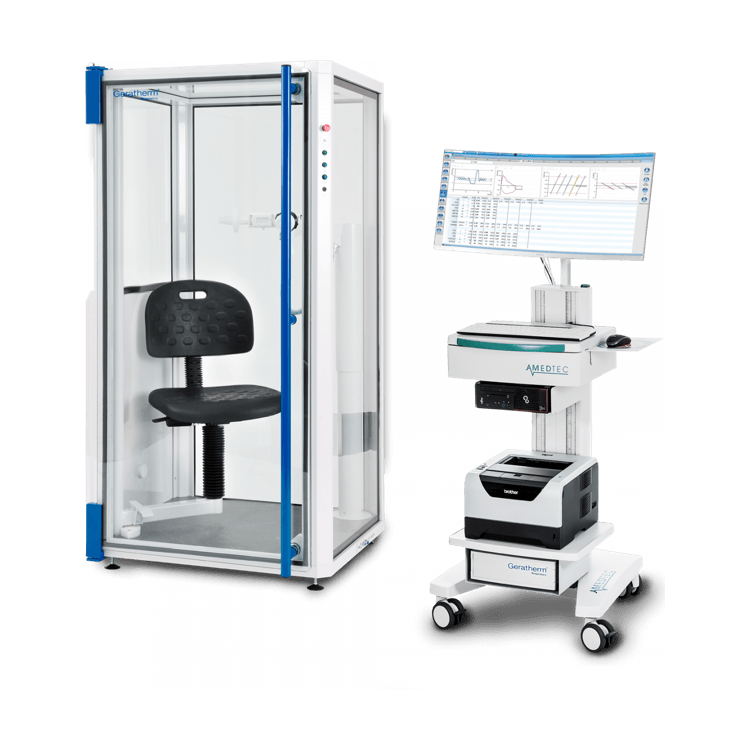

The Bodystik is a high-comfort body plethysmograph designed for precise pulmonary function diagnostics in clinics and medical centers. It features a fully automated calibration system and integrates seamlessly into the AMEDTEC ECGpro data management platform.

Easy entry chair
3d adjustable stand
Hl7 network compatible

Contact manufacturer View catalog

Product highlights

Fully automatic cabin calibration
Automatic BTPS correction for temperature, air pressure, and humidity
Compliant with current ERS/ATS guidelines
Configurable automated measurement sequences

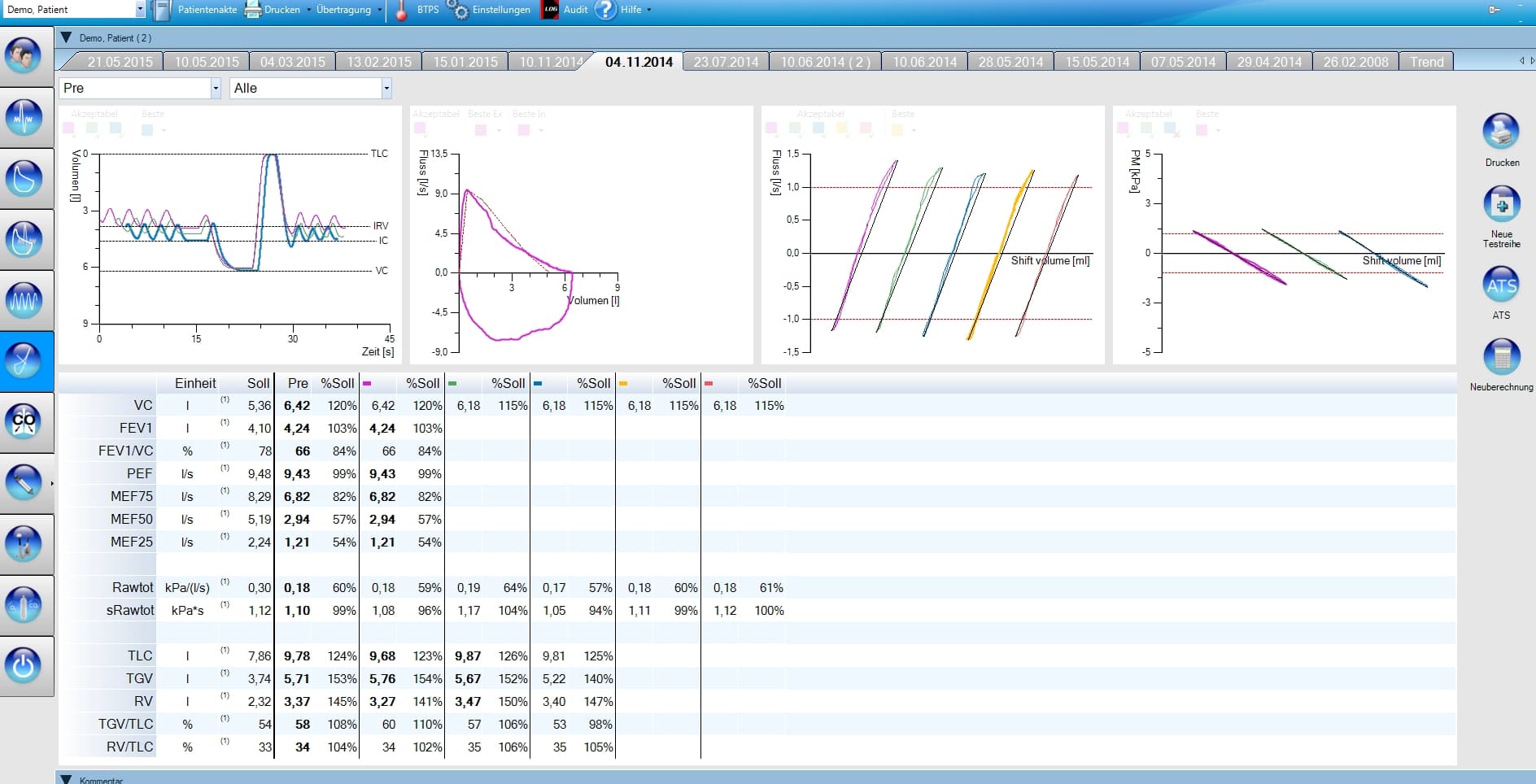

Overlaid and separated visualization of TGV and resistance for rapid curve comparison
100% network compatibility with HL7 support

Product details

Manufacturer designation	Bodystik
Dimensions (L x W x H)	750 x 850 x 1700 mm
Total footprint	2 m²
Weight	140 kg
Volume measurement range	0-20 l
Volume accuracy	+/- 3 % or 50 ml
Flow measurement range	+/- 16 l/s
Ventilation measurement range	0-300 l/min
Effective dead space	< 20 ml
Sampling rate	125 Hz

Classification

Specialties
Patient Type
Operation
Type

Competitive advantages

Competitive Advantage

Easy-entry swiveling patient chair accommodates patients with limited mobility or disabilities
Electrically height-adjustable 3D stand optimizes operator comfort during measurements
Revolutionary flow sensor design minimizes dead space for improved accuracy
Automated plausibility checks ensure high-quality diagnostic findings

1 of 3

Accessories

Bodystik

Calibration pump

AMEDTEC PC Printer

Device cart

CO-Diffusion SB extension

Pressure reducer

Neumofilter
