What is the maximum recording duration for the EP830?

The EP830 supports up to 14 days of continuous 3-channel recording without data reduction.

Is the EP830 compatible with existing AMEDTEC software?

Yes, the device is fully integrated into the AMEDTEC ECGpro data management system.

Does the device support pacemaker detection?

Yes, it features intelligent pacemaker analysis with the ability to differentiate between atrial and ventricular pacing spikes.

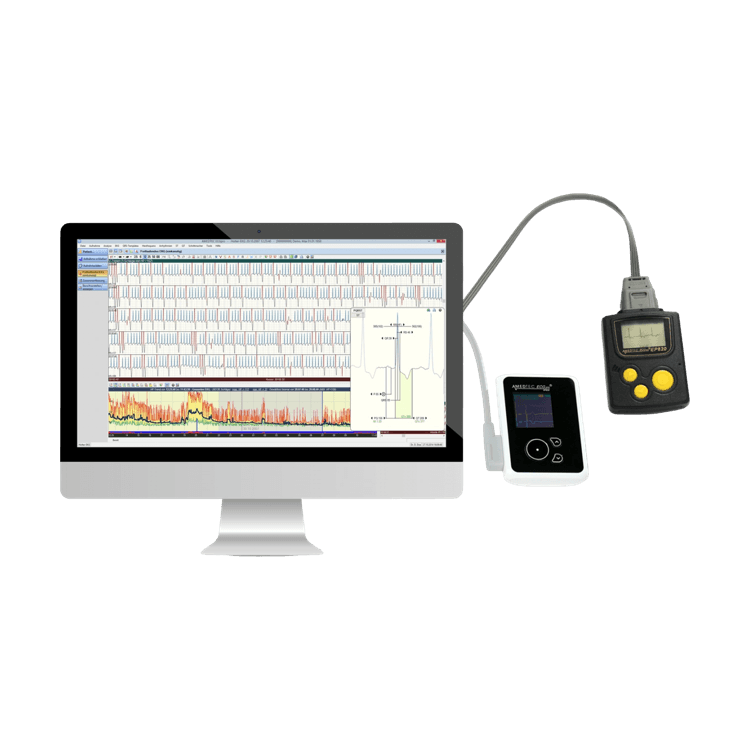

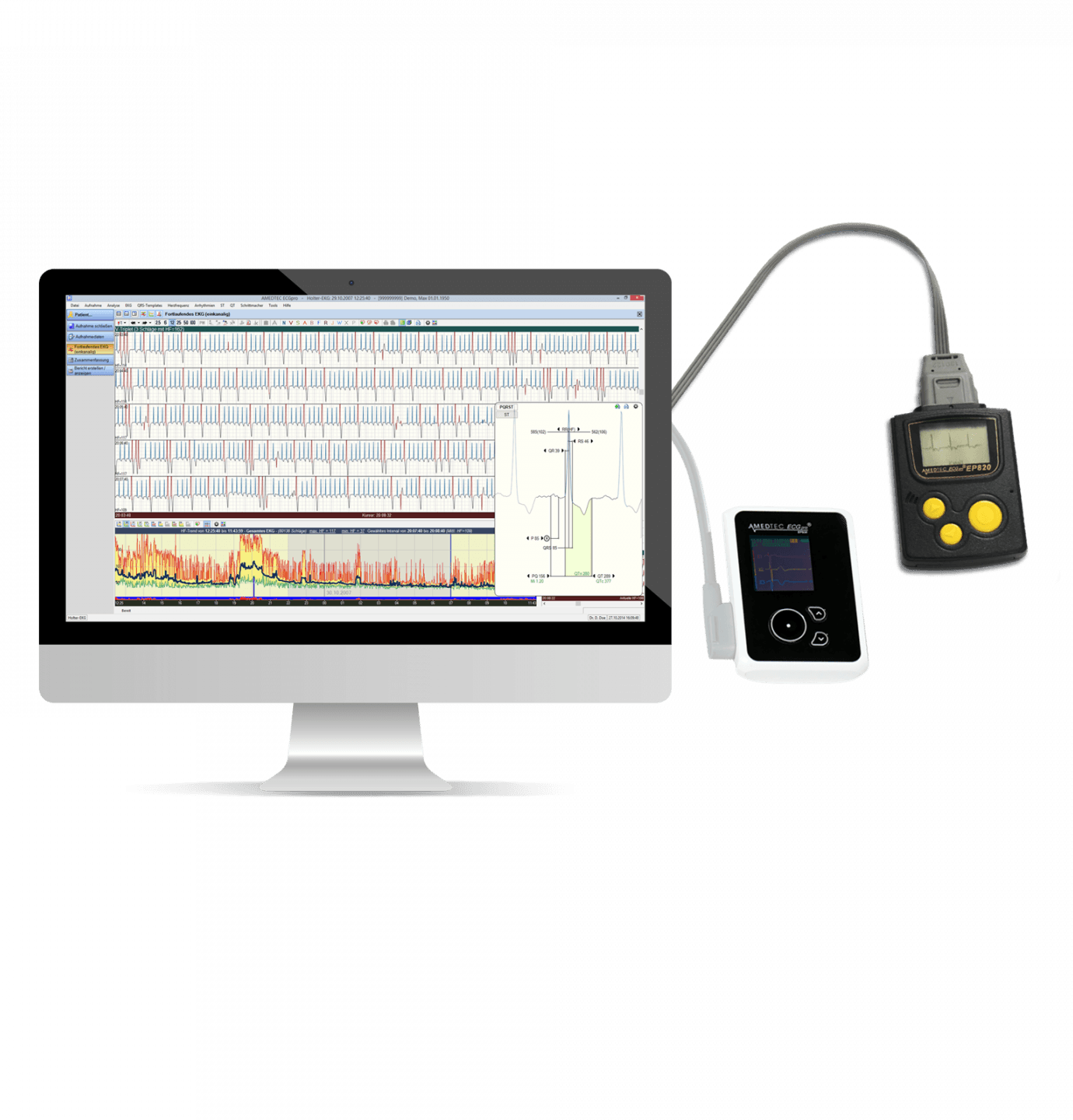

EP830 Holter Recorder

Name: EP830 Holter Recorder
Brand: AMEDTEC Medizintechnik Aue GmbH

EP830 Holter Recorder | AMEDTEC Medizintechnik Aue GmbH | mytradeloop

Overview

The EP830 is a high-performance Holter ECG recorder designed for efficient clinical workflows. It enables rapid data download and visual inspection in under 60 seconds, with full diagnostic reports available in under 5 minutes.

14 day recording
Oled color display
60 second download

Contact manufacturer View catalog

Product highlights

Automatic patient assignment upon recording import
Multi-day recording capability without compression shortfall
Splash water and dust protection (IPX6 grade)
Integrated with AMEDTEC ECGpro data management system
Intelligent pacemaker analysis with atrial and ventricular spike differentiation
Configurable rhythm analysis parameters
Risk management tools including ischemia, QT, and HRV analysis

Product details

Dimensions	80 x 59 x 18 mm
Weight	63 g
Recording Channels	3 or 12
Recording Time (3-channel)	> 14 days
Recording Time (12-channel)	2 days
AD Resolution	24 bit
Sample Rate	250, 500, or 1000 Hz
Frequency Response	0.05 to 240 Hz
Battery Type	1 AA (Alkaline, Lithium, or NiMH)
Waterproof Rating	IPX6

Classification

Specialties
Applications
Portability
Number Of Channels
Display Type
Patient Type
Usage

Competitive advantages

Competitive Advantage

Fast data download and visual inspection in less than 60 seconds
Full diagnostic findings available in less than 5 minutes
Recording capacity exceeding 14 days without data reduction
Integrated OLED color display for real-time 3-channel ECG verification

1 of 4

Versions

Accessories

Patient cable

Adhesive electrodes

Disposable hygiene bags

Disposable cloak hygiene strap

Documents

Cardiovascular Diagnostics EC Certificate CE Certificate

CardioPart 12 WLAN Certificate

CardioPart 12 WLAN Certificate
