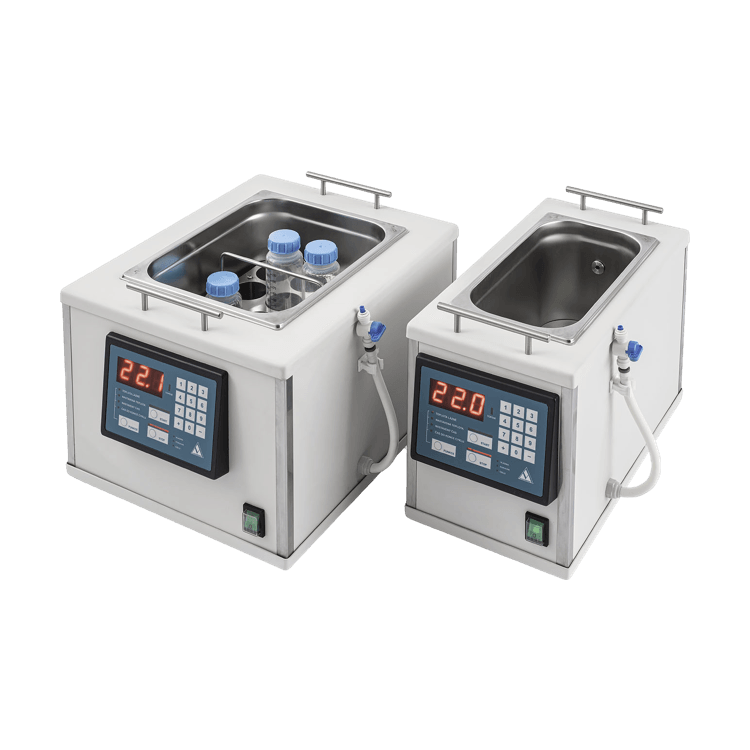

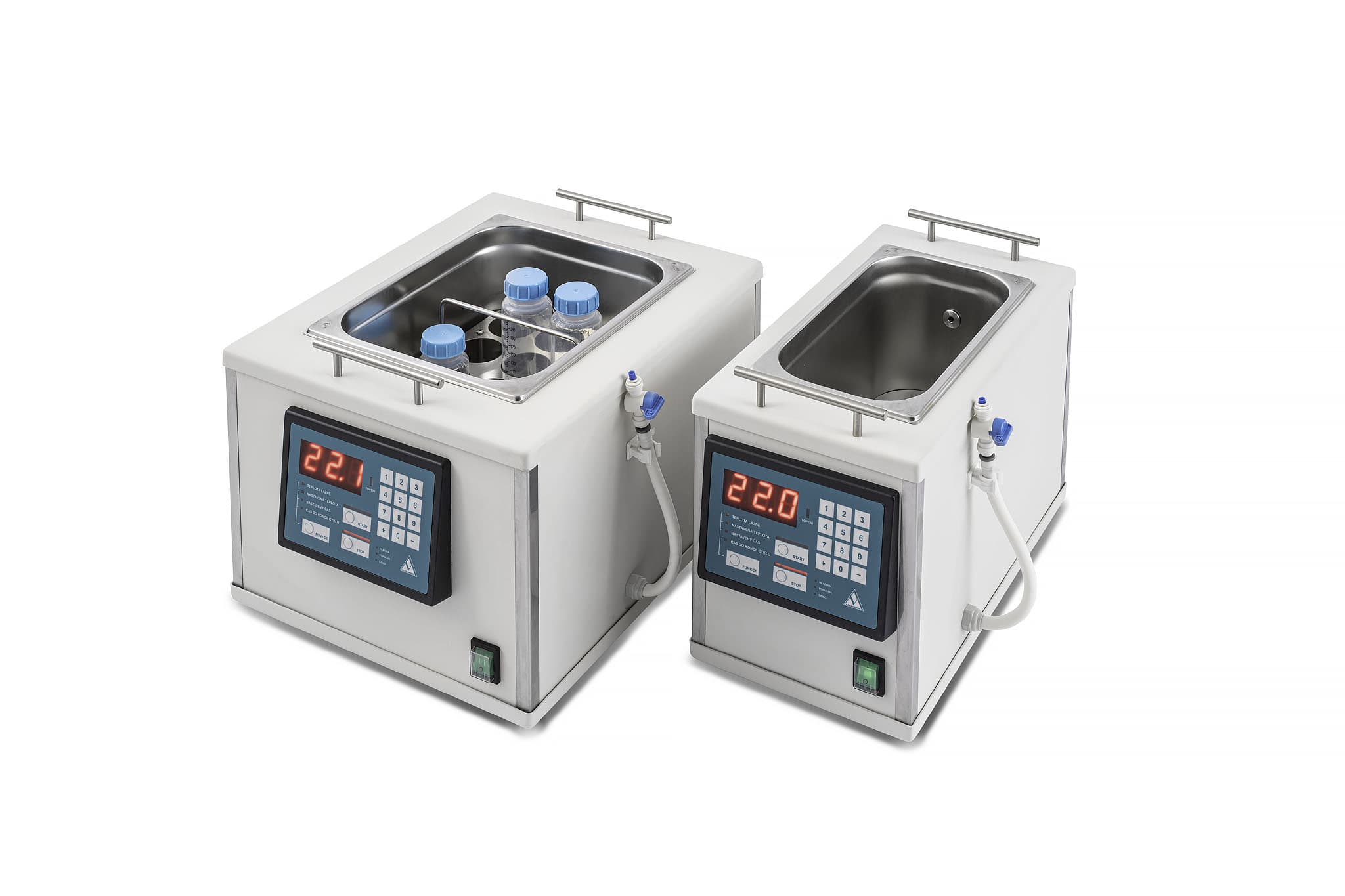

Heated Water Bath
The BW series universal heated water baths are designed for clinical and laboratory environments to provide precise, safe heating for medical materials, including infusion solutions, blood derivatives, and food. The system utilizes a double-bottom design with a nozzle system and powerful pump to ensure optimal temperature distribution throughout the bath.
| Protection Class | I |
|---|---|
| Power Supply | 230/50 V/Hz |
| Temperature Range | 30-65 °C |
| Temperature Accuracy | 0.1 °C |
| Variante | Volume (l) | Power Input (W) | Dimensions (W x H x D mm) | Capacity (500ml bags / 250ml bottles) |
|---|---|---|---|---|
| BW-SCompact model with fixed 37.5°C temperature setting. | 5 | 350 | 270 x 330 x 550 | 3 / 8 |
| BW-5Standard 5-liter model with programmable touch interface. | 5 | 350 | 270 x 330 x 500 | 3 / 8 |
| BW-10Mid-size 10-liter model with programmable touch interface. | 10 | 700 | 400 x 330 x 500 | 5 / 12 |

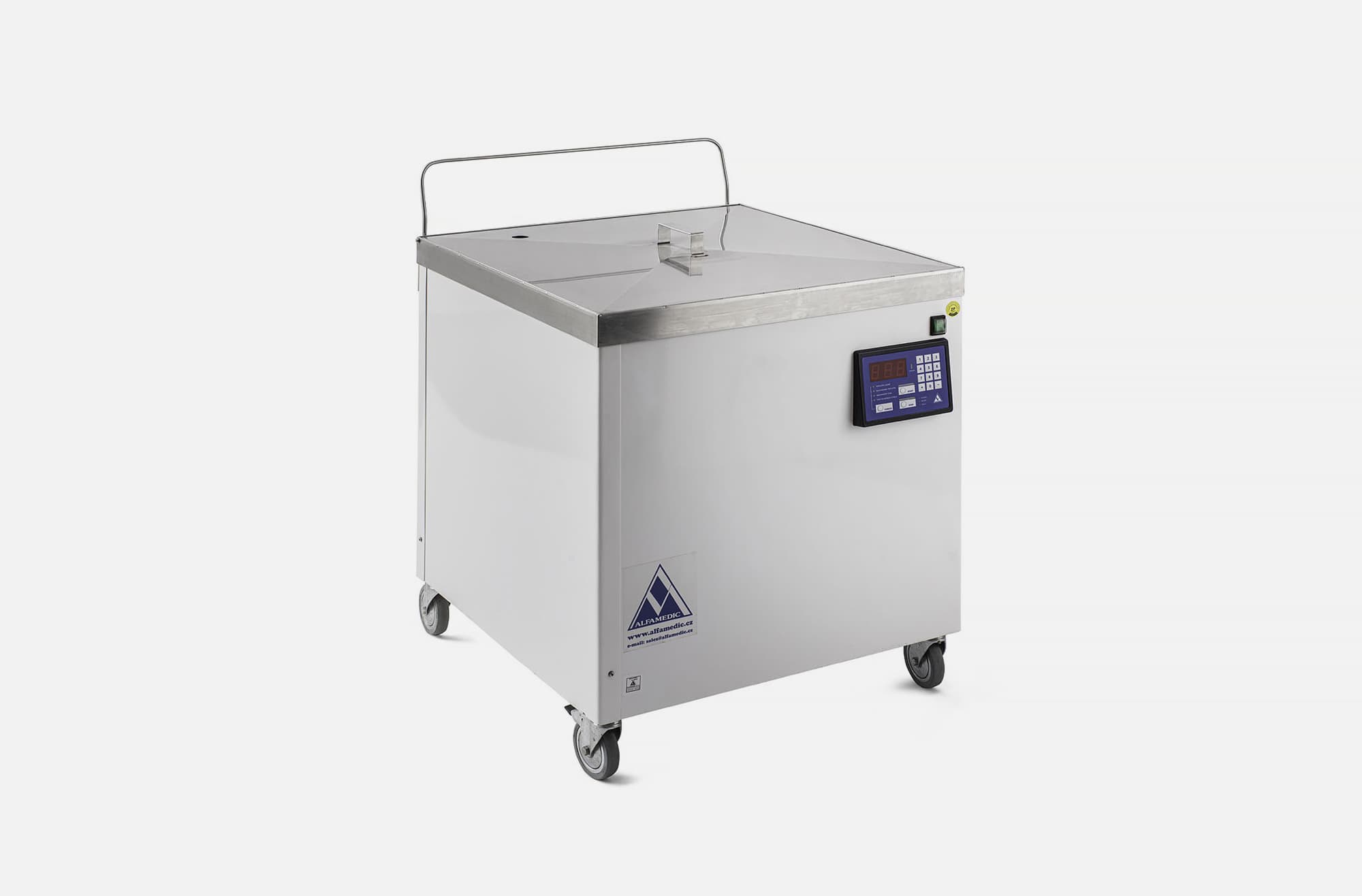

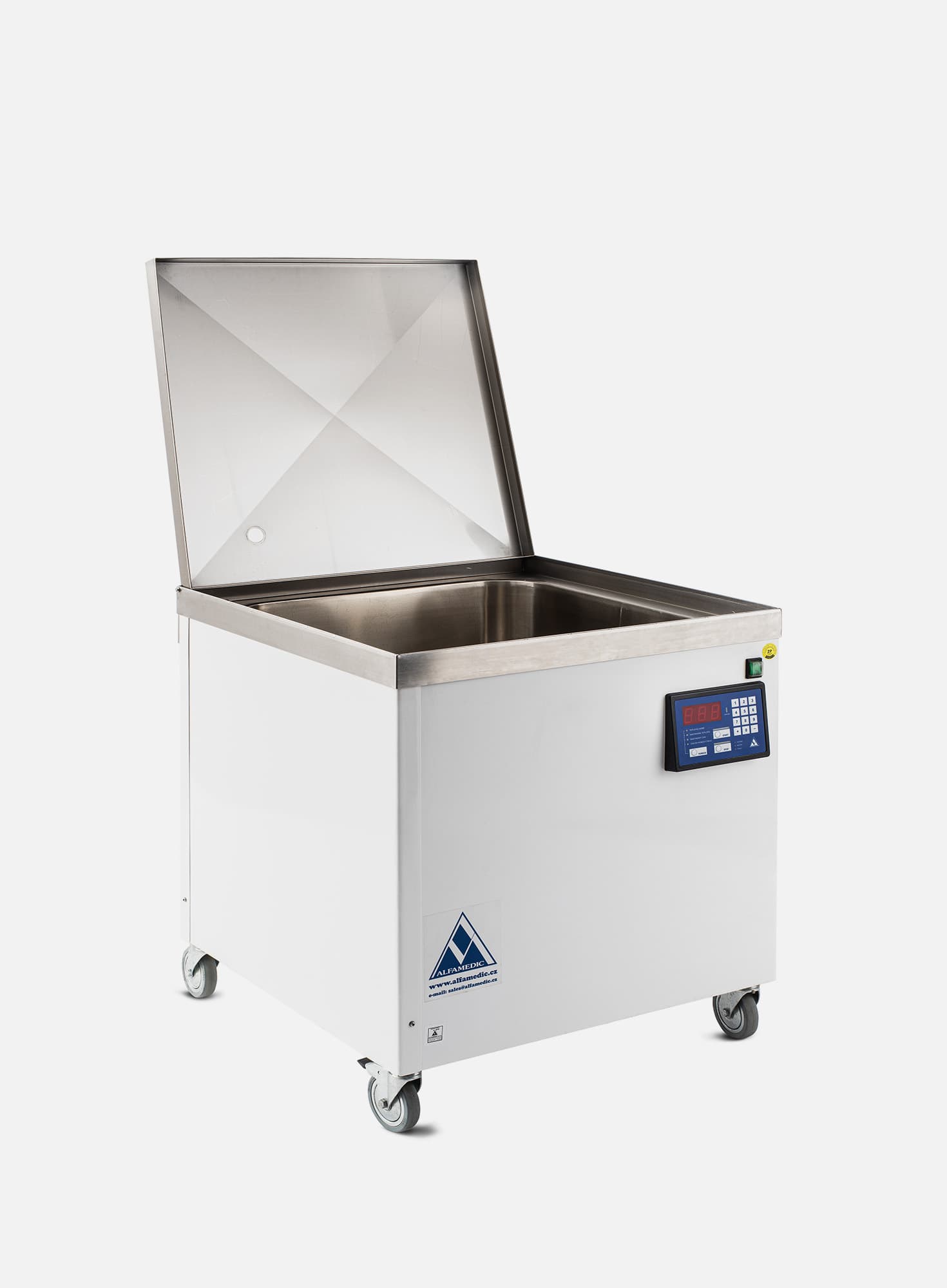

| BW-50High-capacity 50-liter model for large volume requirements. | 50 | 2000 | 700 x 950 x 750 | 20 / 50 |
