Instrument care/maintenance oil
STERILIT® I PFLEGEOEL
- Water vapor permeable oil film
- Silicone free formula
DIADUST MIKRO-NADELHALTER MIT RUNDGRIFF
Micro needle holders
Micro needle holders

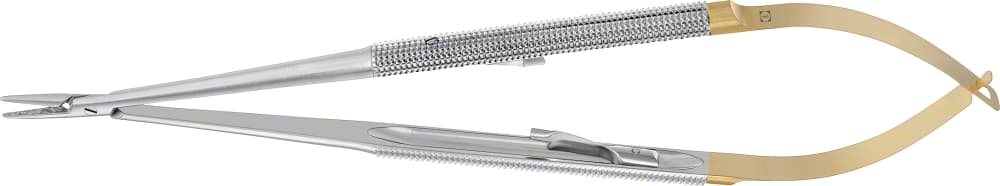

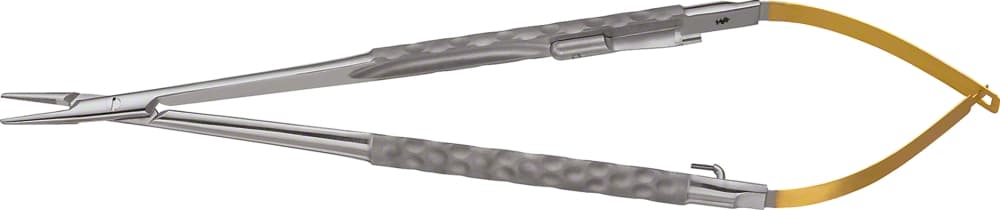

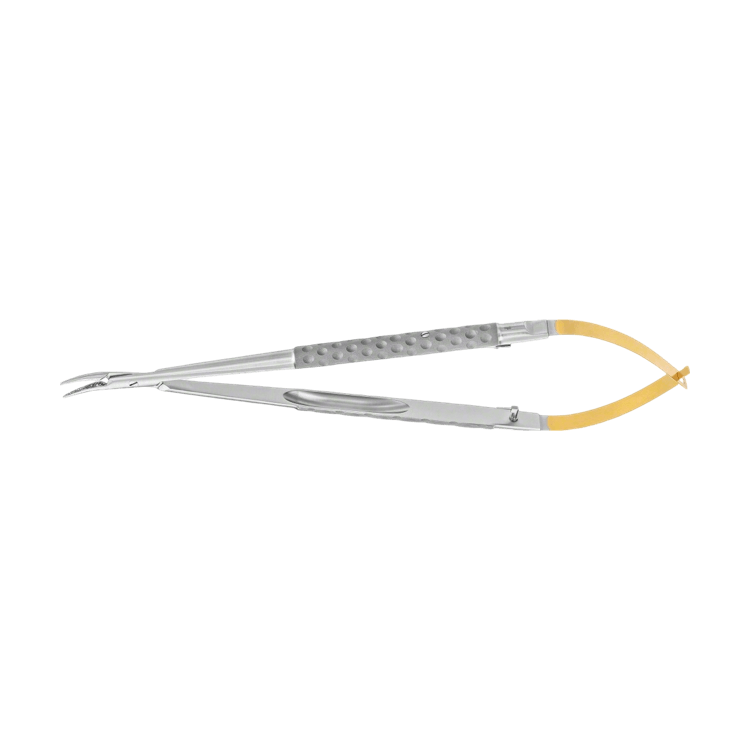

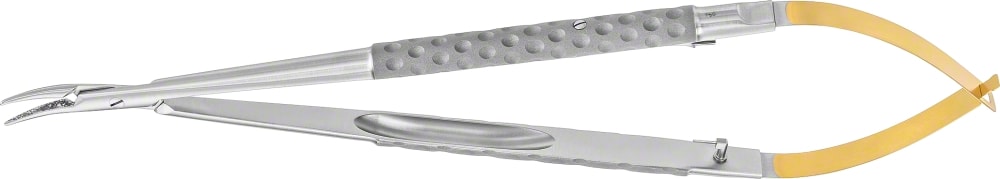

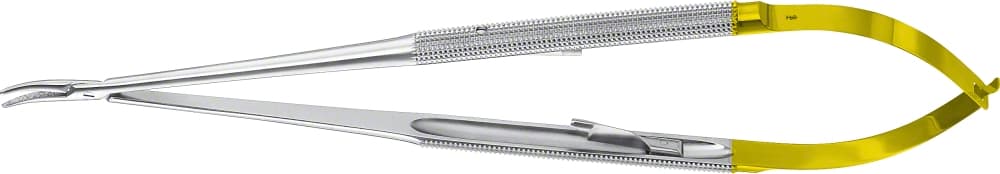

Dia Dust® micro needle holders with round handle by AESCULAP for precision micro-suturing in periodontology and dental microsurgery, featuring tungsten-carbide-coated jaws, offered in straight and curved geometries, multiple lengths, with or without ratchet lock, matched to suture material from 4/0 up to 10/0.
| Désignation du fabricant | Dia Dust® Micro Needle Holders with Round Handle |
|---|---|
| Jaw profile | Tungsten carbide coated |
| Handle | Round handle |
| Reusable | Yes |
| Sterility | Non-sterile as supplied |
| Contains latex | No |
| Variante | Lock | Length | Geometry | Length (inch) | Classic variant | Premium variant | Catalogue number | Quality standard | Suture recommendation | UDI direct marking | Design |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FD258R - Dia Dust® Micro Needle Holder, straight, 180 mm (7"), with lock, for suture 6/0-10/0Straight, with lock, for suture 6/0-10/0. | With lock | 180 mm | Straight | 7" | FD246R | FM650B | FD258R | Standard | 6/0-10/0 | — | — |
| FD259R - Dia Dust® Micro Needle Holder, curved, 180 mm (7"), with lock, for suture 6/0-10/0Curved, with lock, for suture 6/0-10/0. | With lock | 180 mm | Curved | 7" | FD247R | — | FD259R | — | 6/0-10/0 | No | — |
| FM218R - Dia Dust® Micro Needle Holder, straight, 185 mm (7 1/4"), with lock, for suture up to 4/0Straight, fine design, for suture up to 4/0. | With lock | 185 mm | Straight | 7 1/4" | FD046R | — | FM218R | — | Up to 4/0 | — | Fine |
| FM221R - Dia Dust® Micro Needle Holder, curved, 210 mm (8 1/4"), with lock, for suture up to 4/0Curved, for suture up to 4/0. | With lock | 210 mm | Curved | 8 1/4" | — | — | FM221R | — | Up to 4/0 | — | — |
| FM223R - Dia Dust® Micro Needle Holder, curved, 230 mm (9"), with lock, for suture up to 4/0Curved, for suture up to 4/0. | With lock | 230 mm | Curved | 9" | — | — | FM223R | — | Up to 4/0 | — | — |
| FM228R - Dia Dust® Micro Needle Holder, straight, 210 mm (8 1/4"), with lock, for suture up to 4/0Straight, for suture up to 4/0. | With lock | 210 mm | Straight | 8 1/4" | — | FM652B | FM228R | — | Up to 4/0 | — | — |
| FM230R - Dia Dust® Micro Needle Holder, straight, 230 mm (9"), with lock, for suture up to 4/0Straight, for suture up to 4/0. | With lock | 230 mm | Straight | 9" | — | FM654B | FM230R | — | Up to 4/0 | — | — |
| FM236R - Dia Dust® Micro Needle Holder, straight, 210 mm (8 1/4"), with lock, for suture up to 5/0Straight, for suture up to 5/0. | With lock | 210 mm | Straight | 8 1/4" | — | — | FM236R | — | Up to 5/0 | — | — |
| FM244R - Dia Dust® Micro Needle Holder, round handle, 210 mmMicro needle holder with round handle, 210 mm. | — | 210 mm | — | — | — | — | FM244R | — | — | — | — |
| FM246R - Dia Dust® Micro Needle Holder, round handle, 235 mmMicro needle holder with round handle, 235 mm. | — | 235 mm | — | — | — | — | FM246R | — | — | — | — |
| FM276R - Dia Dust® Micro Needle Holder, straight, 210 mm (8 1/4"), without lock, for suture up to 5/0Straight, without lock, for suture up to 5/0. | Without lock | 210 mm | Straight | 8 1/4" | — | FM653B | FM276R | — | Up to 5/0 | — | — |
| FM520R - Dia Dust® Micro Needle Holder, straight, 120 mm (4 3/4"), with lock, for suture up to 7/0Straight, with lock, for suture up to 7/0. | With lock | 120 mm | Straight | 4 3/4" | FD232R | — | FM520R | — | Up to 7/0 | — | — |
| FM521R - Dia Dust® Micro Needle Holder, straight, 160 mm (6 1/4"), with lock, for suture up to 7/0Straight, with lock, for suture up to 7/0. | With lock | 160 mm | Straight | 6 1/4" | FD242R | — | FM521R | — | Up to 7/0 | — | — |
| FM522R - Dia Dust® Micro Needle Holder, straight, 145 mm (5 3/4"), with lock, for suture up to 5/0Straight, with lock, for suture up to 5/0. | With lock | 145 mm | Straight | 5 3/4" | — | — | FM522R | — | Up to 5/0 | — | — |
| FM523R - Dia Dust® Micro Needle Holder, straight, 160 mm (6 1/4"), with lock, for suture up to 5/0Straight, with lock, for suture up to 5/0. | With lock | 160 mm | Straight | 6 1/4" | — | — | FM523R | — | Up to 5/0 | — | — |
| FM524R - Dia Dust® Micro Needle Holder, straight, 120 mm (4 3/4"), without lock, for suture up to 7/0Straight, without lock, for suture up to 7/0. | Without lock | 120 mm | Straight | 4 3/4" | FD230R | — | FM524R | — | Up to 7/0 | — | — |
| FM525R - Dia Dust® Micro Needle Holder, straight, 160 mm (6 1/4"), without lock, for suture up to 7/0Straight, without lock, for suture up to 7/0. | Without lock | 160 mm | Straight | 6 1/4" | FD240R | — | FM525R | — | Up to 7/0 | — | — |
| FM526R - Dia Dust® Micro Needle Holder, straight, 185 mm (7 1/4"), without lock, for suture up to 7/0Straight, without lock, for suture up to 7/0. | Without lock | 185 mm | Straight | 7 1/4" | FD244R | — | FM526R | — | Up to 7/0 | — | — |
| FM527R - Dia Dust® Micro Needle Holder, straight, 210 mm (8 1/4"), without lock, for suture up to 7/0Straight, without lock, for suture up to 7/0. | Without lock | 210 mm | Straight | 8 1/4" | — | — | FM527R | — | Up to 7/0 | Yes | — |
| FM528R - Dia Dust® Micro Needle Holder, straight, 145 mm (5 3/4"), without lock, for suture up to 5/0Straight, without lock, for suture up to 5/0. | Without lock | 145 mm | Straight | 5 3/4" | — | — | FM528R | — | Up to 5/0 | — | — |
Aesculap Dental
Contactez directement Aesculap Dental pour demander les prix, des échantillons et les délais de livraison pour DIADUST MIKRO-NADELHALTER MIT RUNDGRIFF.
