Can the phototherapy module be added to the standard VL-22 model later?

The VL-22F model comes with the integrated LED phototherapy module. Please consult with the manufacturer regarding field upgrades for existing VL-22 units.

Is the HM-13 heated pad compatible with other equipment?

Yes, the HM-13 is a standalone device and can be used independently of the VL-22 heated bed.

What is the maintenance requirement for the LED phototherapy light source?

The LED module is designed for long-term use with a guaranteed efficiency of at least 60,000 operating hours.

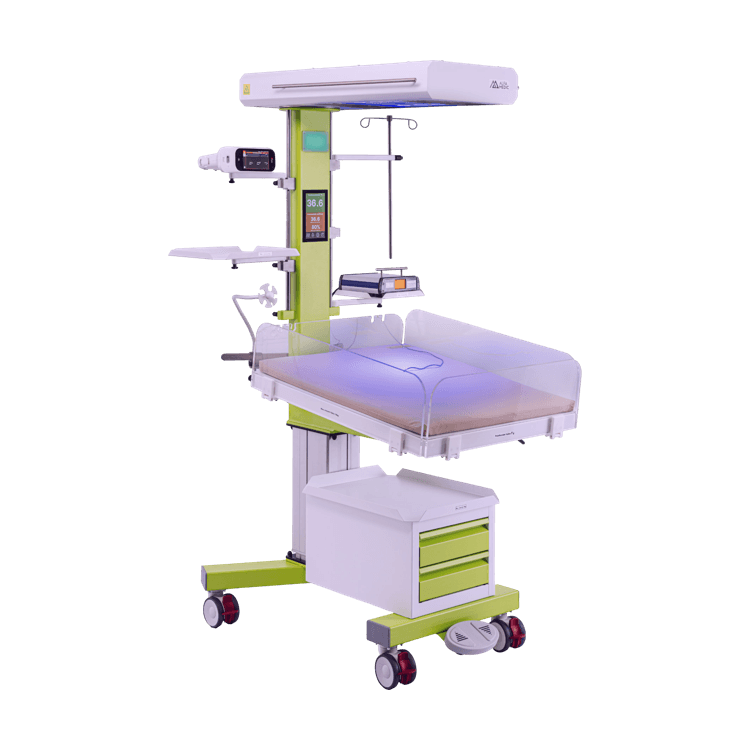

VL-22 Heated Bed for Newborns and Infants

Name: VL-22 Heated Bed for Newborns and Infants
Brand: ALFAMEDIC s.r.o.

VL-22 Heated Bed for Newborns and Infants | ALFAMEDIC s.r.o. | mytradeloop

Overview

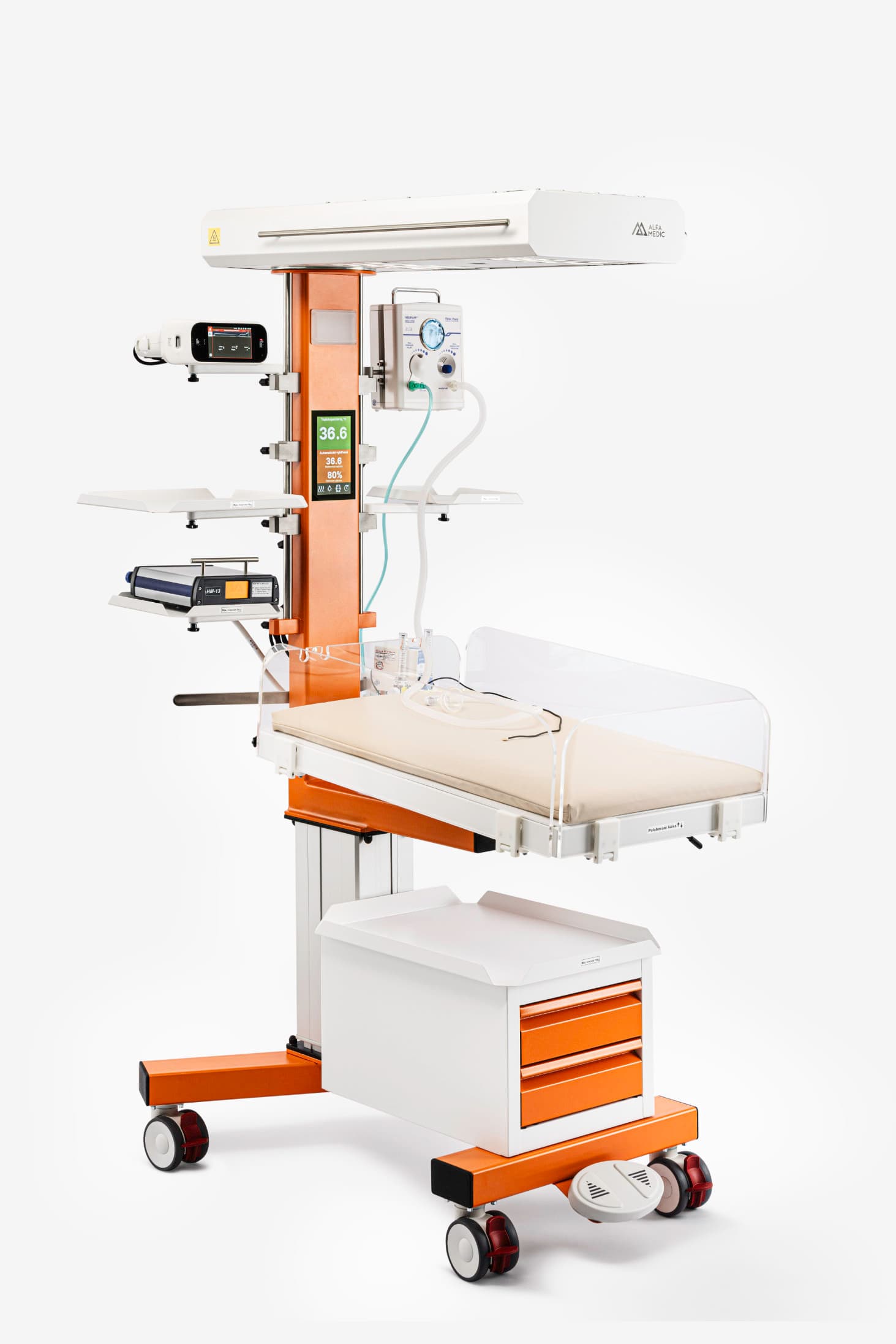

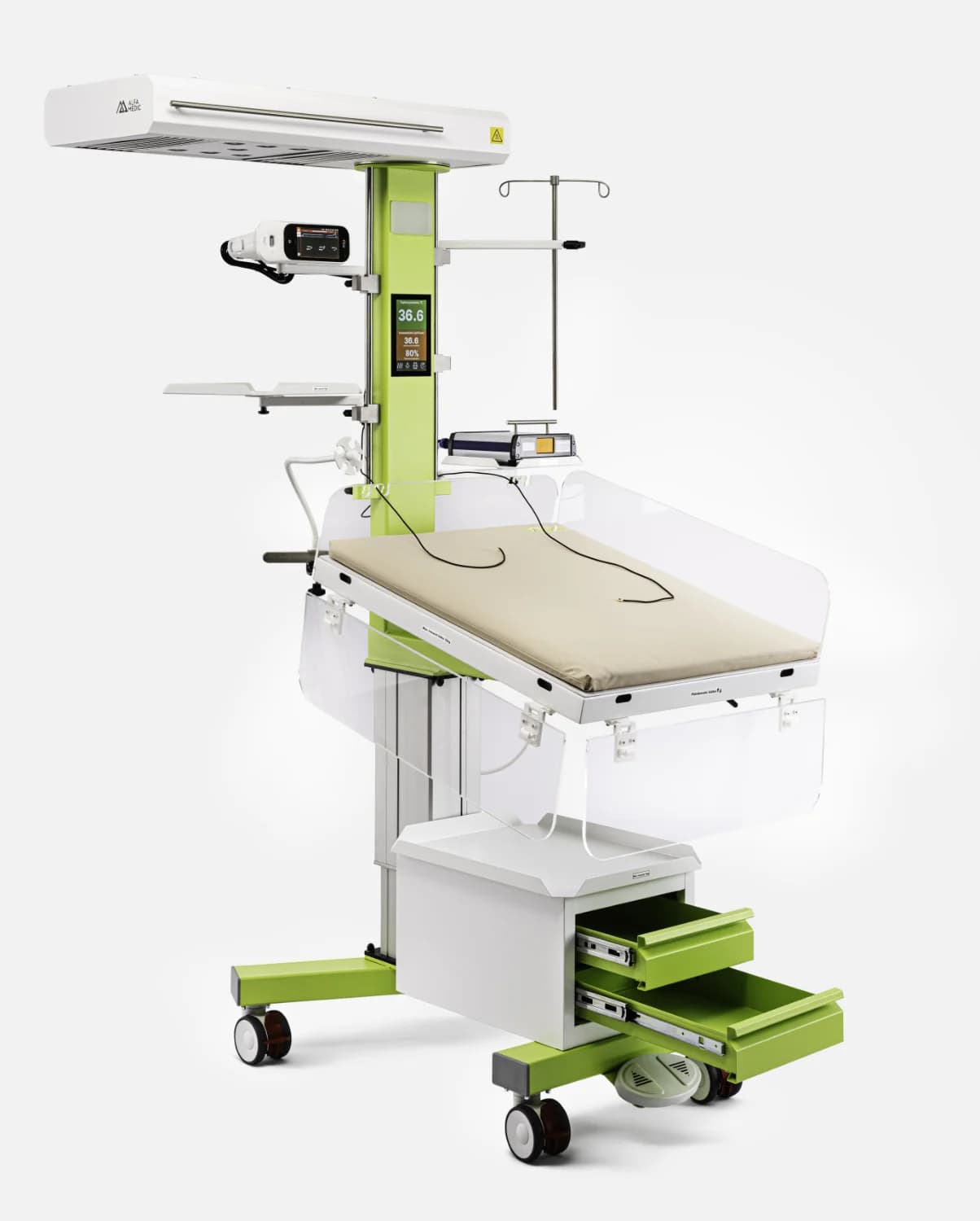

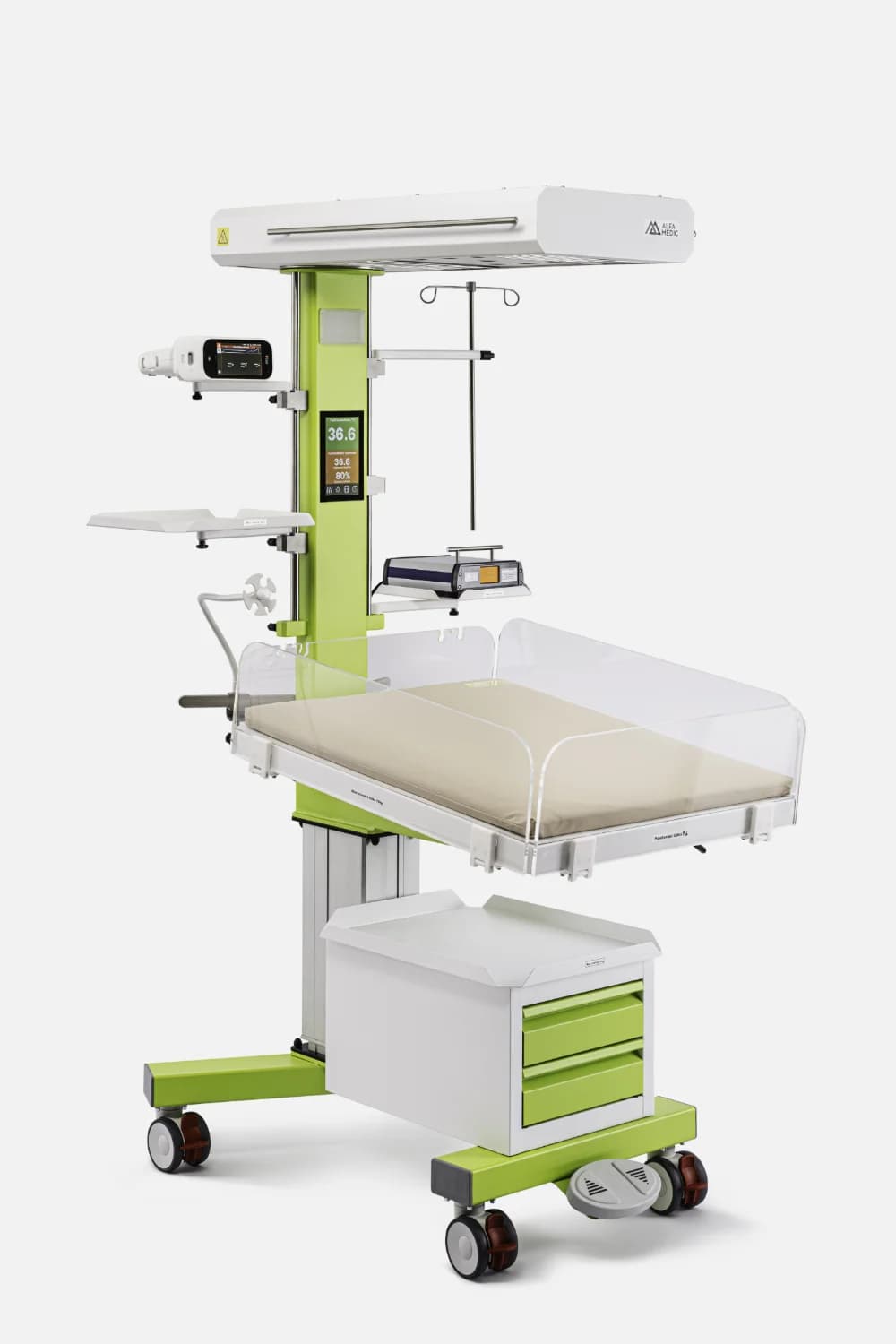

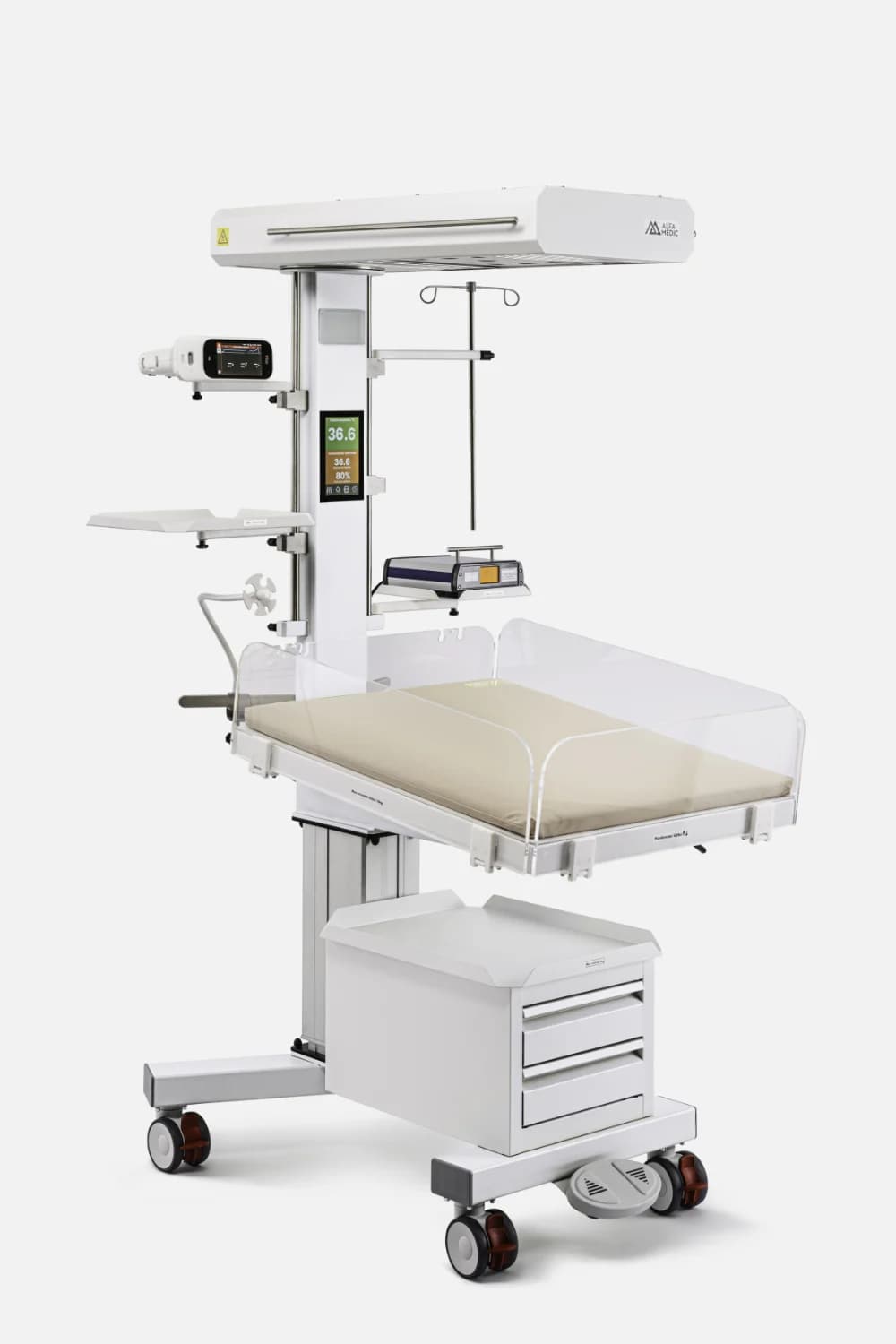

The VL-22 is a versatile heated bed designed to maintain thermal balance in newborns and infants across standard and intensive care settings. It features integrated LED phototherapy for hyperbilirubinemia treatment and supports a wide range of clinical applications from delivery rooms to surgical procedures.

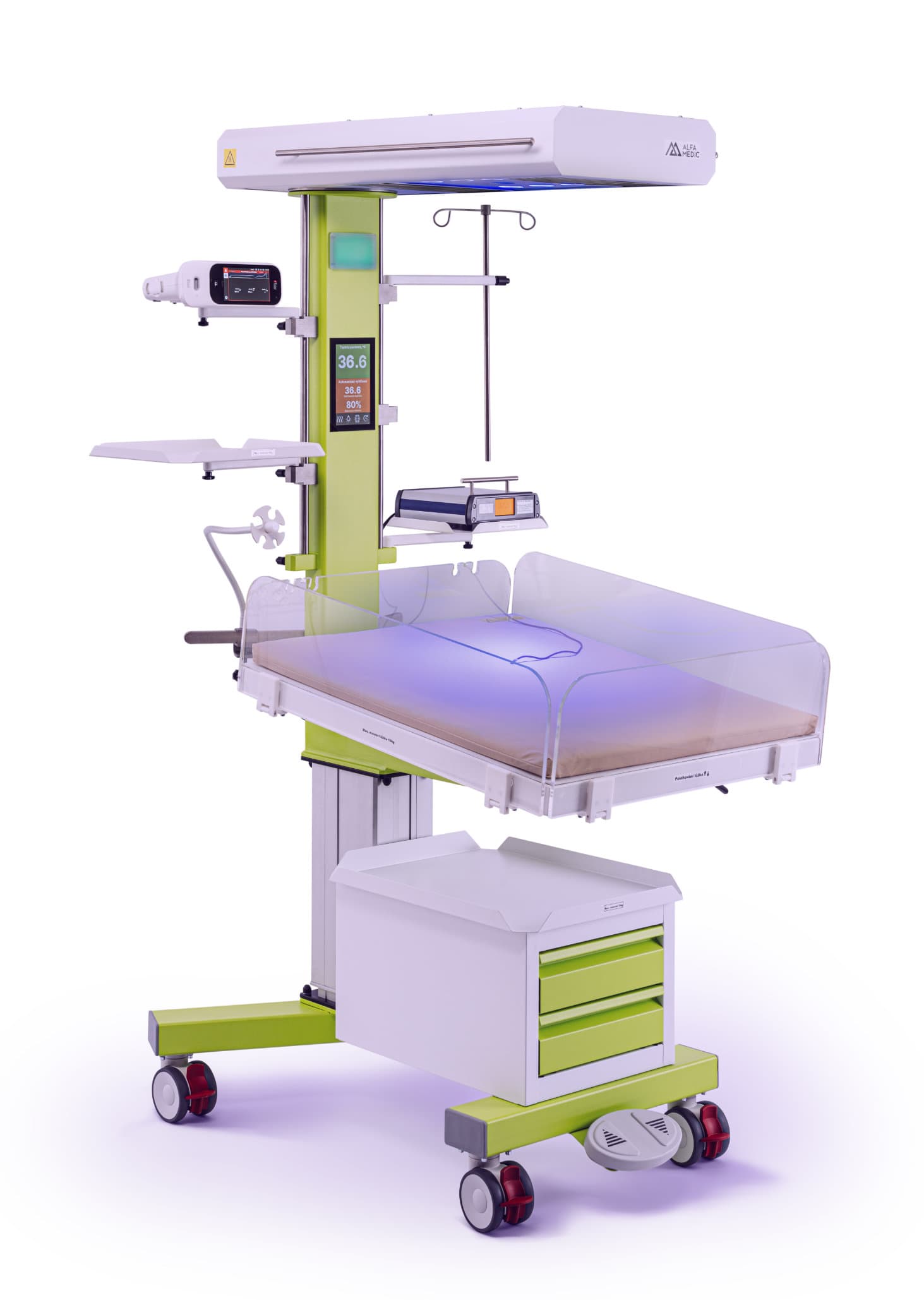

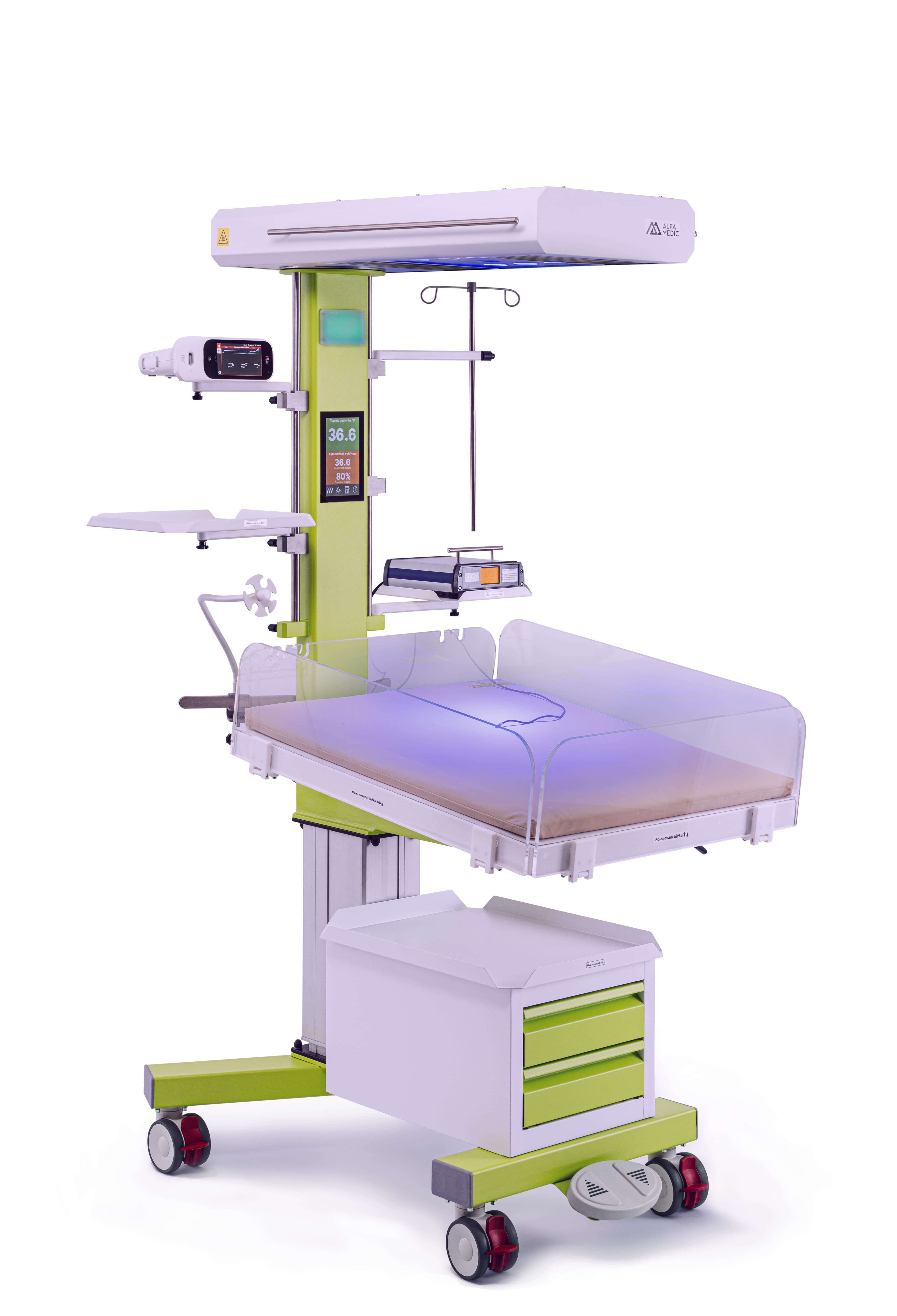

Integrated led phototherapy
90 degree swivel heater
Trendelenburg positioning

Contact manufacturer View catalog

Product highlights

Touch LCD display with intuitive control of heating, lighting, and APGAR timer

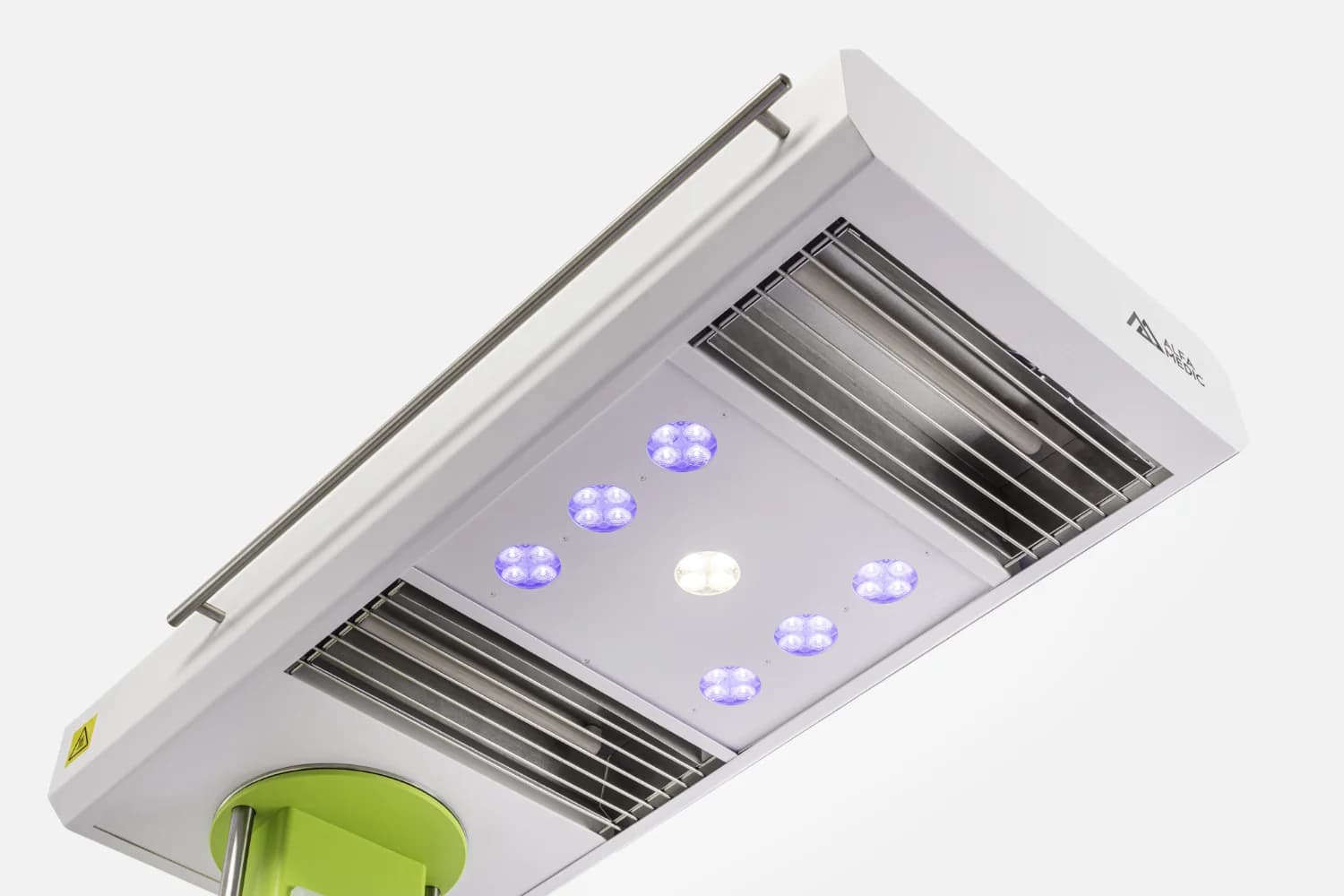

Integrated LED phototherapy module (450-460 nm, 50 μW/cm²/nm)
Motorized height adjustment via foot controller
Trendelenburg and Reverse Trendelenburg positioning with graphical indication
Mobile stand with double-braked wheels and side locking
Two electrical sockets for auxiliary equipment

Product details

Usage	Reusable
Supply voltage	230/50 V/Hz
Max power consumption	900 W
Heating element power	2 x 400/230 W/V
Temperature control range	30-37 °C
Height adjustment range	300 mm
Overall dimensions (H x W x D)	1900 x 700 x 1050 mm
Weight	approx. 90 kg

Classification

Specialties
Applications
Reusability
Patient Type
Technology
Power Source
Configuration

Competitive advantages

Competitive Advantage

Upper heating module swivels 90 degrees to both sides for flexible access
LED phototherapy module with 60,000-hour guaranteed efficiency
Dual ceramic heating elements with independent front-element control for operator comfort
Integrated electronic servo-regulator with dual temperature sensors

Regulatory Certification

Class I protection
Class IIb risk classification

1 of 9

Variants

Options & accessories

Mattress Type

Color Combinations

Heated Pad HM-13

Spot Examination Light

Oxygen Micro-tent

T-Resuscitator

MDM Safety Glasses

Documents

VL-22 Heated Bed Brochure

ALFANEST Neonatal Bed Brochure

VL-22 Heated Bed Brochure
