Overview

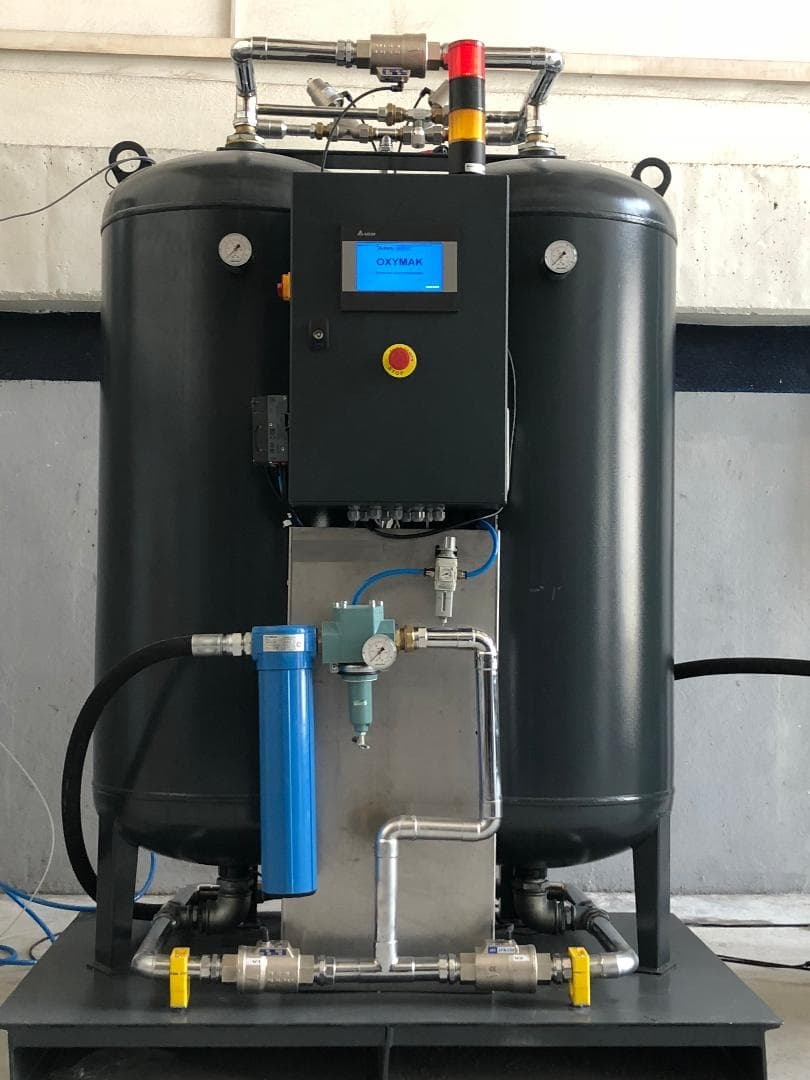

The OXYMAK/NAVOX Oxygen Generator is an on-site oxygen production system using Pressure Swing Adsorption (PSA), also called an air separation system. Atmospheric air (21% O2, 78% N2, ~1% argon/CO2) is fed into pressurized tanks containing zeolites that adsorb nitrogen under pressure while allowing oxygen to pass, producing a continuous oxygen stream. The complete system comprises an oxygen concentrator, air compressor, air dryer, air receiving tank, O2 receiving tank, and a filter group (bacterial filters, active carbon filter) suitable for medical use. Customers can purchase only the oxygen concentrator and source the compressor, dryer, and tanks locally, or take the full integrated system from AGK. Nitrogen generators are also available on request under the NITROMAK brand.

Up to 96 purity
Full plc automation
On site oxygen production

Contact manufacturer View catalog

Product highlights

PSA (Pressure Swing Adsorption) technology using zeolite adsorption beds

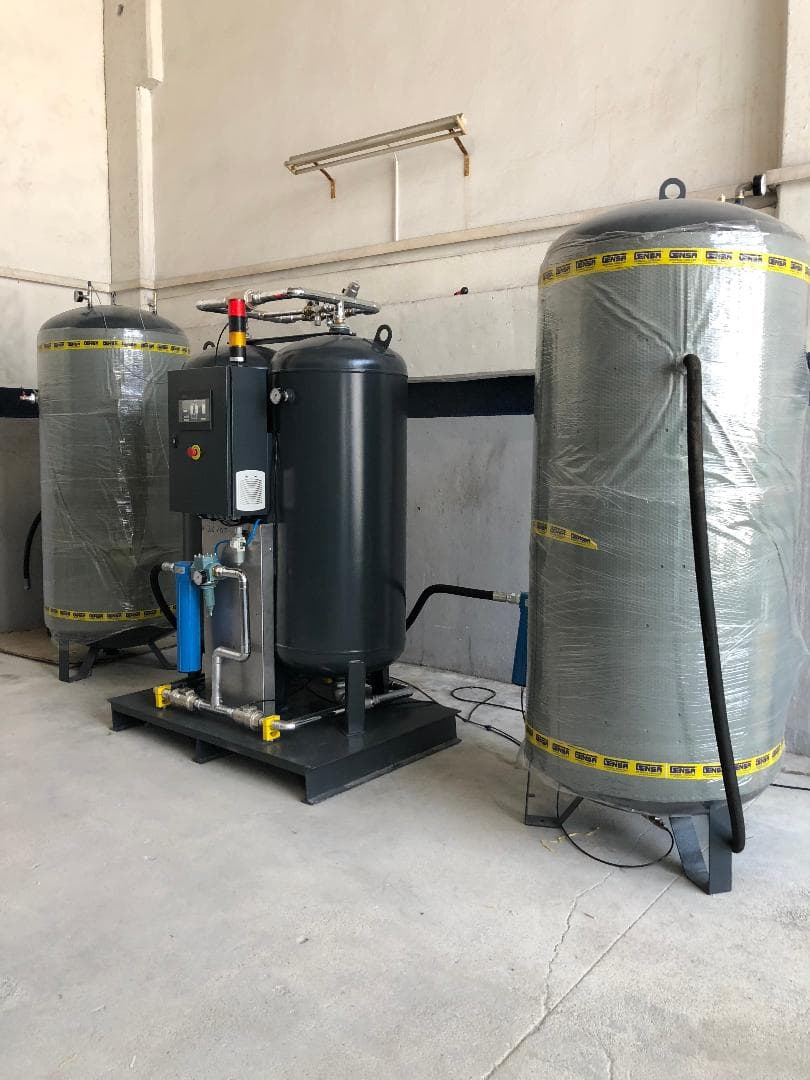

System includes oxygen concentrator, air compressor, air dryer, air receiving tank, O2 receiving tank, and filter group
Filter group includes bacterial filters and active carbon filter for medical use
Purity measured via zirconium O2 sensors

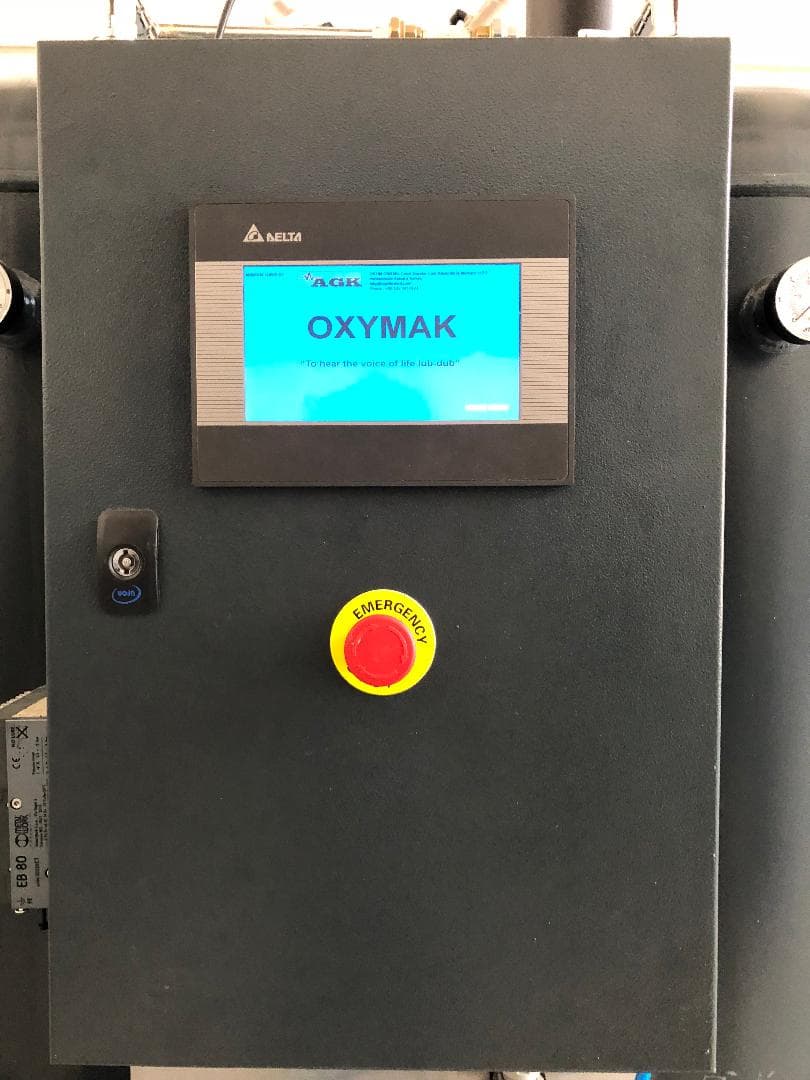

PLC control with touch-screen monitoring of all parameters
Multilingual interface: Turkish/English/Arabic
Nitrogen generators available on request under the NITROMAK brand
Can be supplied as a standalone concentrator or as a complete turnkey system

Product details

Technology	PSA (Pressure Swing Adsorption)
Purity	90-96 %
Purity (with extra cost option)	up to 99 %
Output pressure	1-6 bar
Power (O2 concentrator)	220 VAC, 50 Hz, single phase
Power (air compressor)	380 VAC, 50 Hz, three phase
Control	PLC with touch screen, monitoring all parameters on screen
Purity measurement	Zirconium O2 sensors
Interface language	Turkish/English/Arabic

Classification

Specialties
Applications
Connectivity
Technology
Patient Type
Configuration
Reusability

Competitive advantages

Competitive Advantage

Full automation, ease of maintenance
High fail-safety and reliability
Minimum operator control required during operation
Quick system startup and shutdown
High purity of product oxygen up to 96% (up to 99% available on customer request at extra cost)
Low operating costs
Easy to install, operate and maintain

1 of 3

Variant	Compressor (HP)	Air Usage (Nm3/min)	Oxygen Output (Nm3/h)
OXYMAK-1 / NAVOX-1Smallest capacity PSA oxygen generator model in the range.	5.0	0.32	1.3
OXYMAK-2 / NAVOX-2PSA oxygen generator model.	7.5	0.55	2.4
OXYMAK-4 / NAVOX-4PSA oxygen generator model.	10.0	0.87	4.5
OXYMAK-6 / NAVOX-6PSA oxygen generator model.	15.0	1.26	6.3
OXYMAK-12 / NAVOX-12PSA oxygen generator model.	25.0	2.37	12.4
OXYMAK-16 / NAVOX-16PSA oxygen generator model.	35.0	3.31	16.0
OXYMAK-20 / NAVOX-20PSA oxygen generator model.	50.0	4.21	20.5
OXYMAK-26 / NAVOX-26PSA oxygen generator model.	60.0	5.52	26.0
OXYMAK-32 / NAVOX-32PSA oxygen generator model.	75.0	6.83	32.9
OXYMAK-40 / NAVOX-40PSA oxygen generator model.	90.0	8.28	39.4
OXYMAK-50 / NAVOX-50PSA oxygen generator model.	120.0	11.04	52.6
OXYMAK-75 / NAVOX-75Largest capacity PSA oxygen generator model in the range.	175.0	16.56	78.9

Variants

Options & accessories

Purity

Configuration

Gas type

Air Compressor

Air Dryer

Air Receiving Tank

O2 Receiving Tank

Filter Group

Source this product

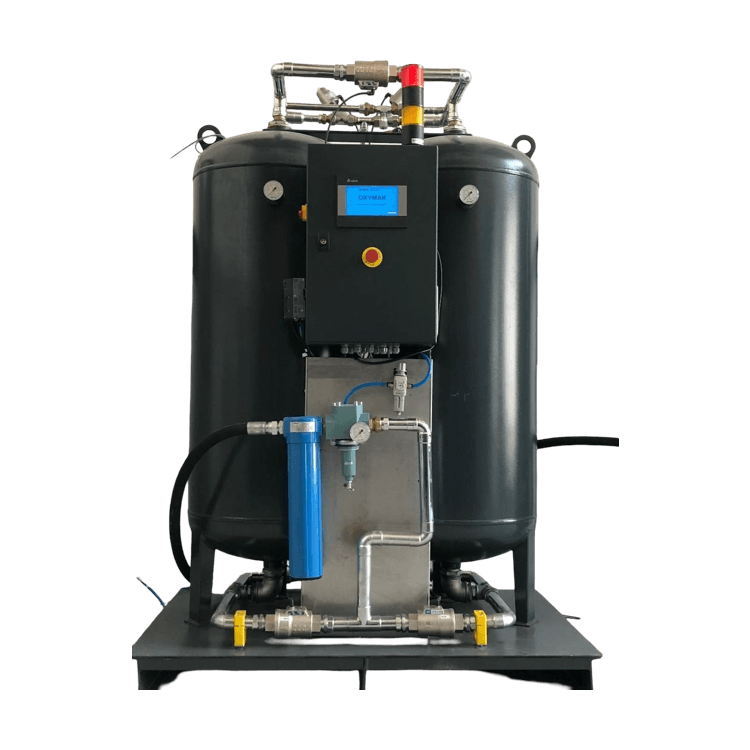

OXYMAK / NAVOX PSA Oxygen Generator
