Computer-controlled pneumatic tube system for hospitals
Air-Control
- Windows based control
- Real time visualization
Galvanised Steel · Stainless Steel
Inline-tube sprinkler system · Dry Scrubber for odor removal · Waste compactor units · Collection trolleys
Mobile units for receiving transported waste or laundry at collection points.
Integrated units to reduce the volume of collected waste.
System component for the removal of infectious gases and foul odors.
Air-Log International GmbH
Connect directly with Air-Log International GmbH to request pricing, samples and lead times for Automatic Waste and Laundry System.
Pneumatic Waste and Laundry Transport System

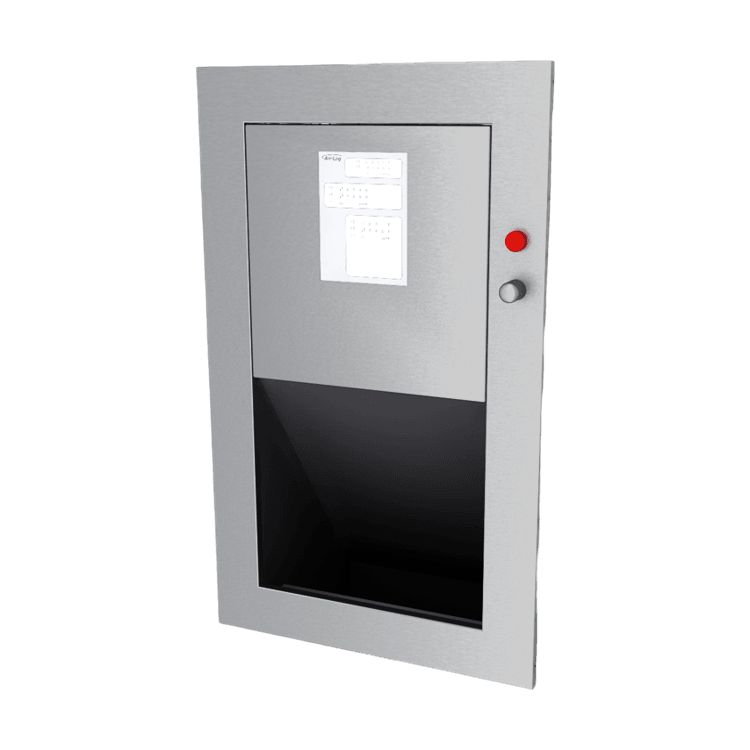

The Automatic Waste and Laundry System (AWLS) is a pneumatic transport solution designed for hospitals and healthcare facilities to move waste and soiled linen bags through a steel tube network. By automating the disposal process, the system minimizes infection risks, eliminates odor pollution, and optimizes facility hygiene.
| Manufacturer designation | Automatic Waste and Laundry System (AWLS) |
|---|---|
| System Capacity | Up to 5 bags per transport |
| Loading Capacity | 10 - 25 kg |
| Tube Diameter | 50 - 1250 mm |
| Blower Power | 50 - 100 HP |
| Blower Air Flow | 11000 m3/h |
| Compressor Pressure | 4 bar |

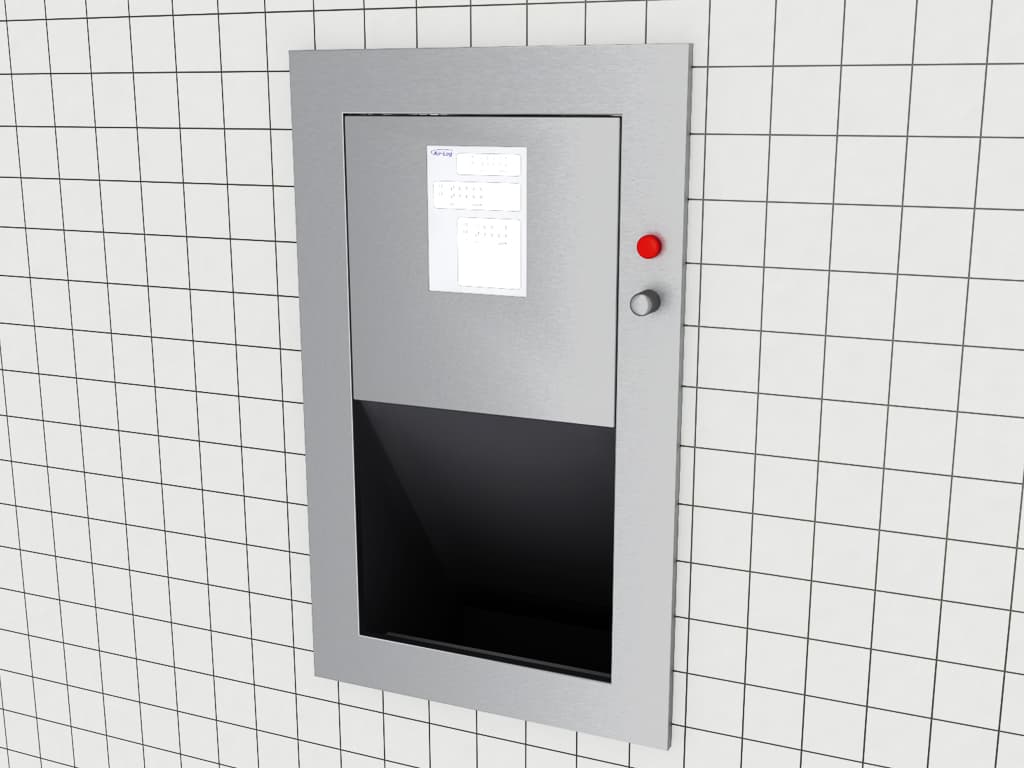

Fully automated loading station with pneumatic sliding doors and RFID access.
Cost-effective loading station utilizing manual door operation.
