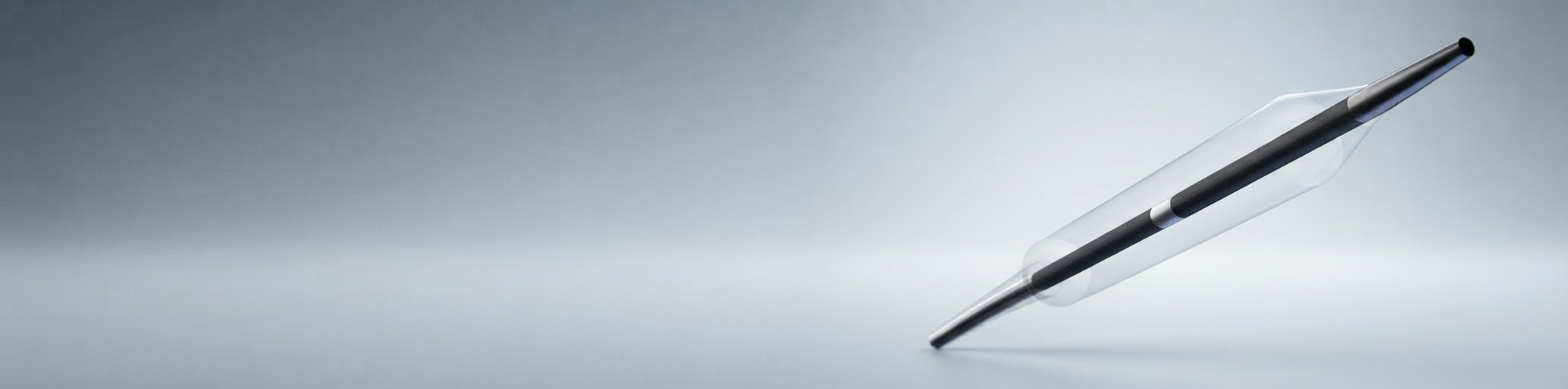

CTO Balloon Dilatation Catheter
A closer look at what sets this product apart.

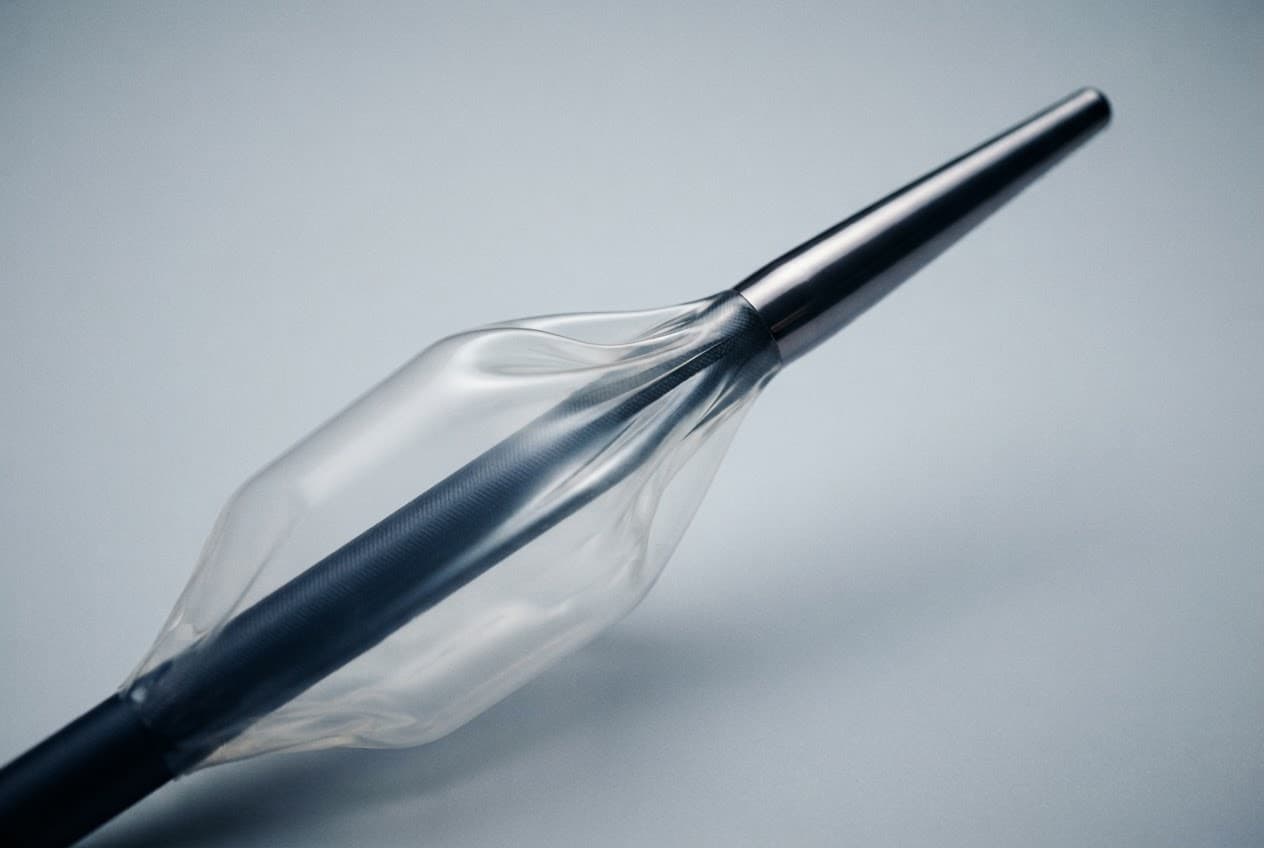

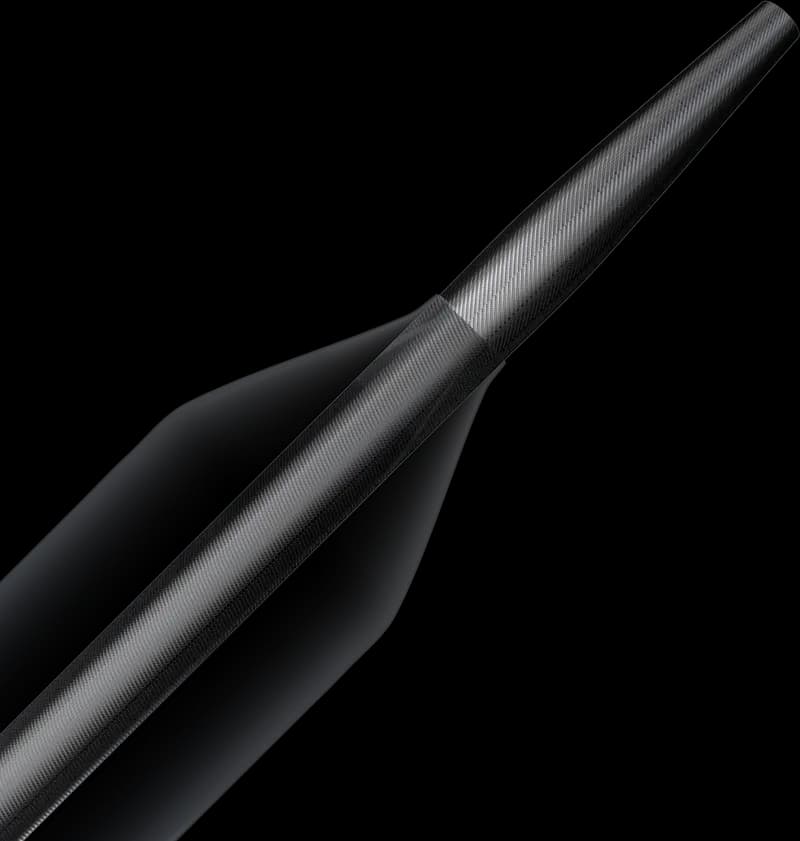

A tapered 4 mm long tip (among the thinnest balloon tips in the world) helps cross the most calcified chronic total occlusions.

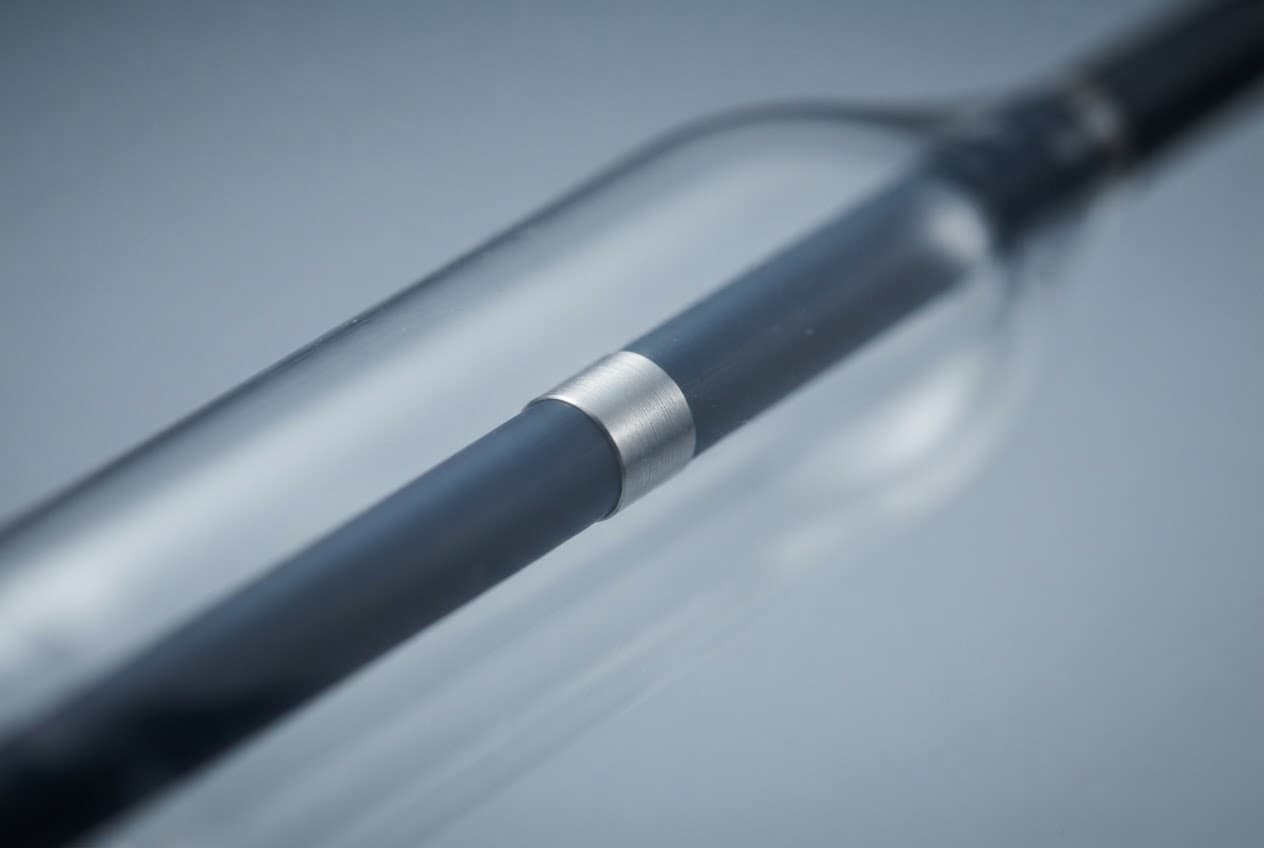

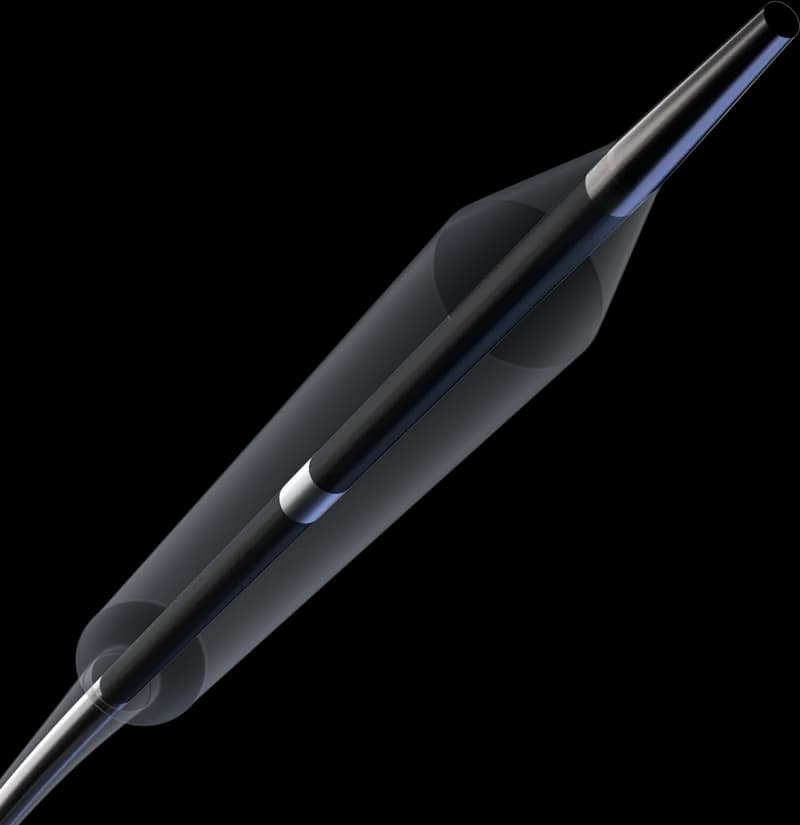

A single mid marker gives good visibility and an optimal crossing profile during CTO recanalization.

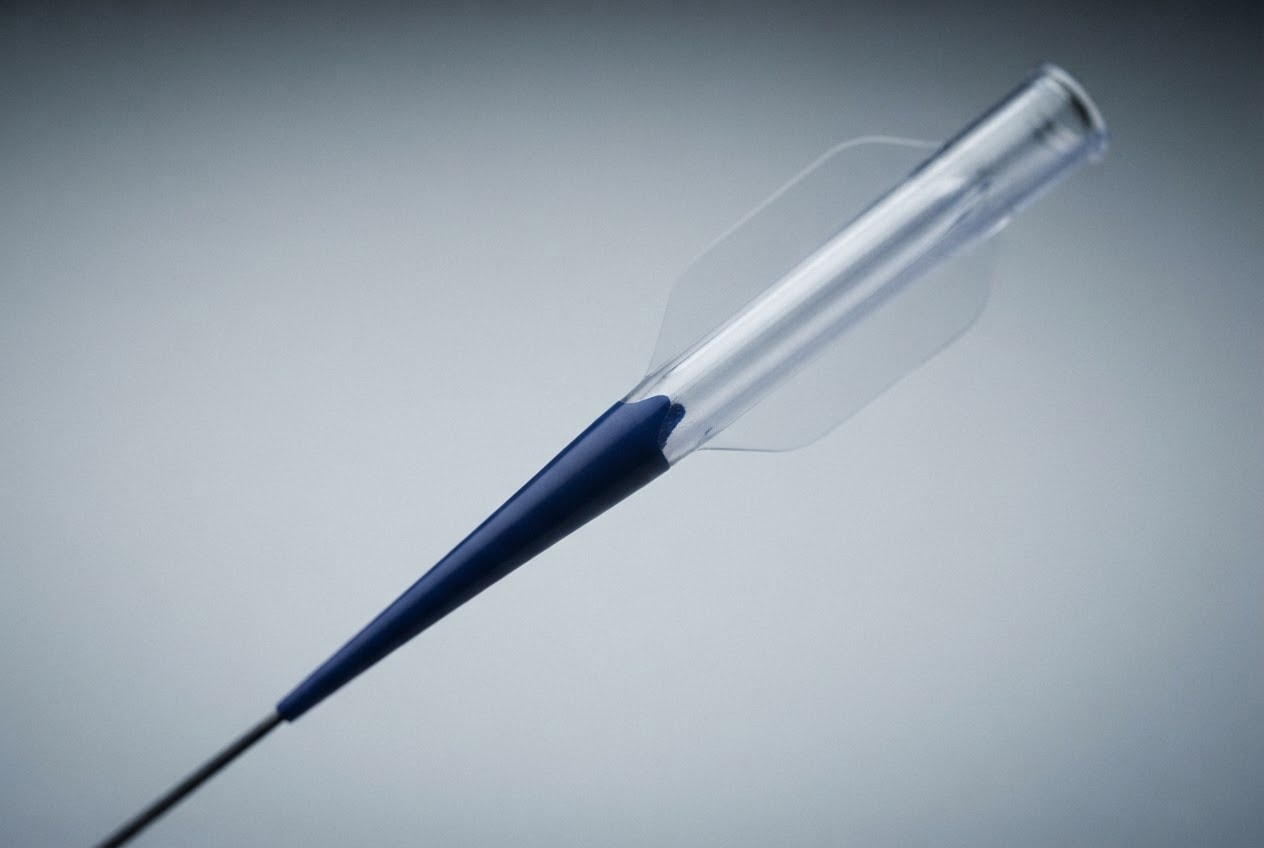

Rapid-exchange design for fast single-operator catheter exchange; guiding-catheter compatible at 5 F / 0.056".
Other versions of this product, each with its own page.
| Variant | Balloon length | Balloon diameter | Catalogue number |
|---|---|---|---|
| Across CTO 1.1 mm x 10 mm1.1 mm diameter, 10 mm length CTO balloon catheter. | 10 mm | 1.1 mm | 110100480 |
| Across CTO 1.1 mm x 15 mm1.1 mm diameter, 15 mm length CTO balloon catheter. | 15 mm | 1.1 mm | 110150480 |
| Across CTO 1.1 mm x 20 mm1.1 mm diameter, 20 mm length CTO balloon catheter. | 20 mm | 1.1 mm | 110200480 |
Acrostak
Connect directly with Acrostak to request pricing, samples and lead times for Across CTO.

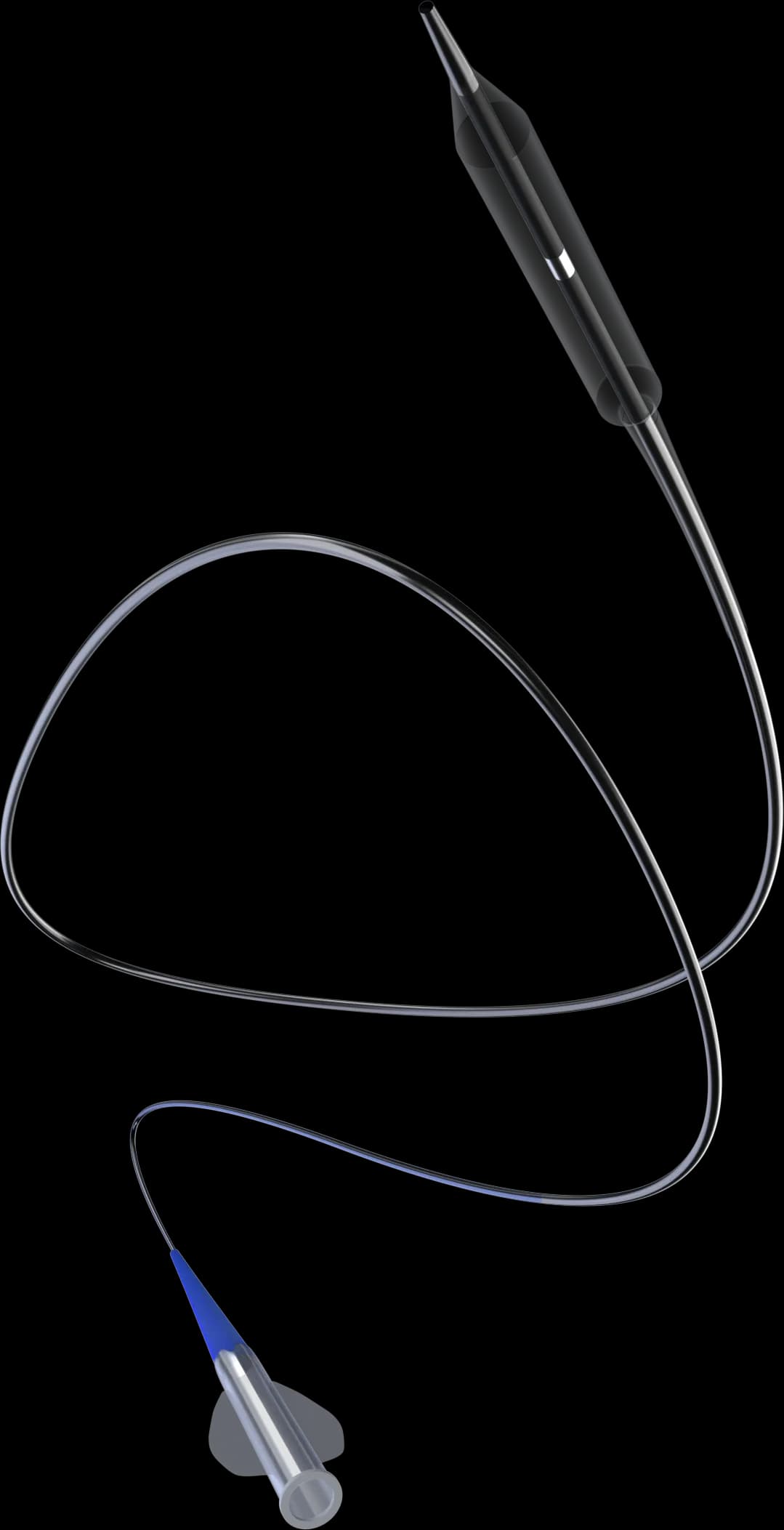

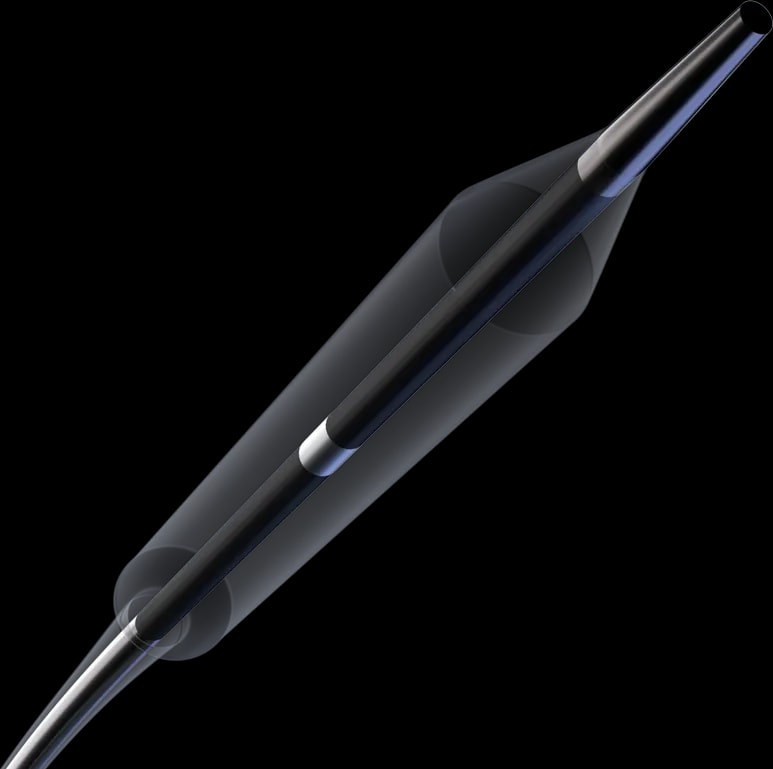

Across CTO is a coronary CTO (Chronic Total Occlusion) balloon dilatation catheter designed to reach, cross, and restore blood flow through the most challenging chronic total occlusions. Its tapered 4 mm long tip is described as among the thinnest balloons in the world, and a Rated Burst Pressure of up to 20 atm combined with puncture resistance helps interventional cardiologists manage the most calcified lesions, including circumferential ones.
| Usage | single-use interventional coronary balloon dilatation catheter |
|---|---|
| Tip Length | 4 mm |
| Entry Profile | 0.016 in |
| Guiding Catheter compatibility | 5F / 0.056 in |
| Maximum guidewire size | 0.014 in |
| Usable Length | 138 cm |
| Marker | Single mid marker (1) |
| Nominal Pressure (NP) | 11 atm |
| Rated Burst Pressure (RBP) | 17 atm (1.1 mm and 1.5 mm balloons) / 20 atm (2.0 mm balloon) |
| Compliance chart - 1.1 mm balloon (Atm : Diameter) |
| 5:1.04mm, 7:1.10mm, 9:1.13mm, 11(NP):1.13mm, 13:1.20mm, 15:1.23mm, 17(RBP):1.28mm, 19:1.38mm, 20:n.a, 21:n.a |
| Compliance chart - 1.5 mm balloon (Atm : Diameter) | 5:1.40mm, 7:1.43mm, 9:1.47mm, 11(NP):1.47mm, 13:1.55mm, 15:1.60mm, 17(RBP):1.65mm, 19:1.69mm, 20:1.71mm, 21:1.73mm |
|---|
| Compliance chart - 2.0 mm balloon (Atm : Diameter) | 5:1.82mm, 7:1.88mm, 9:1.94mm, 11(NP):1.94mm, 13:2.07mm, 15:2.13mm, 17:2.18mm, 19:2.22mm, 20(RBP):2.24mm, 21:2.25mm |
|---|
| Across CTO 1.5 mm x 10 mm1.5 mm diameter, 10 mm length CTO balloon catheter. |
|---|
| 10 mm |
| 1.5 mm |
| 150100480 |
| Across CTO 1.5 mm x 15 mm1.5 mm diameter, 15 mm length CTO balloon catheter. | 15 mm | 1.5 mm | 150150480 |
|---|
| Across CTO 1.5 mm x 20 mm1.5 mm diameter, 20 mm length CTO balloon catheter. | 20 mm | 1.5 mm | 150200480 |
|---|
| Across CTO 2.0 mm x 10 mm2.0 mm diameter, 10 mm length CTO balloon catheter. | 10 mm | 2.0 mm | 200100480 |
|---|
| Across CTO 2.0 mm x 15 mm2.0 mm diameter, 15 mm length CTO balloon catheter. | 15 mm | 2.0 mm | 200150480 |
|---|
| Across CTO 2.0 mm x 20 mm2.0 mm diameter, 20 mm length CTO balloon catheter. | 20 mm | 2.0 mm | 200200480 |
|---|
