Name: RTS Rescue & Transport System
Brand: PAX-Bags (X-CEN-TEK GmbH & Co. KG)

RTS Rescue & Transport System | PAX-Bags (X-CEN-TEK GmbH & Co. KG) | mytradeloop

نظرة عامة

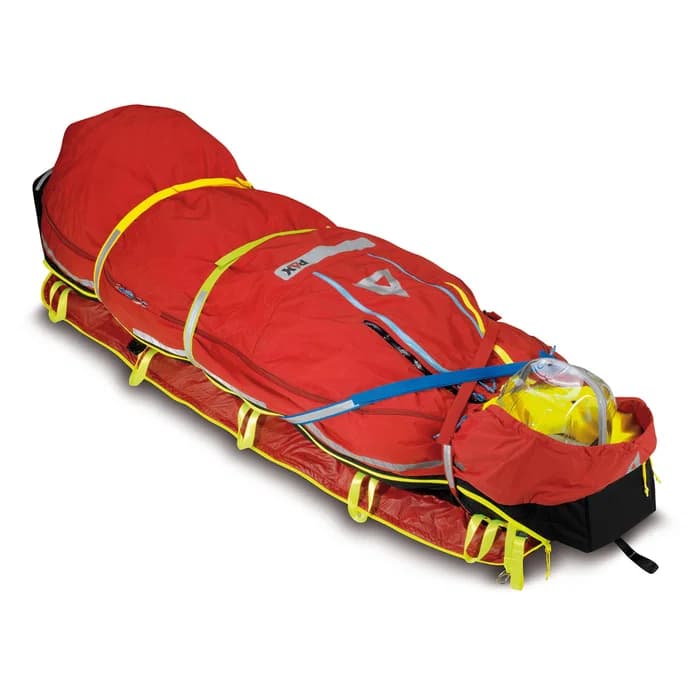

The PAX RTS (Rettungs- und Transportsystem) range provides comprehensive patient rescue and transport solutions from civilian EMS to tactical MEDEVAC environments. Variants include seasonal cocoon systems for weather protection (Summer, Winter, 4 Seasons), tactical Cocoon models with integrated aluderm wound dressing and absorbent lining, and the RTS AIR helicopter rescue bag certified to EUROCAE ED-14G / RTCA DO-160G for helicopter external-load transport. All applicable variants are EU MDR 2017/745 medical devices conforming to DIN EN 1865.

Medevac certified
Helicopter ready
Aluderm wound lining
Tuv sud tested
6.5 l absorption
4 seasons use
Mdr certified

أبرز ميزات المنتج

Seasonal and tactical variants cover all operational environments
RTS Cocoon: detachable hood for additional head and heat protection
Access panels on all sides with multiple zip sliders for patient assessment without repositioning
Patient remains in system from Point of Injury (POI) to trauma centre: no repositioning required
RTS AIR: Velcro-free design protects safety-critical winching ropes and straps
RTS AIR: circumferential zip allows single-person operation
RTS AIR: redundant loop system for helicopter external-load harness
4 Seasons: clip-in insulation blanket for year-round use; warmth blanket included in delivery
RTS Winter/Summer: patient-adaptable head opening, handles per EN 1865
Segel (sail/drogue) accessory for RTS AIR to influence flight characteristics
Washable at up to 40°C (Winter/Summer/4 Seasons variants; approved detergent: Eltra 40 by Ecolab)

تفاصيل المنتج

المزايا التنافسية

Competitive Advantage

RTS AIR helicopter rescue bag certified to EUROCAE ED-14G / RTCA DO-160G and tested by TÜV SÜD: usable in flight operations without additional documentation
RTS Cocoon tactical: integrated aluderm wound dressing lining with absorbent layer capable of retaining up to 6.5 litres of fluid without returning to patient
RTS Cocoon light tactical: ultra-compact, only 3 cm thick when vacuum-packed
4 Seasons version eliminates Velcro closures, using zip openings for safer operation
Colour-coded fixation straps for fast patient securing
Carrying handles conform to EN 1865 for safe transport over difficult terrain

1 من 4

الإصدار	Width	Colour	Length	Weight	Material	Configuration	Catalogue number	Max load	Width (open)	Length (open)	Fluid absorption	Vacuum-packed thickness
PAX RTS 4 Seasons Rescue & Transport SystemAll-season rescue system with clip-in insulation blanket, zip closures (no Velcro), colour-coded straps, EN 1865 handles, 60 × 210 cm, 4 kg.	60 cm	Red	210 cm	4.00 kg	PAX-Dura Light	4 Seasons	276780801	—	—	—	—	—
PAX RTS Cocoon TacticalMEDEVAC tactical cocoon with aluderm wound lining, 6.5 L absorption, 10 handles, vacuum-packed, max 250 kg, opens to 80 × 200 cm.	—	Black	—	3.64 kg	PAX-Light	Cocoon Tactical	284430403	250 kg	80 cm	200 cm	6.5 litres	—
PAX RTS Cocoon Light TacticalUltra-light tactical MEDEVAC cocoon, PAX-Rip Tec Alu + aluderm lining, 1.5 L absorption, 3 cm vacuum-packed thickness, 80 × 210 cm, 0.85 kg.	80 cm	Coyote brown	210 cm	0.85 kg	—	Cocoon Light Tactical	288096944	—	—	—	1.5 litres	3 cm
PAX RTS SummerSummer version rescue and transport system with patient-adaptable head opening, EN 1865 handles, 36 × 206 cm (packed 36 × 48 × 206 cm), 2.70 kg.	36 cm	High-visibility yellow	206 cm	2.70 kg	PAX-Light	Summer	275500404	—	—	—	—	—
PAX RTS WinterWinter version rescue and transport system with extra insulation, patient-adaptable head opening, EN 1865 handles, 36 × 206 cm (packed 36 × 48 × 206 cm), 3.20 kg.	36 cm	High-visibility yellow	206 cm	3.20 kg	PAX-Light	Winter	275510404	—	—	—	—	—
PAX Rettungssack RTS AIR (SKU: 146110801S)Helicopter rescue bag without Velcro, circumferential zip for single-person use, redundant winch loop system, EUROCAE ED-14G certified, 70 × 200 cm, 8.70 kg.	70 cm	Red	200 cm	8.70 kg	PAX-Dura	RTS AIR	146110801S	—	—	—	—	—
PAX Rettungssack RTS AIR (SKU: 146110851)Second variant of the PAX RTS AIR helicopter rescue bag; same specification: EUROCAE ED-14G certified, 70 × 200 cm, 8.70 kg.	70 cm	Red	200 cm	8.70 kg	PAX-Dura	RTS AIR	146110851	—	—	—	—	—

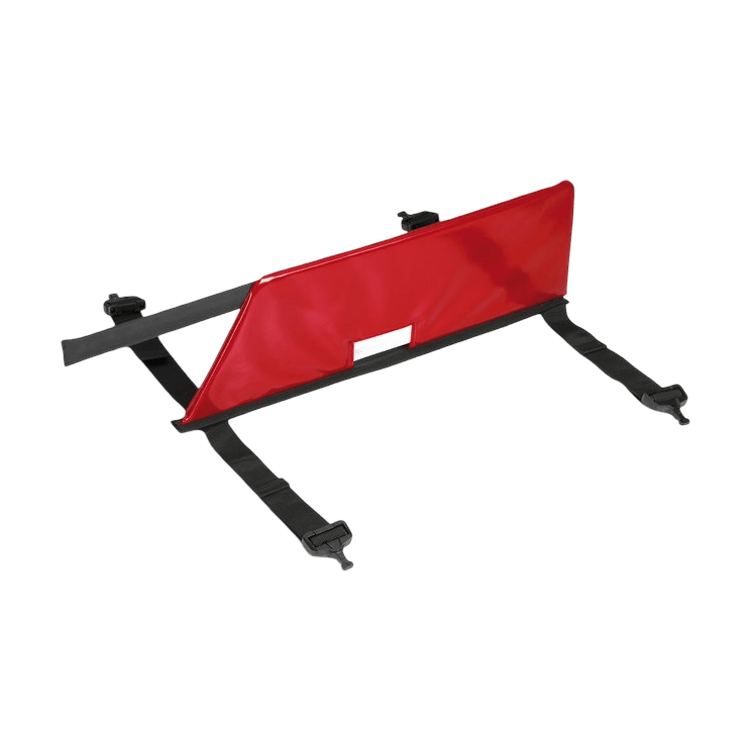

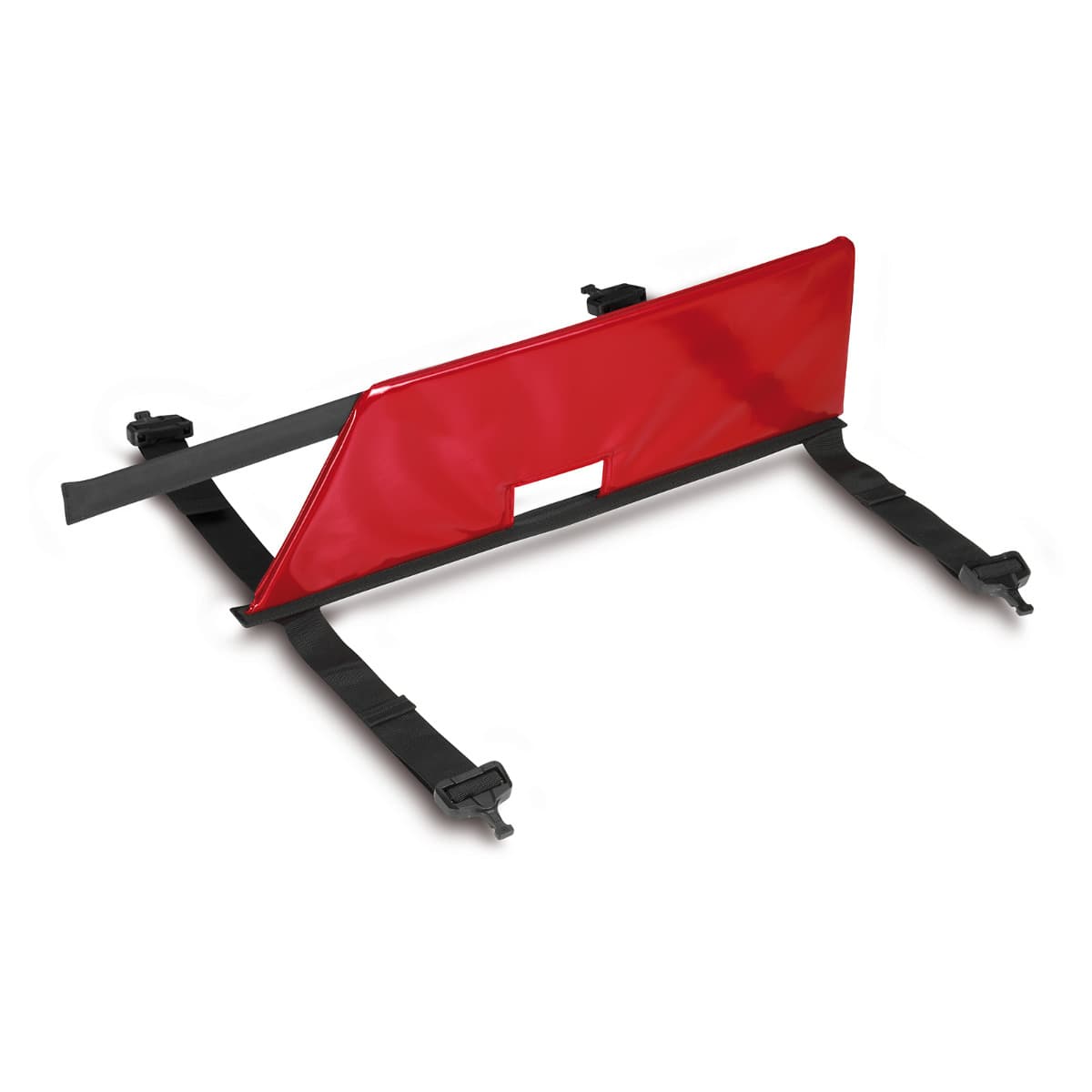

PAX Sail for RTS AIR (Segel für PAX Rettungssack RTS Air)Sail/drogue accessory for PAX RTS AIR to control flight characteristics during helicopter transport; PAX-Tec material, 1 kg.	—	Red	—	1.00 kg	PAX-Tec	Sail accessory for RTS AIR	160900301	—	—	—	—	—

تسمية الشركة المصنّعة	PAX RTS Rescue & Transport System
الاستخدام	Medical Device (EU MDR 2017/745)
RTS Cocoon tactical: open dimensions (W × L)	80 × 200 cm
RTS Cocoon tactical: packed dimensions (W × L × H)	50 × 40 × 12 cm
RTS Cocoon tactical: weight	3.64 kg
RTS Cocoon tactical: max load	250 kg
RTS Cocoon tactical: fluid absorption capacity	6.5 litres
RTS Cocoon light tactical: open dimensions (L × W)	210 × 80 cm
RTS Cocoon light tactical: weight	0.85 kg
RTS Cocoon light tactical: vacuum-packed thickness	3 cm
RTS Cocoon light tactical: fluid absorption	1.5 litres
RTS 4 Seasons: dimensions (W × L)	60 × 210 cm
RTS 4 Seasons: weight	4.00 kg
RTS Winter: dimensions (W × H × L)	36 × 48 × 206 cm
RTS Winter: weight	3.20 kg
RTS Summer: dimensions (W × H × L)	36 × 48 × 206 cm
RTS Summer: weight	2.70 kg
RTS AIR: dimensions (W × L)	70 × 200 cm
RTS AIR: weight	8.70 kg
Segel (sail for RTS AIR): weight	1.00 kg

الإصدارات

الخيارات والملحقات

Colour

PAX Sail (Segel) for RTS AIR

PAX Wärmedecke THX

PAX Power Pack 60/2

المستندات

CE Declaration of Conformity: PAX Rescue Bag RTS Air

PAX RTS Cocoon Flyer

Instructions for Use: PAX Rescue Bag RTS Air
