manual operator
Bedienungsanleitung 2mag MIX 4 MS V6.1 (DE)
German operator manual for the 2mag MIX 4 MS 4-position magnetic stirrer, version 6.1.
Multi-Position Magnetic Stirrer
High-performance magnetic stirring bar
PTFE-coated flexible stirring bar remover
High-performance magnetic stirring bar
manual operator
German operator manual for the 2mag MIX 4 MS 4-position magnetic stirrer, version 6.1.
manual operator
English operator manual for the 2mag MIX 4 MS 4-position magnetic stirrer, version 6.1.

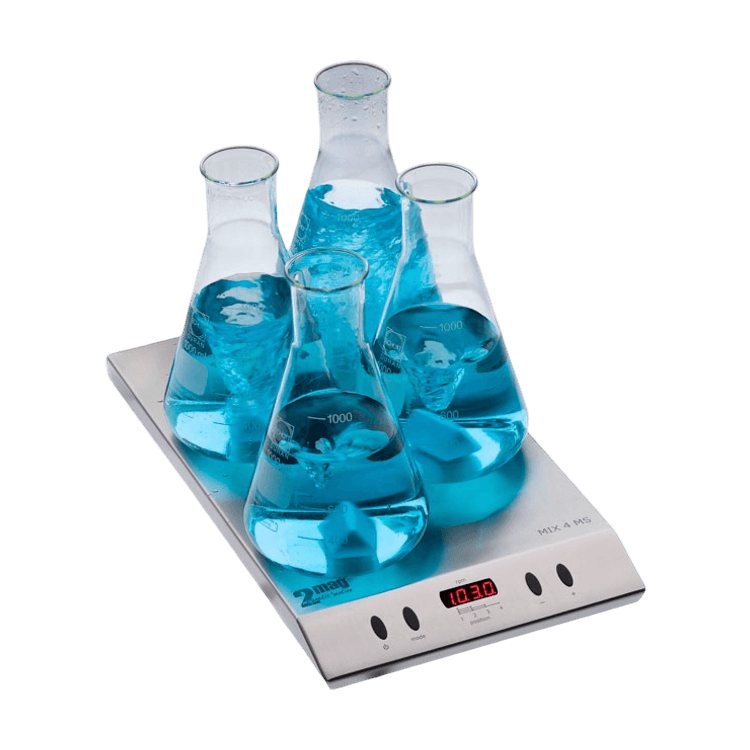

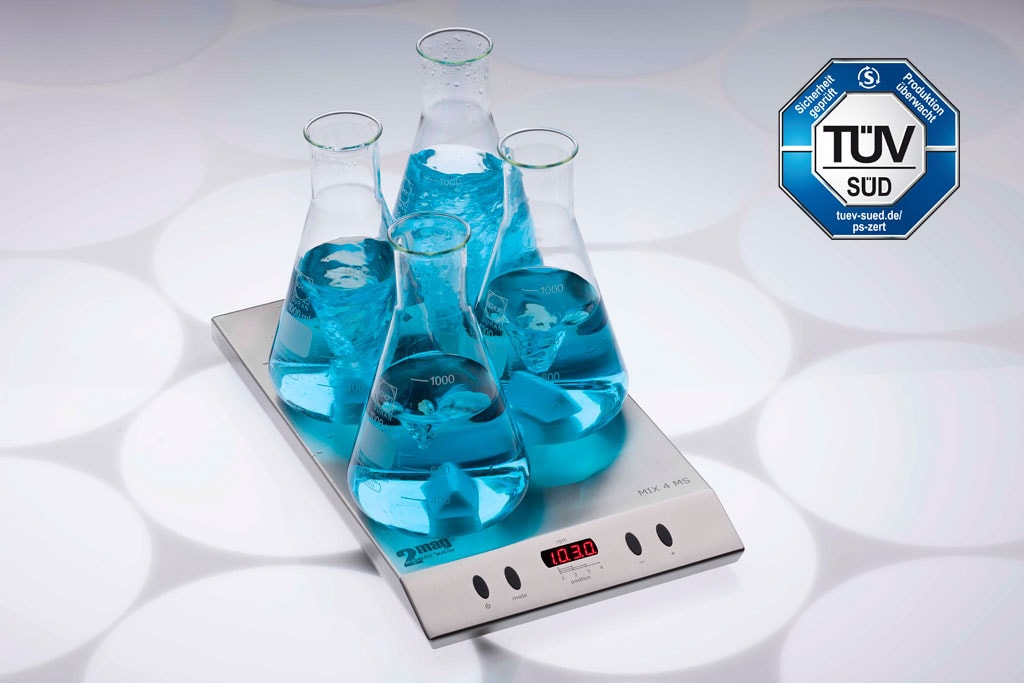

The MIX 4 MS is an ultra-flat, wear-free 2mag magnetic stirrer with 4 stirring positions, optimized for simultaneous use with 4 x 2,000 ml Erlenmeyer flasks. Its unique Master-Slave technology allows each stirring position to be independently set for speed and switched on/off, with one-button synchronization of all positions. It features a 100% wear- and maintenance-free induction drive and a fully potted IP65 stainless steel housing.
2mag AG
تواصل مباشرةً مع 2mag AG لطلب الأسعار والعينات ومدد التوريد لـ MIX 4 MS.
| Number of stirring positions | 4 |
|---|---|
| Stirring position spacing | 140 mm |
| Stirring volume per position | 1-3,000 ml |
| Speed range | 100-2,000 rpm |
| Max. stirring power | 28 (4 x 7) W |
| Power settings | None (individually controlled per position) |
| Housing material | Stainless steel |
| Operating temperature | -10°C to +50°C (at 80% humidity) |
| Power supply | 100-240 V / 50-60 Hz / 1.5 A |
| Dimensions (WxDxH) | 245 x 425 x 38 mm |
| Protection class | IP65 |
| Shipping weight (gross) | approx. 9.1 kg |
| Part number | 30404 |
