High Pressure Reducer (Manifold)
Medical Gas High Pressure Reducer / Manifold
Medical Gas High Pressure Reducer / Manifold
The High Pressure Reducer (Manifold) unit reduces the pressure of gas coming from a collector mounted to medical gas cylinders. Gas pressure in the collectors (150 bar / 15 MPa / 2176 psi) is reduced to an appropriate delivery pressure of 4-7 bar for supply to patients and medical devices through pipeline systems. It is used wherever high pressure gas needs to be controlled and reduced to a service gas pressure range.
| الاستخدام | Full Automatic High Pressure Reducer Unit for medical gas pipeline systems |
|---|---|
| Input Pressure | Max. 220 Bar |
| Output Pressure | 4 - 7 Bar |
| Capacity | 150 m³/h |
| Input Points | 4 (Main ramp, Backup ramp, External supply, Emergency case supply unit) |
| Working Temperature | (+10) - (+45) °C |
| Power Supply | 220 V 50Hz |
| Length | 150-180 cm |
| Packaging Size | 118 x 67 x 24 cm |
| Packed Weight | 45 Kg |

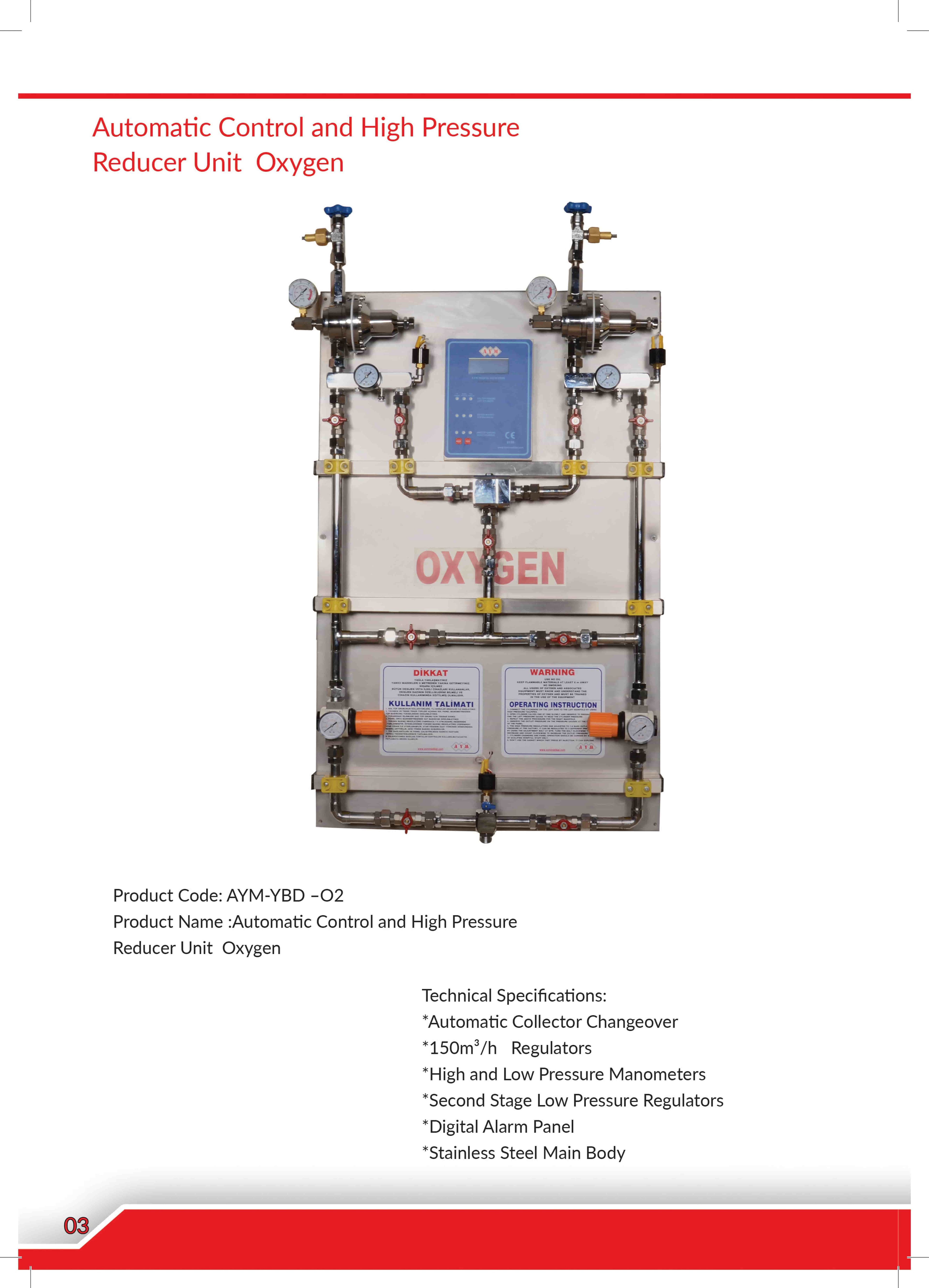

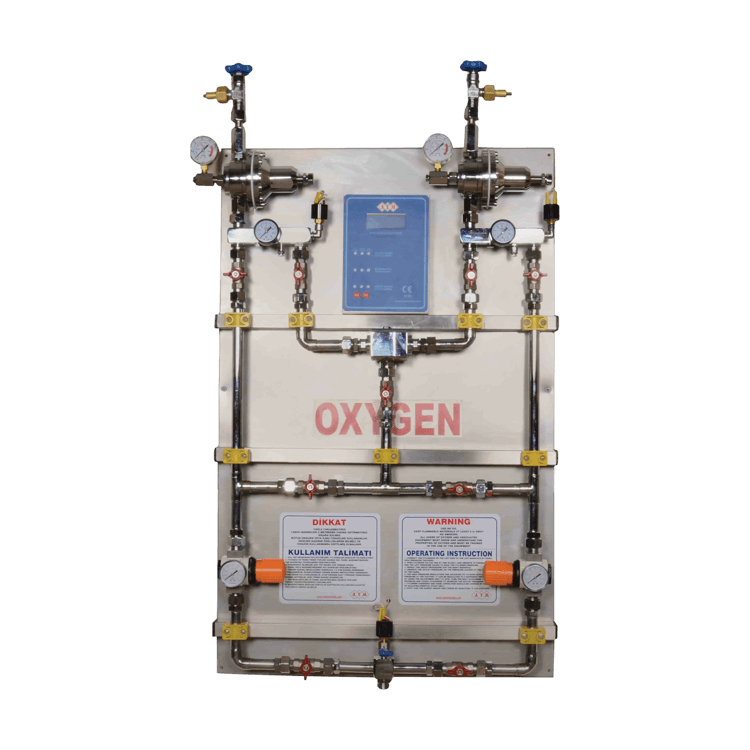

High pressure reducer manifold configured for oxygen (O2) gas service.

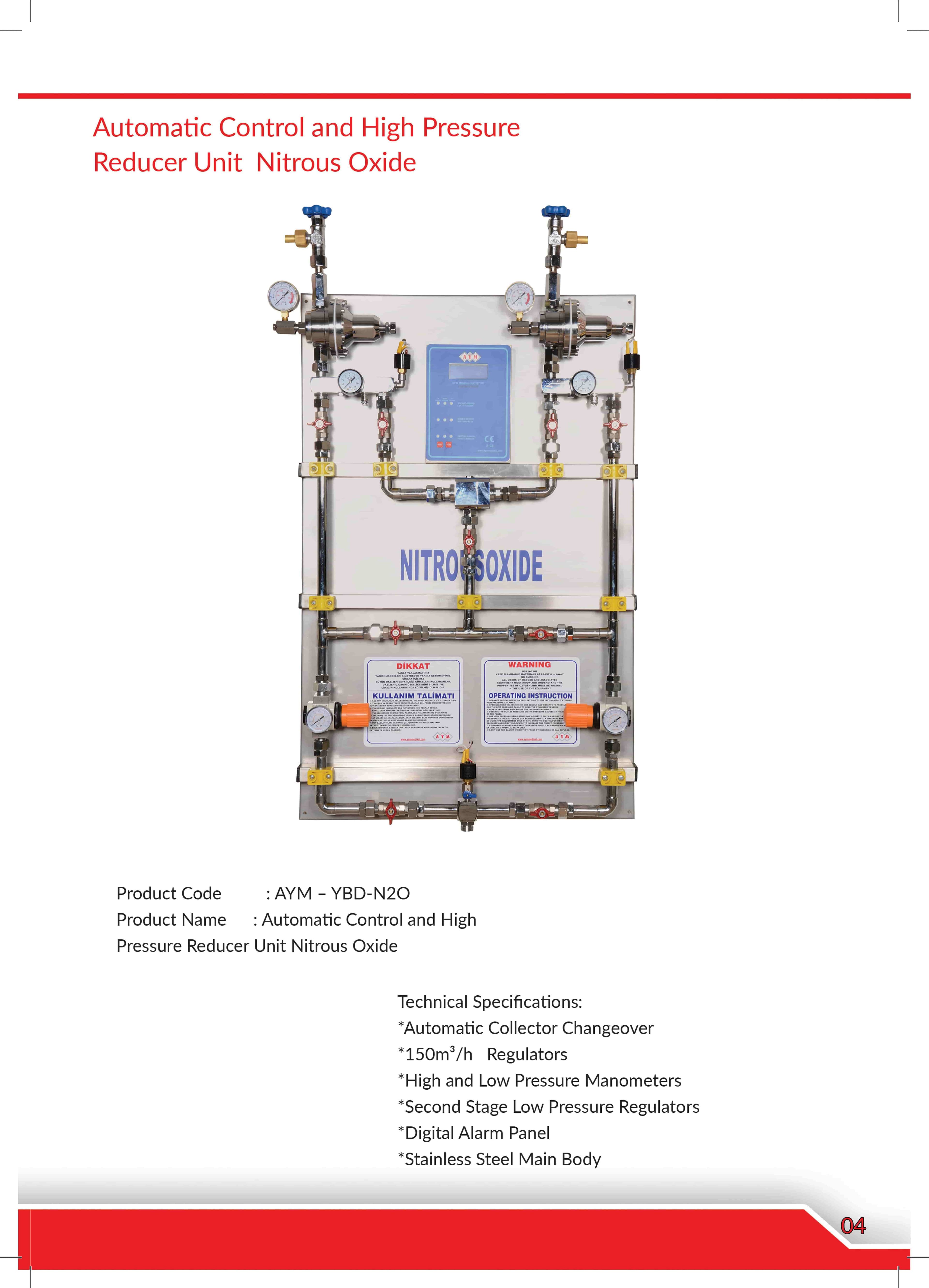

High pressure reducer manifold configured for nitrous oxide (N2O) gas service.
AGK Limited
تواصل مباشرةً مع AGK Limited لطلب الأسعار والعينات ومدد التوريد لـ High Pressure Reducer (Manifold).
| Alarm System | Digital LCD, Alarm, Sound |
|---|
