How long does it take for the heated stretcher pad to reach operating temperature?

The set temperature is reached within 2-3 minutes, provided the patient is lying on the pad. Note: the system is only effective when the patient is present, as heat accumulation otherwise occurs.

What power source is required?

The PAX TMS Power Pack (SKU 290000000) and PAX TMS 220 V Charger are required. These are sold separately.

How long does the battery last?

At -10 °C in the highest heating mode with an average 75 kg patient, the runtime is approximately 3.5 hours. Heavier patients result in longer runtime. Charge time is approximately 3 hours at 220 V.

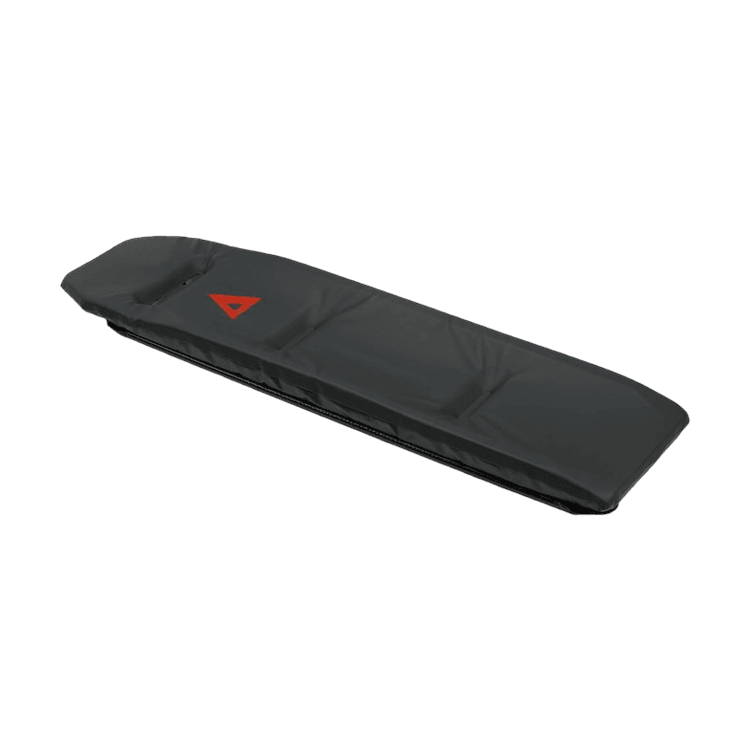

Heated Stretcher Pad (Tragenauflage)

Name: Heated Stretcher Pad (Tragenauflage)
Brand: PAX-Bags (X-CEN-TEK GmbH & Co. KG)

Heated Stretcher Pad (Tragenauflage) | PAX-Bags (X-CEN-TEK GmbH & Co. KG) | mytradeloop

تسجيل الدخول ابدأ الآن

الخيارات والملحقات

Stretcher model

Spencer STX 777+ · Spencer STX 779 · Stollenwerk · Stollenwerk CPS · Stryker M1 · Stryker Power Pro · Stryker Power Pro XT · Ferno Mondial · Ferno Viper · Kartsana BRAVA SILVER JUPITER

PAX TMS Power Pack (SKU 290000000)

Required battery pack for operating the heated stretcher pad

PAX TMS 220V Charger with Cable (SKU 290010000S)

Required charger for the TMS Power Pack

PAX TMS 220V Charger without Cable (SKU 290010000)

Alternative charger for the TMS Power Pack (cable not included)

الأسئلة الشائعة

نظرة عامة

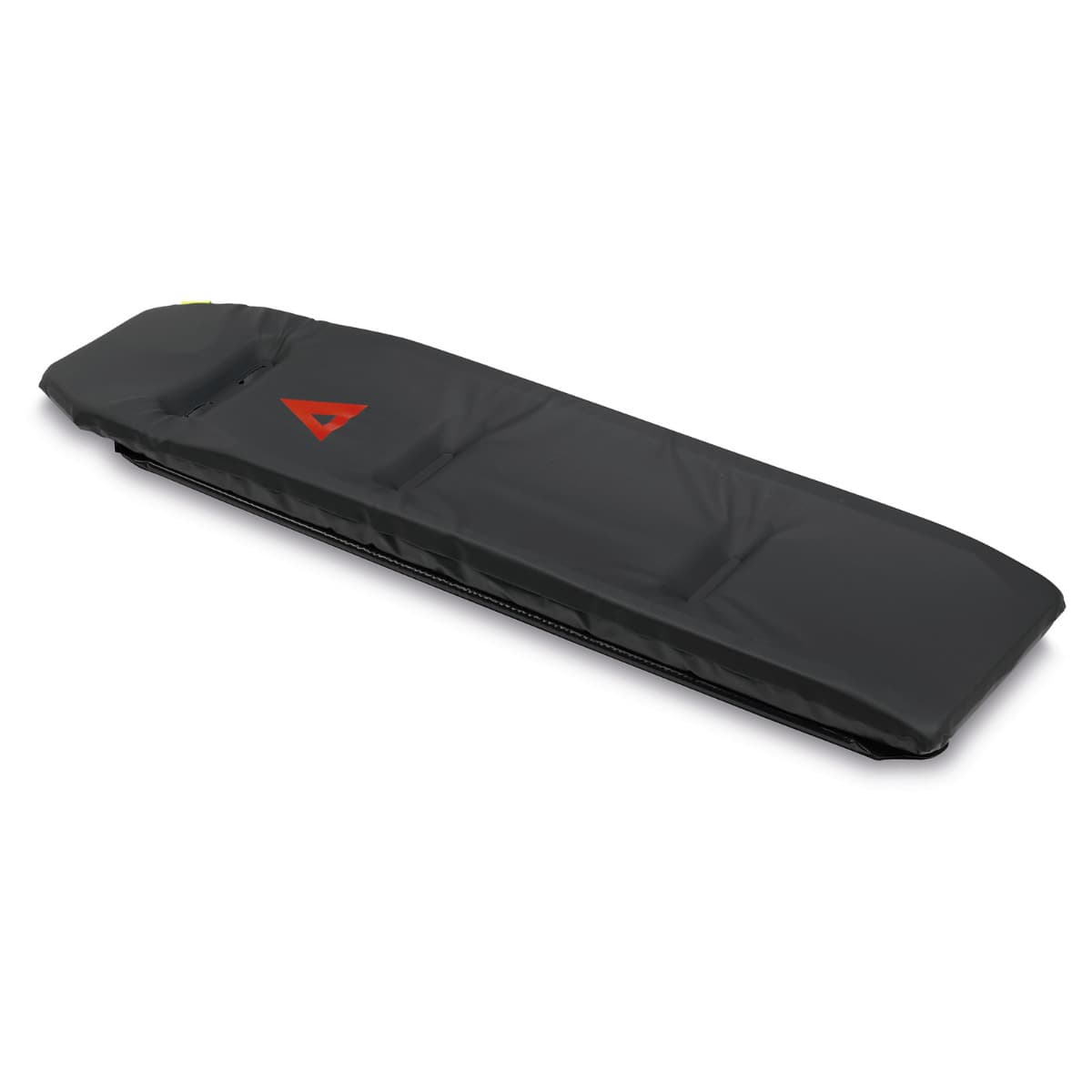

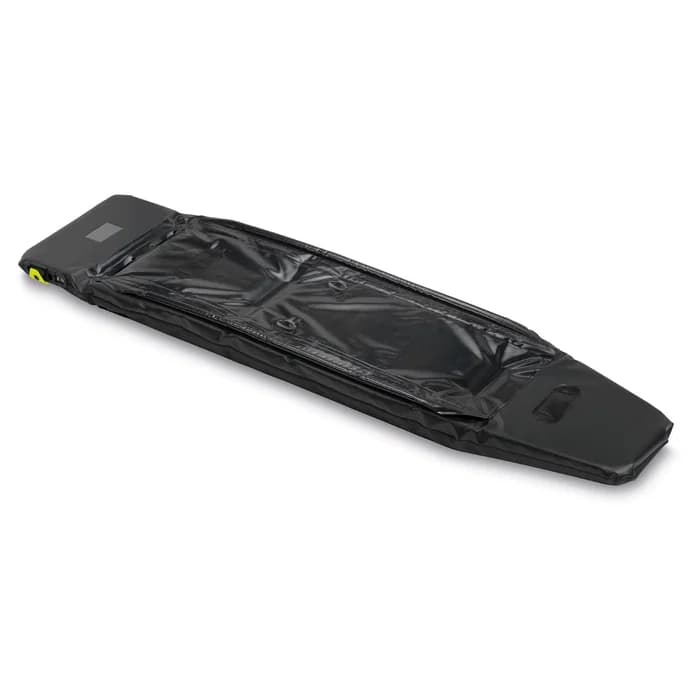

The PAX Tragenauflage TMS is a heatable stretcher mattress for patient transport in emergency vehicles. It attaches to the stretcher and is secured by the patient restraint system. The heating system can be activated before arriving at the scene, warming the surface to the patient's immediate benefit. Three heat settings are available (40 °C, 36 °C, 32 °C), and the system automatically shuts off after 45 minutes. Runtime at -10 °C is approximately 3.5 hours per charge; charging takes approximately 3 hours at 220 V. Ten stretcher-specific variants are available to fit leading ambulance stretcher models. Requires PAX TMS Power Pack and PAX TMS 220 V charger.

Fits 10 stretcher models
3 selectable heat settings 40.36.32 c
Automatic 45 minute shutoff safety feature
Pre warm before arriving at scene
Mdr certified medical device
Splash proof when closed

تواصل مع المُصنّع عرض الكتالوج

أبرز ميزات المنتج

Heatable stretcher mattress for comfortable supine transport
Attaches to ambulance stretchers; secured by patient restraint system
Three heat settings: 40 °C (maximum), 36 °C, 32 °C
Temperature reached within 2-3 minutes (patient must be lying on pad to avoid heat accumulation)
Automatic shutoff after 45 minutes
Battery indicator: green steady = full; green flashing = 75-35%; red steady = below 35% (approx. 2 × 45 min remaining); red flashing = system fault
Runtime at -10 °C: approx. 3.5 hours for average 75 kg patient in highest heating mode; longer for heavier patients
Charge time: approx. 3 hours at 220 V
Temperature monitored by sensors
Splash-proof when system is closed
RFID passive transponder (serialisation): note: not included per current SKU
Available in 10 stretcher-specific variants

تفاصيل المنتج

Dimensions: width
تسمية الشركة المصنّعة	PAX Tragenauflage TMS
الاستخدام	Medical device (EU MDR 2017/745)
Heat settings	40 °C (max), 36 °C, 32 °C
Time to reach target temperature	2-3 minutes (with patient on pad)
Auto-shutoff time	45 minutes
Runtime at -10 °C (75 kg patient, highest heat level)	approx. 3.5 hours
Charge time (empty battery, 220 V)	approx. 3 hours
Dimensions: thickness	10 cm
Dimensions: length	130-196 cm

التصنيف

التخصصات
التطبيقات
قابلية إعادة الاستخدام
النوع
نوع المريض
التكوين

المزايا التنافسية

Competitive Advantage

Available in 10 stretcher-specific variants to fit leading ambulance stretcher models including Stryker, Ferno, Spencer, Stollenwerk, and Kartsana
System can be pre-warmed before arrival at the patient, ensuring immediate comfort
Three selectable heat levels (40 °C / 36 °C / 32 °C) allow individualised temperature management
Automatic 45-minute shutoff protects against overheating
Splash-proof when system is closed for easy cleaning
Battery-level indicator guides users on remaining runtime before intervention
MDR-compliant medical device with EU Declaration of Conformity
