How does the system ensure patient safety in the event of a controller failure?

The system includes a mechanical thermal fuse and an automatic mechanical disconnection feature that triggers if the set temperature is exceeded or if a system malfunction is detected.

What is the voltage used for the patient pad?

The pad operates on a low supply voltage of 9-18V to ensure high operational safety.

Is the controller interface complex for medical staff?

No, the controller features a simple touchscreen interface where the operator only needs to set the desired operating temperature.

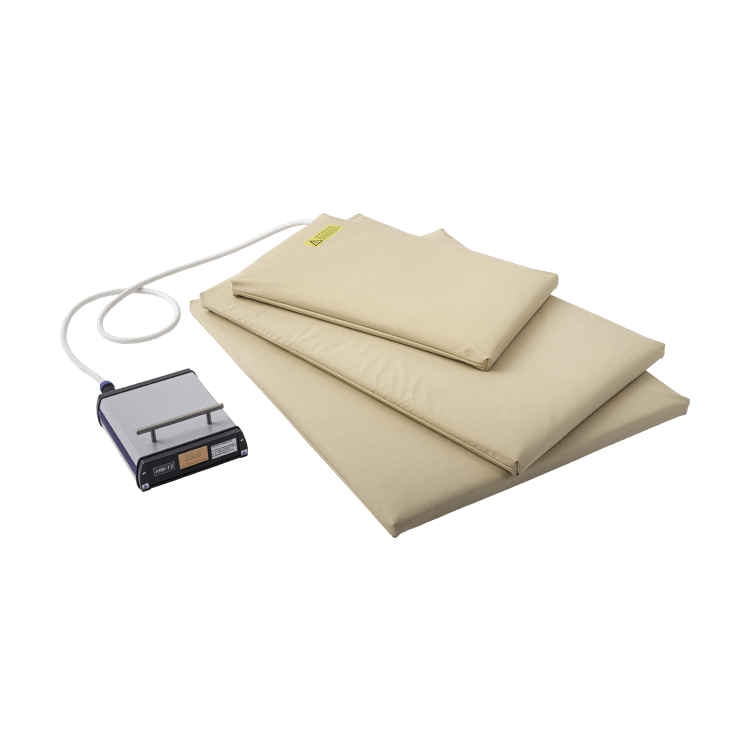

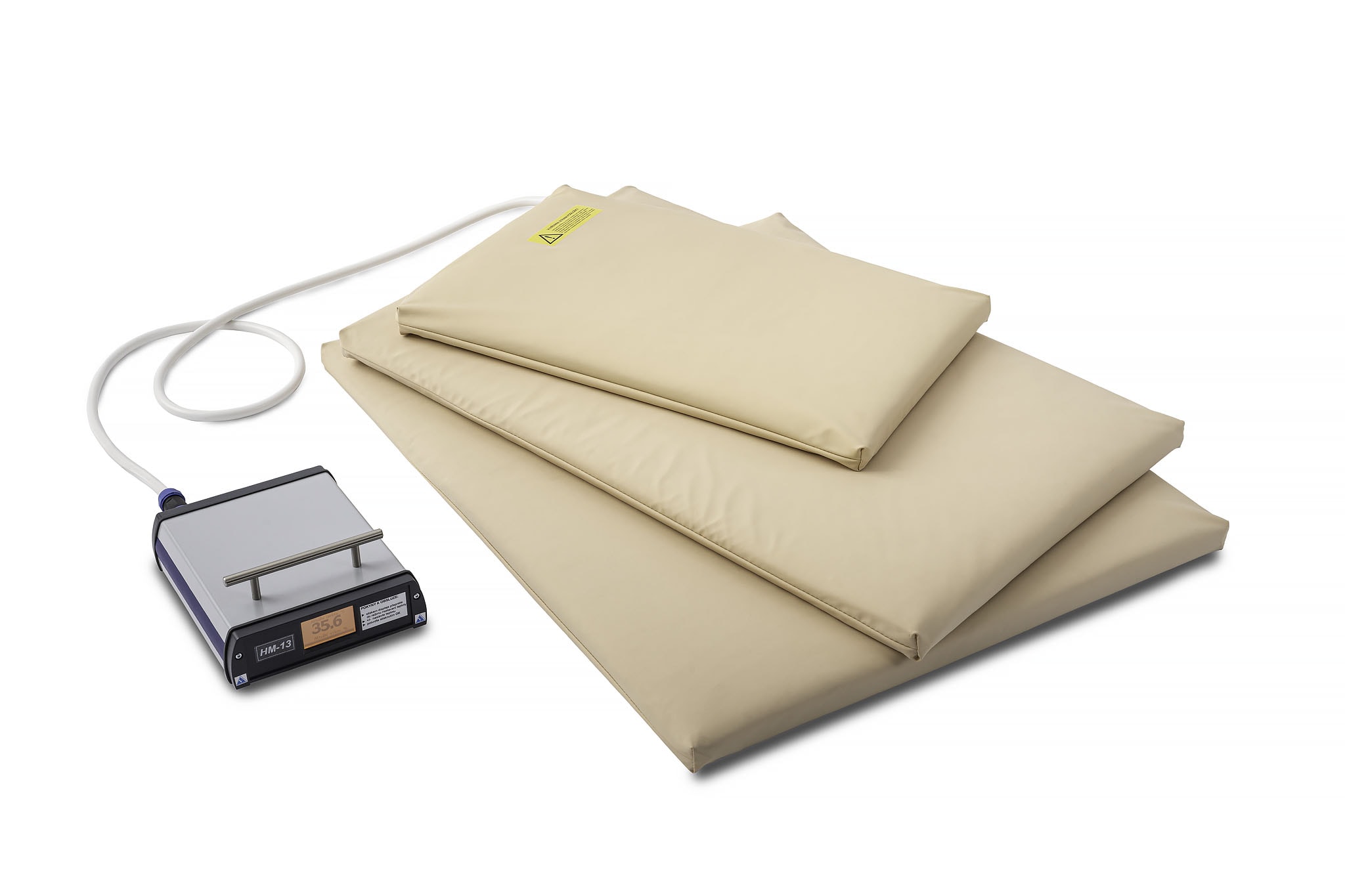

Heated Pad HM-13

Name: Heated Pad HM-13
Brand: ALFAMEDIC s.r.o.

Heated Pad HM-13 | ALFAMEDIC s.r.o. | mytradeloop

نظرة عامة

The HM-13 is a supplementary local heat source designed to manage hypothermic states in patients across various clinical settings. It features a unified design with an electronic temperature controller and a patient pad equipped with integrated sensors and a mechanical thermal fuse for enhanced safety.

18v low voltage
Touchscreen controlled
Mechanical thermal fuse

تواصل مع المُصنّع عرض الكتالوج

أبرز ميزات المنتج

Electronic temperature controller with intuitive touchscreen interface.
Integrated heating system with multiple temperature sensors.
Mechanical thermal fuse for patient protection against overheating.
Secure connection between controller and pad via plastic connector with locking nut.
Real-time diagnostic monitoring of circuit parameters.

تفاصيل المنتج

Instrument protection class	I
Temperature range	30-38 °C
Supply voltage	230/50 V/Hz
Pad supply voltage	9-18 V
Power input	max. 80 W
Weight of the regulator	2 kg

التصنيف

التخصصات
نوع المريض

المزايا التنافسية

Competitive Advantage

High operational safety provided by low 18V supply voltage to the pad.
Automatic mechanical disconnection of the heating system in case of malfunction or temperature overshoot.
Continuous visual and acoustic monitoring of system parameters and current temperature.

Clinical Indication

Hypothermic states in patients
Perioperative temperature management
Neonatal and pediatric warming
Intensive care and surgical support

1 من 5

الإصدار	Model Code	Dimensions (mm)
Heated Pad HM-13 MMedium-sized heated pad measuring 350 x 550 x 30 mm.	M	350 x 550 x 30
Heated Pad HM-13 SStandard-sized heated pad measuring 500 x 800 x 30 mm.	S	500 x 800 x 30
Heated Pad HM-13 GLarge-sized heated pad measuring 650 x 800 x 30 mm.	G	650 x 800 x 30

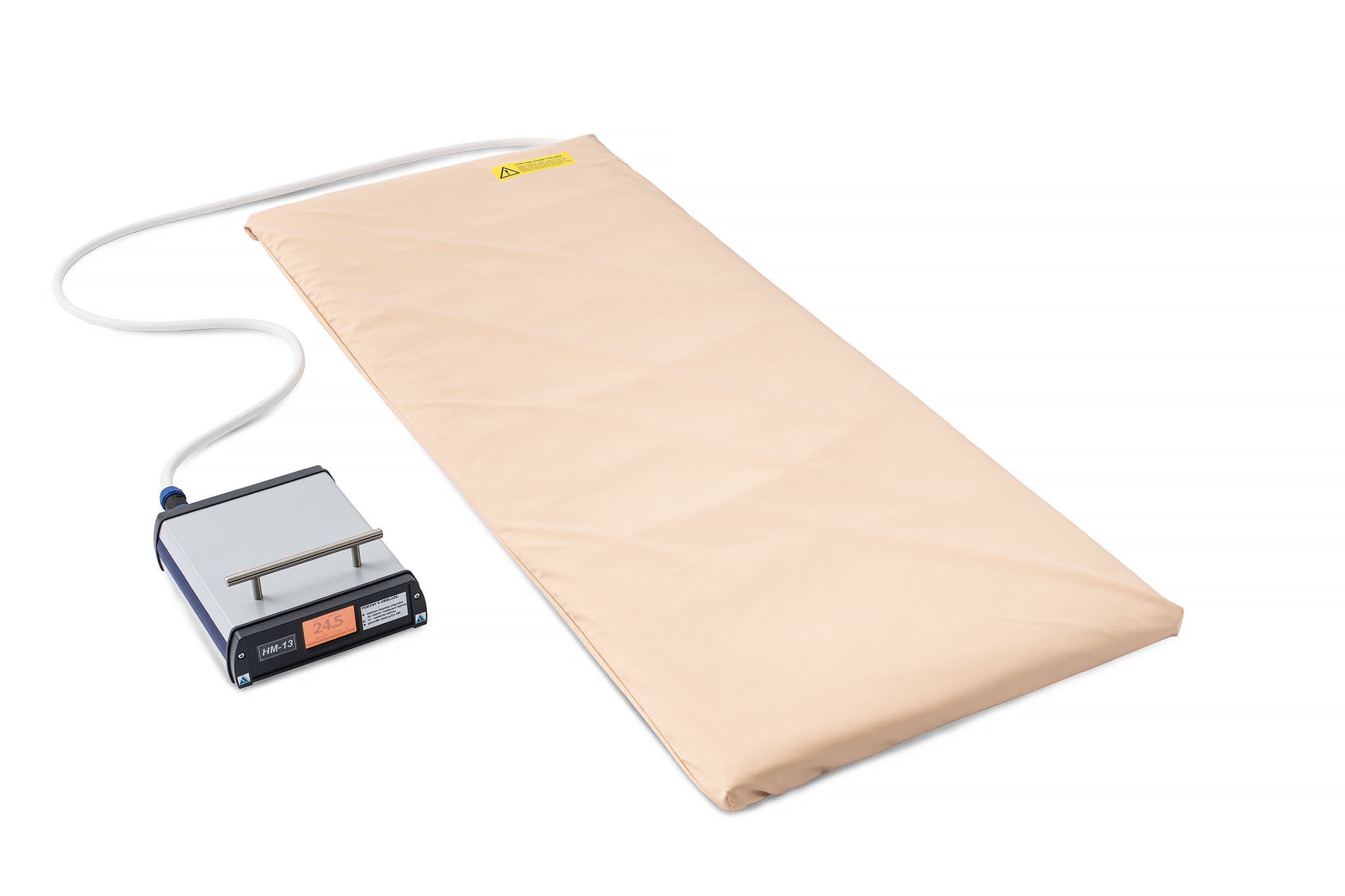

Heated Pad HM-13 VExtended-sized heated pad measuring 500 x 1200 x 30 mm.	V	500 x 1200 x 30

الإصدارات

المستندات

Heated Pad HM-13 Spec Sheet

MINI / MINI2 Neonatal Bed Spec Sheet

ALFANEST Neonatal Bed Brochure

Heated Pad HM-13 Spec Sheet
